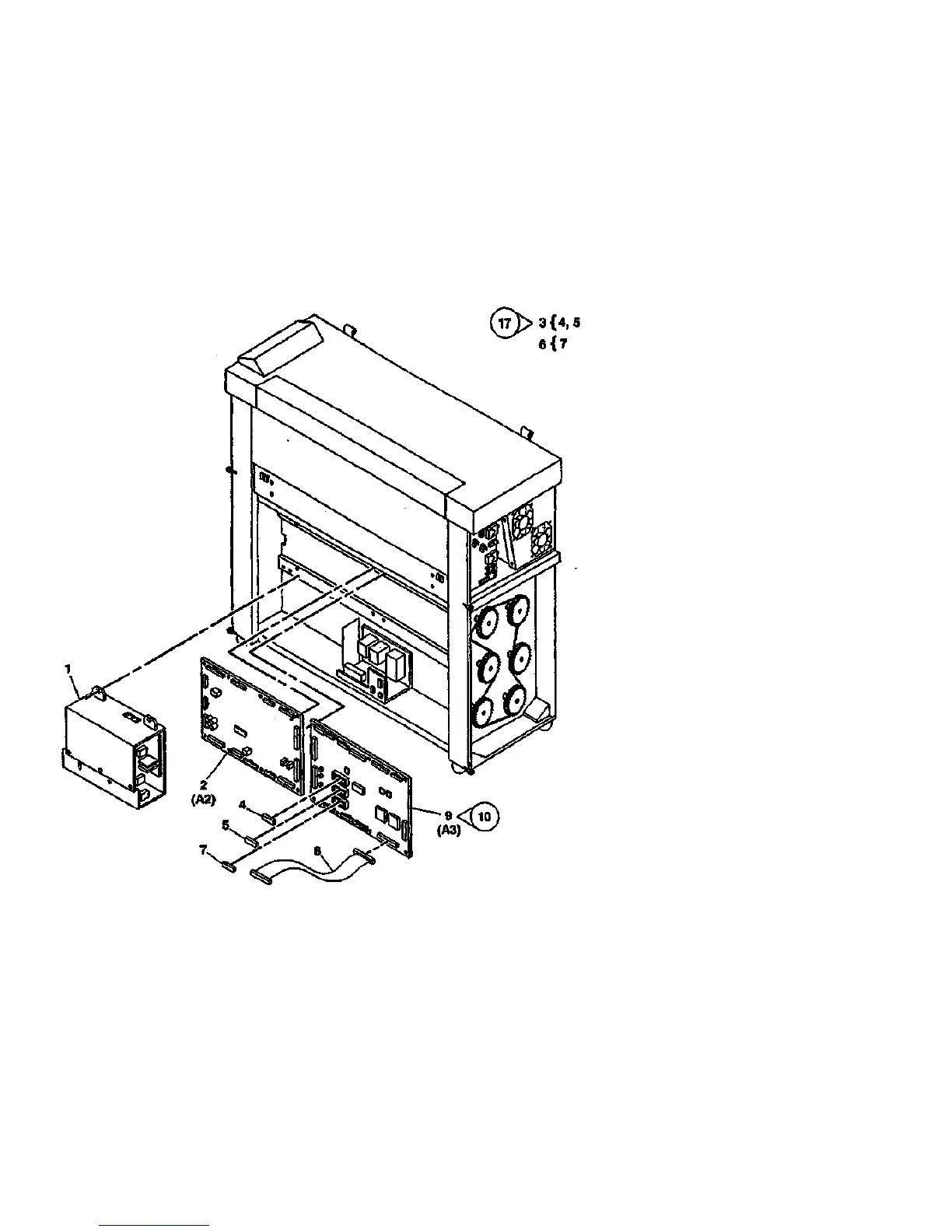

PL 1.1 ELECTRICAL CONTROL COMPONENTS/DC POWER GEN-
ERATION
ITEM
1
2
3
4
5
6
7
.
8
9
PART
105K15862
160K33322
600K59935
600K59955
..
..
..
537K51150
537K51160
162K29730
160K30285
DESCRIPTION
DC LOW VOLTAGE
POWER SUPPLY
DRIVER PWB (A2)
CIRCUIT ASSEMBLY KIT
(NACO) (TAG 4, 16,17)
CIRCUIT ASSEMBLY KIT
(EO) (TAG 4,16,17)
CONTROL EPROM
(P/O ITEM 3)
LANGUAGE EPROM NO. 1
(P/O ITEM 3)
LANGUAGE EPROM NO.2
KIT (NOT SPARED)
AO PORTUGUESE
LANGUAGE EPROM
AO SPANISH
LANGUAGE EPROM
CONTROLLER CONNECTOR
(SEE NOTE)
MAIN PWB (A3)
(W/TAG 3, 10)
(REP 3.1)
NOTE 1: CABLE SUPPLIED FOR NON-IMBEDED CONTROLLERS ONLY.
0000001B ANO
PARTS LIST SECTION
PL 1.1
9/97
