M N
Check the Stall Sensor Cable for continuity.
The cable has continuity
Y N
Replace the cable.
Replace the Stall Sensor Assembly.
If the problem still exists, replace the Control PWB.
Perform ADJ 4.1.2 Calibrate Document Registration.
Remove the Left Side Panel (REP 4.1.1).
Loosen the 2 Mounting Screws (Figure 4).
Adjust the position of the Motor Assembly to tighten the Main Drive Belt.
Tighten the 2 mounting screws.
Motor
Assembly
Stall Sensor
Assembly
Mounting
Screw (2)
Stall Sensor
Cable
Power
Distribution
PWB
0001024A-C0B

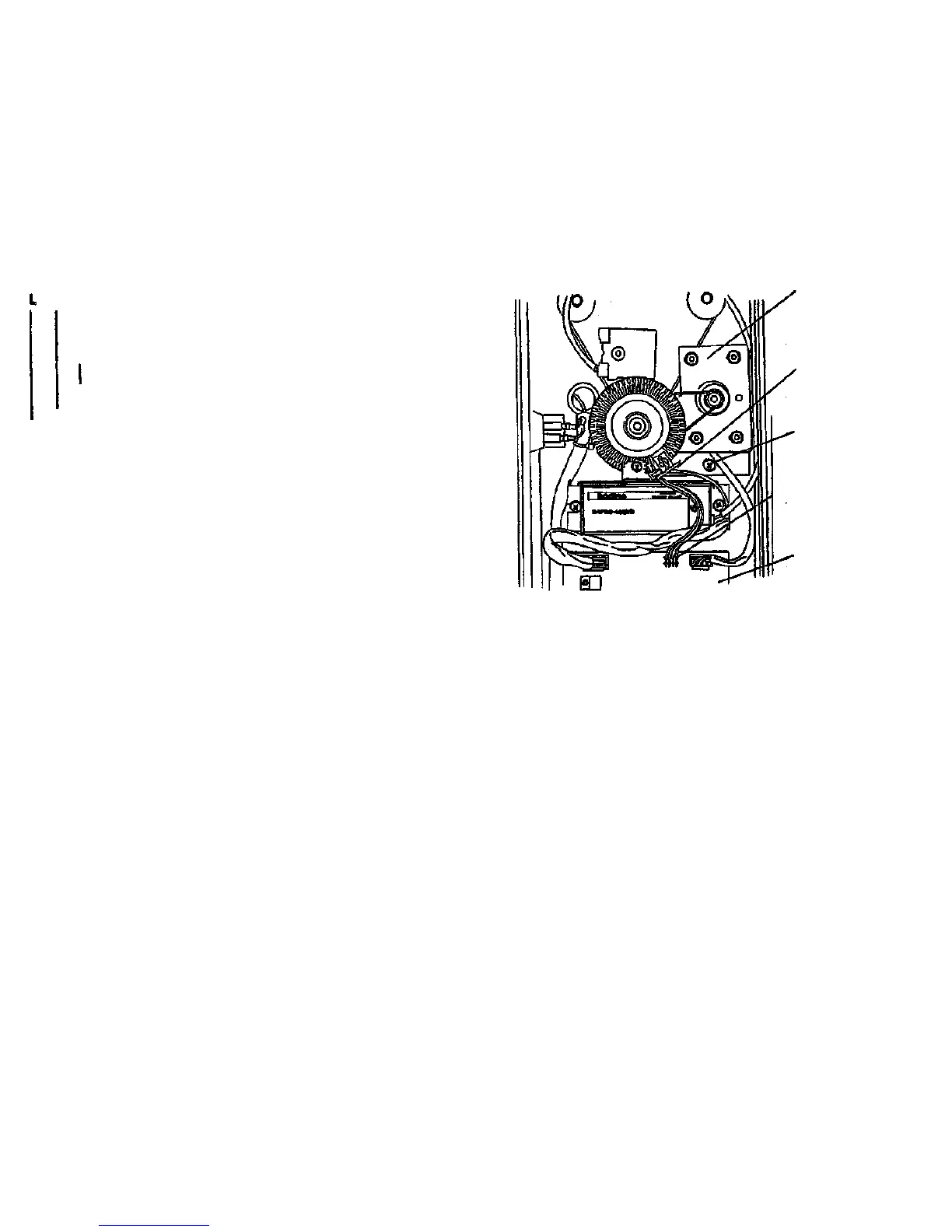

Figure 4. Motor Assembly
1.4 Document Drive RAP
4/97
2-18
