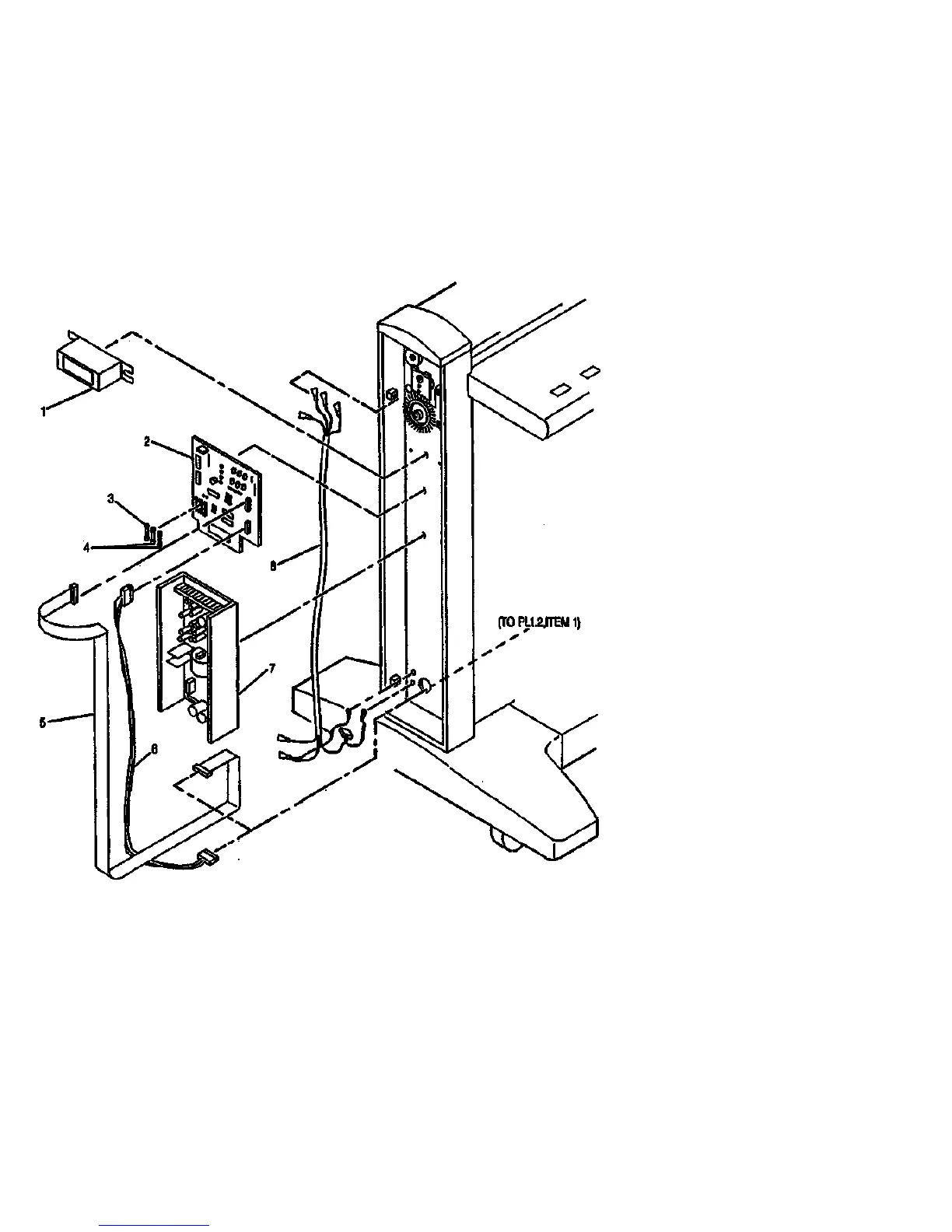

PL 1.1 ELECTRICAL COMPONENTS (PART 1 OF 2)
ITEM
1
2
3
4
5
6
7
8
PART
104N23
140N4719
108N330
108N331
112N104
152N1552
105N1134
152N1553
DESCRIPTION
LAMP BALLAST
(HEP 4.1.14)
POWER DISTRIBUTION PWB
(REP 4.1.15)
FUSE (4AMP)
FUSE (2AMP)
LAMP AND MOTOR CABLE
DC POWER HARNESS
POWER SUPPLY
(REP 4.1.16)
POWER ENTRY HARNESS
PARTS LIST SECTION
PL 1.1
12/96
5-4
7356
