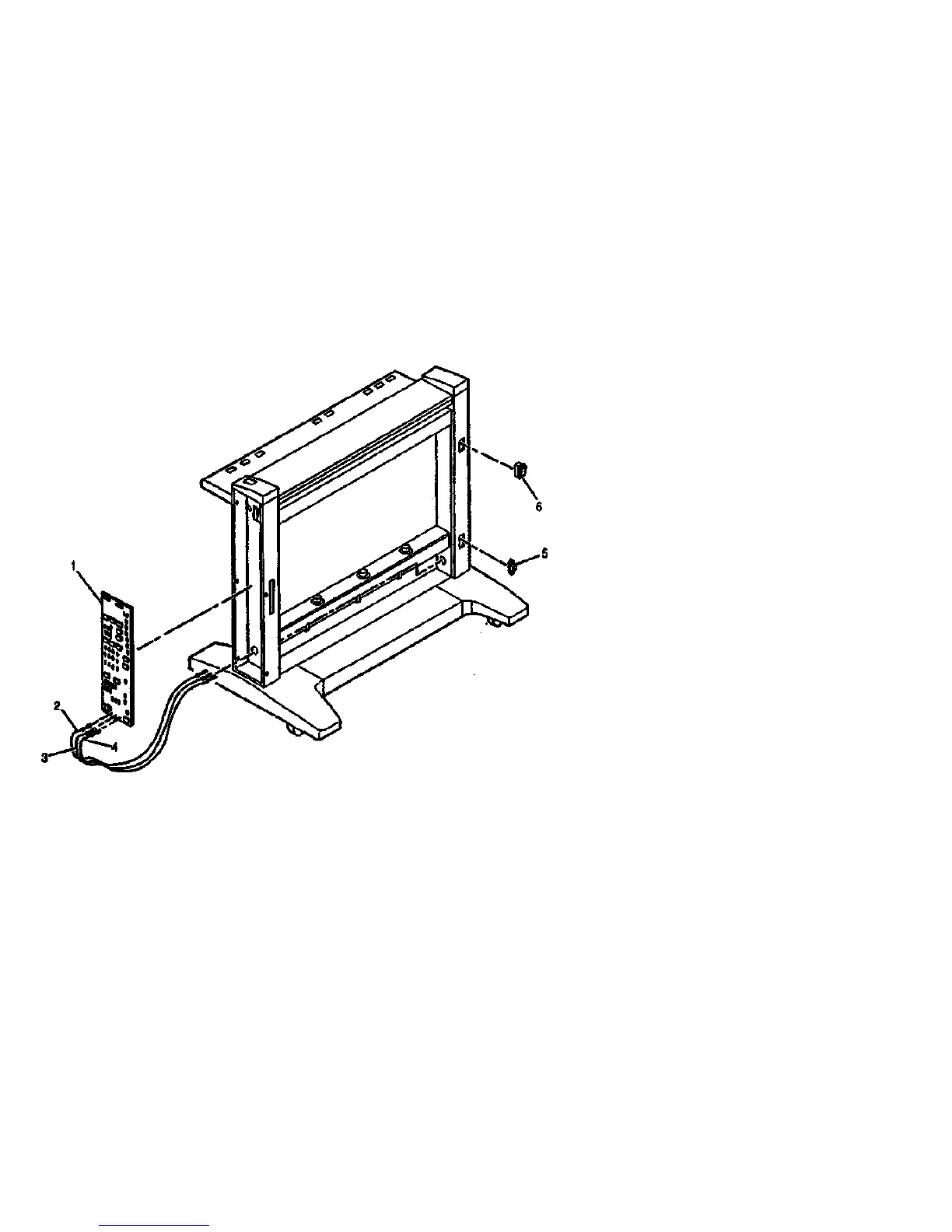

PL 1.2 ELECTRICAL COMPONENTS (PART 2 OF 2)
ITEM
1
2
3
4
5
6
PART
117N1139
117N1138
117N1137
109N254
110N733
DESCRIPTION
CONTROL PWB
(REP 4.1.10, ADJ 4.1.1
4.1.2 4.1.4 4.1.5}
CAMS VIDEO CABLE
(REP 4.1.19)
CAM2 VIDEO CABLE
(REP 4.1.19)
CAM1 VIDEO CABLE
(REP 4.1.19)
POWER ENTRY MODULE
POWER SWITCH
7358
12/97
5-5
PARTS LIST SECTION
PL 1.2
