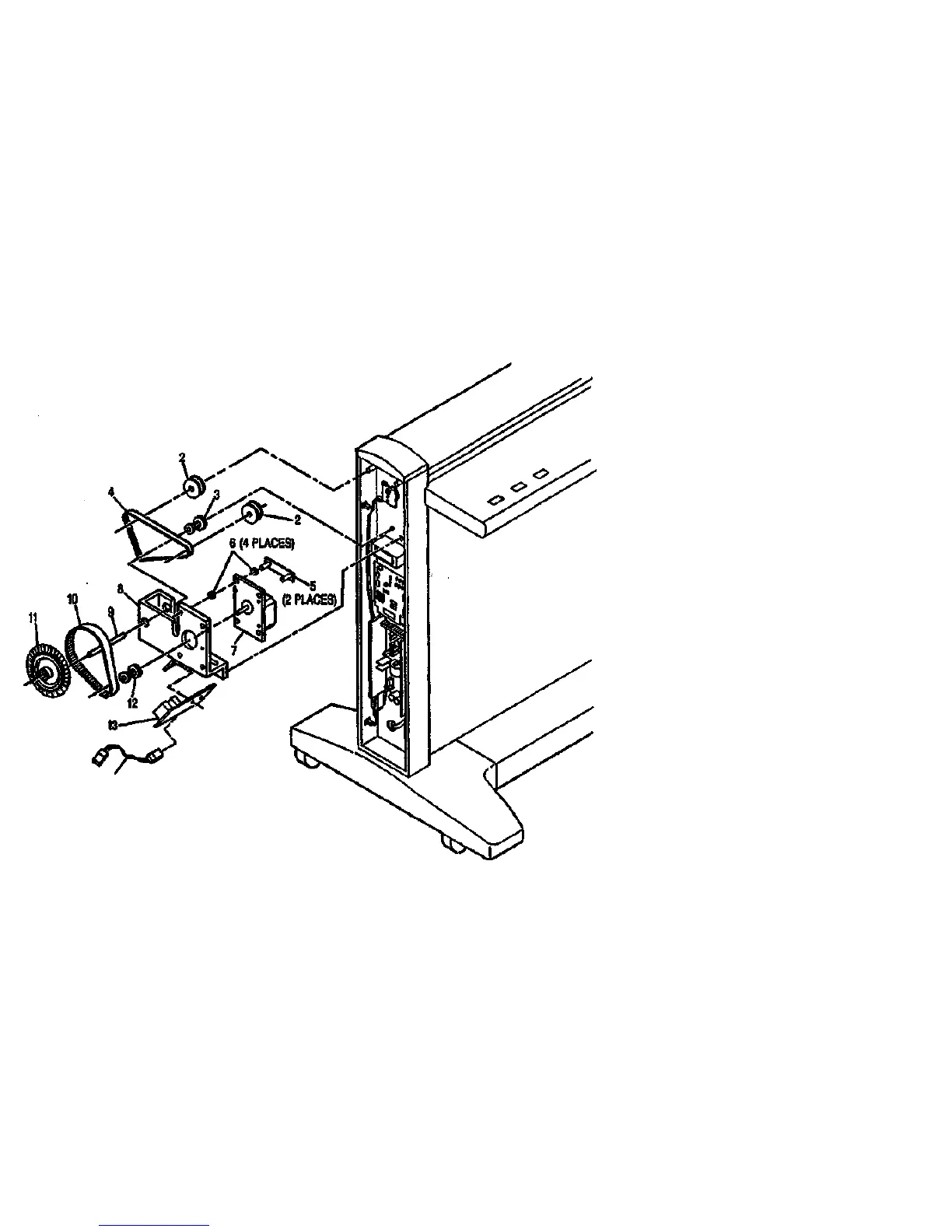

PL 4.1 MAIN DRIVE MOTOR ASSEMBLY
1 -{
3.
5 -14
14
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART
127N784
20N279
—
23N369
••
••
--
..
-
~
—
130N702
120N233
DESCRIPTION
MAIN DRIVE MOTOR
ASSEMBLY (REP 4.1.12)
DOCUMENT DRIVE PULLEY
PULLEY (P/O ITEM 1)
MAIN DRIVE BELT
(REP 4.1,12)
STUD PLATE (P/O ITEM 1)
GROMMET (P/O ITEM 1)
MOTOR (P/O ITEM 1)
MOTOR BRACKET
(P/O ITEM 1)
SHAFT (P/O ITEM 1)
BELT (P/O ITEM 1)
ENCODER WHEEL
(P/O ITEM 1)
(REP 4.1.13)
PULLEY (P/O ITEM 1)
STALL DETECT SENSOR
(REP 4.1.13)
STALL SENSOR CABLE
PARTS LIST SECTION
PL 4.1
12/96
5-6
7356
