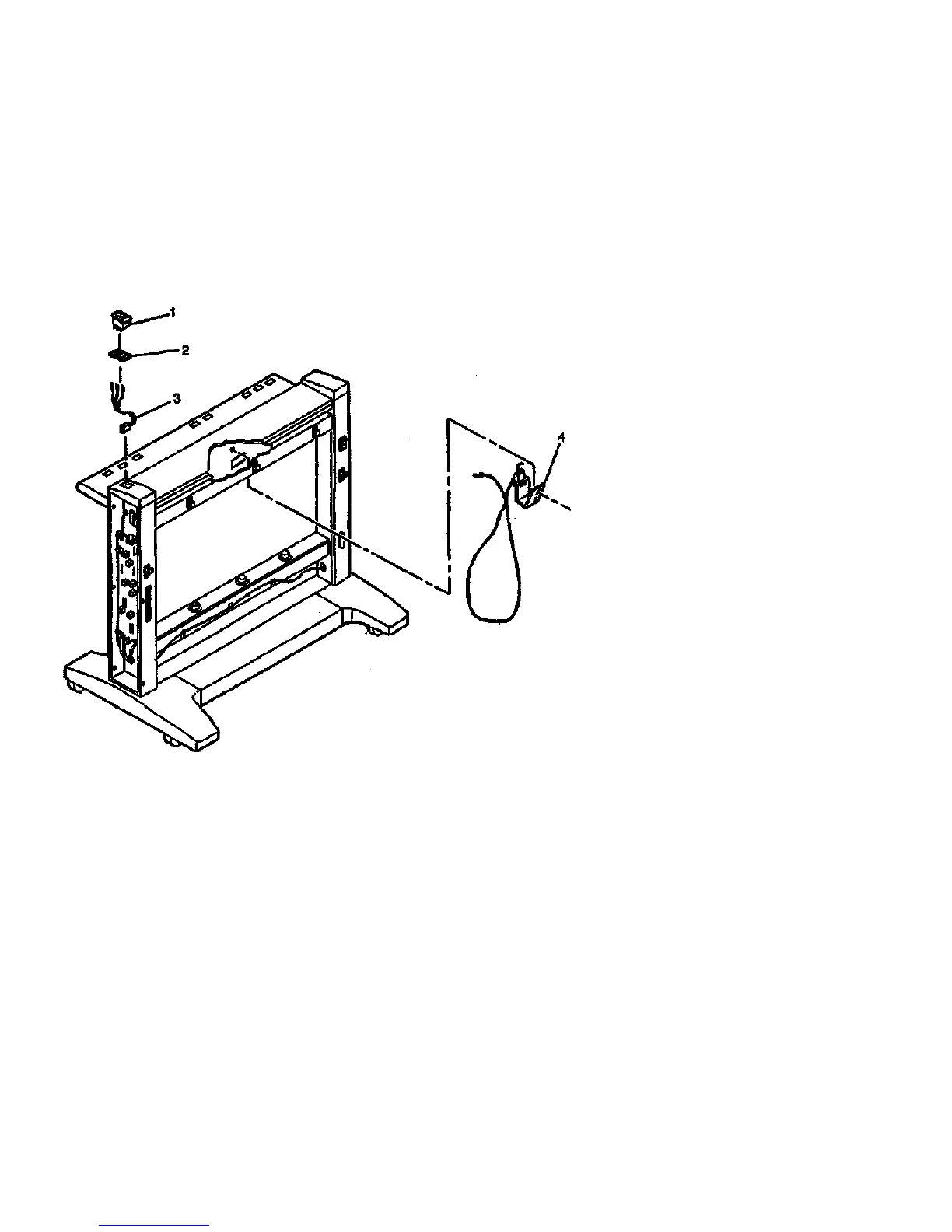

PL 5.2 DOCUMENT SWITCH AND SENSOR
ITEM PART
1 110N732
2 56N128
3 117N1136
4 130N771
DESCRIPTION
FORWARD/REVERSE SWITCH
(REP 4.1.11)
BEZEL
FORWARD/REVERSE CABLE
EDGE PRESENT SENSOR
(REP 4.1.6, ADJ 4.1.2)
OO0O005C-SCH
PARTS LIST SECTION
PL 5.2
12/97
5-8
7356
