6-25
ColorQube® 9303 Family
GP 7
General Procedures/Information

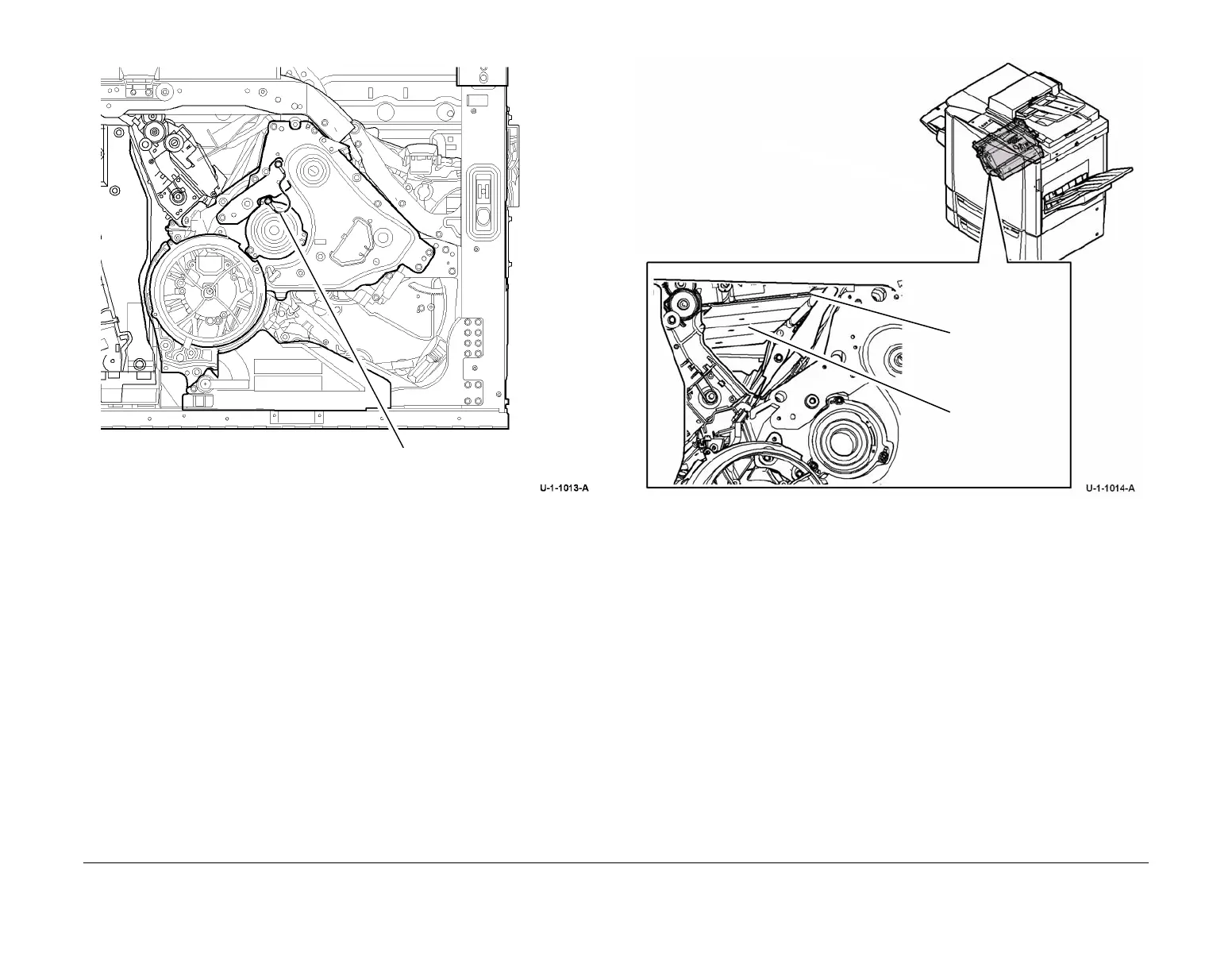

Figure 4 Transfix roller
Registration / Preheat assembly
Figure 5, open the registration / pre heat jam hatch by rotating the gear until the hatch is
unlocked. Check for continuity of less than 10 Ohms between each preheat plate and the
machine base.
Figure 5 Preheat plates
Figure 6, to improve continuity, remove, clean the contact faces and re-install the follow-
ing:
Ground connection to rear outer frame, Figure 6.
Internal ground connections of registration / preheat assembly, Figure 7.
Transfix roller ground wire.
Preheat plates
1
Lift the hatch.
