Marking Unit
• Figure 8 and Figure 9, marking unit enclosure. Check for continuity of less than 10 Ohms
between the enclosure and the machine base. To improve continuity, disconnect the ter
-
minals, clean the contact faces and re-assemble.

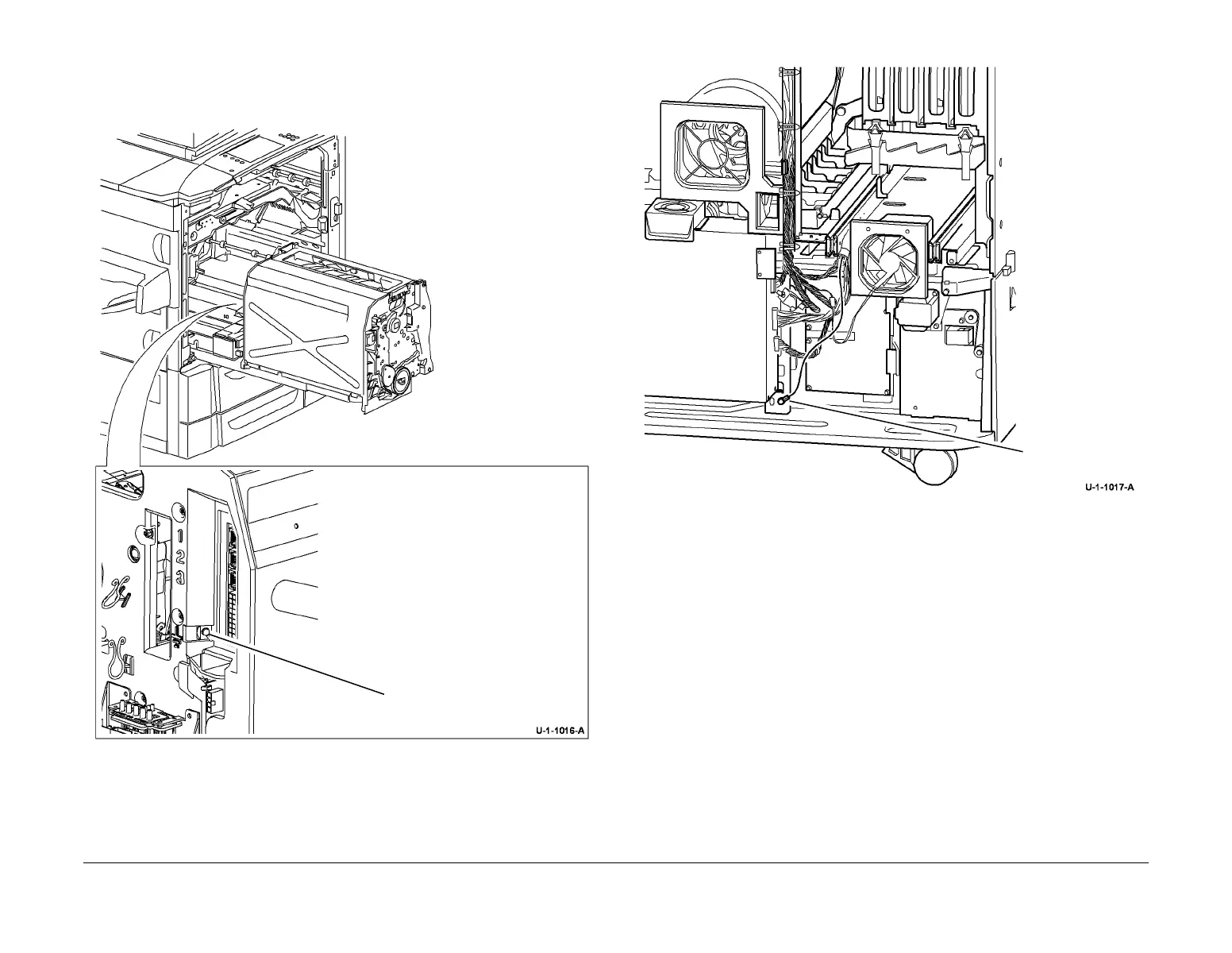

Figure 8 Marking unit enclosure ground
Figure 9 Marking unit machine ground
• Figure 10, upper carriage. Check for continuity of less than 10 Ohms between the upper
carriage and the machine base. To improve continuity, disconnect the terminals, clean the
contact faces and re-install.
Ground contact
Ground contact
