April 2010
4-43
Phaser 3635MFP/WorkCentre 3550
REP 28.2, REP 28.3
Repairs and Adjustments
10. Remove the outbin assembly, Figure 2.

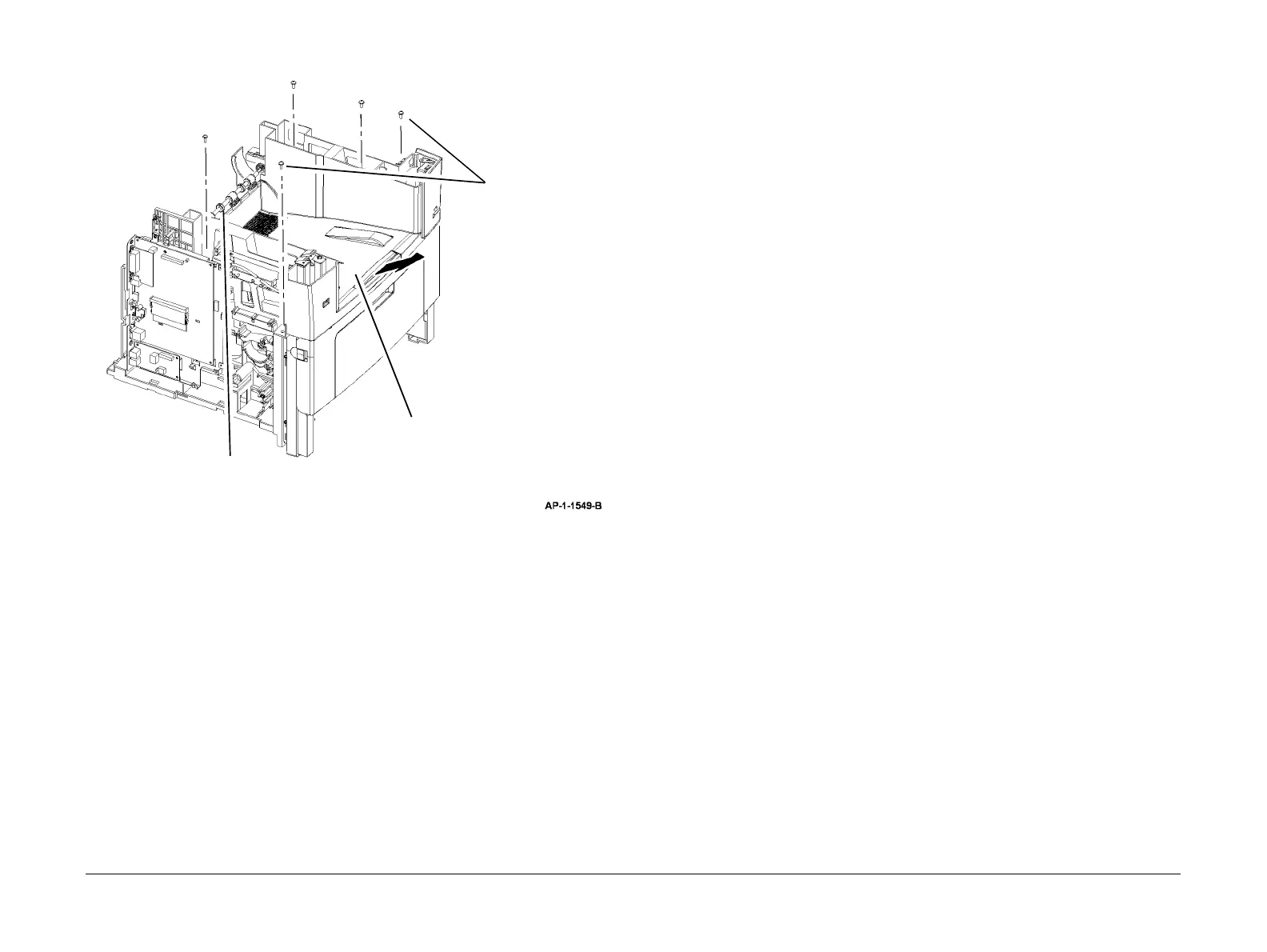

Figure 2 Outbin assembly removal
Replacement
1. Replacement is the reverse of the removal procedure.
REP 28.3 Front Mid Cover
Parts List on PL 28.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to GP 10 General Disassembly Precautions.
1. Remove the DADF, PL 5.10 Item 1.
2. 3635 only. Remove the UI assembly, REP 2.1.
3550 only. Remove the UI assembly, REP 2.3.
3. Remove the left cover, right cover and rear cover, REP 28.1.
4. Remove the scanner assembly, REP 14.1.
5. Remove the front cover assembly, PL 28.10 Item 7.
6. Remove the 9 screws that secure the outbin assembly, refer to REP 28.2.
7. Remove the 4 screws that secure the front mid cover, PL 28.10 Item 6.
8. Carefully lift the front of the outbin assembly, then remove the front mid cover.
Replacement
1. Replacement is the reverse of the removal procedure.
1
Remove 5 screws.
2
Remove the outbin assembly
towards the front of the
machine.
Exit roll and idlers
