Xerox WorkCentre 3550 - Parts Lists; PL 10.30 Exit Cover Assembly

April 2010
5-33
Phaser 3635MFP/WorkCentre 3550
PL 10.30
Parts Lists

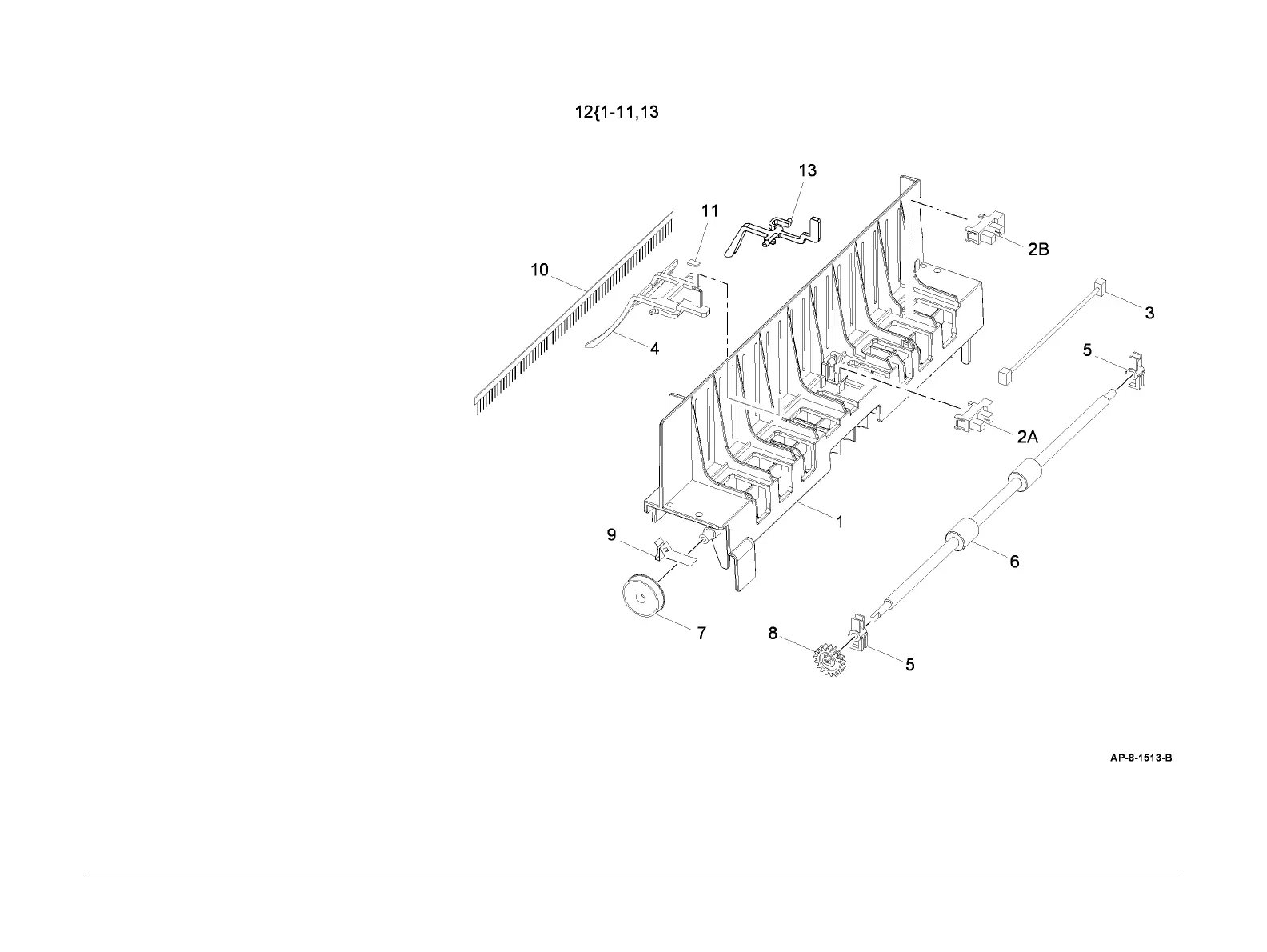

PL 10.30 Exit Cover Assembly
Item Part Description
1 – Exit cover (P/O PL 10.30 Item 12)
2 130N01601 Out bin full sensor (A) (Q08-720),
Paper width sensor (B) (3550 only)
3 – Out bin full sensor harness (P/O PL
10.30 Item 12)
4 120N00517 Out bin full sensor actuator
5 – Transport roll holder (P/O PL 10.30
Item 12)
6 – Transport roll (P/O PL 10.30 Item
12)
7 – Transport roll idler gear (P/O PL
10.30 Item 12)
8 – Transport roll gear (P/O PL 10.30
Item 12)
9 – Ground strip (P/O PL 10.30 Item
12)
10 125N00094 Static eliminator
11 – Damper (P/O PL 10.30 Item 12)
12 002N02714 Exit cover assembly (Complet)e
(3635)
– 002N02971 Exit cover assembly (Complet)e
(3550)
13 120N00535 Paper width sensor actuator (3550)
