Xerox WorkCentre 3550 - PL 2.11 User Interface (3550)

April 2010
5-6
Phaser 3635MFP/WorkCentre 3550
PL 2.11
Parts Lists

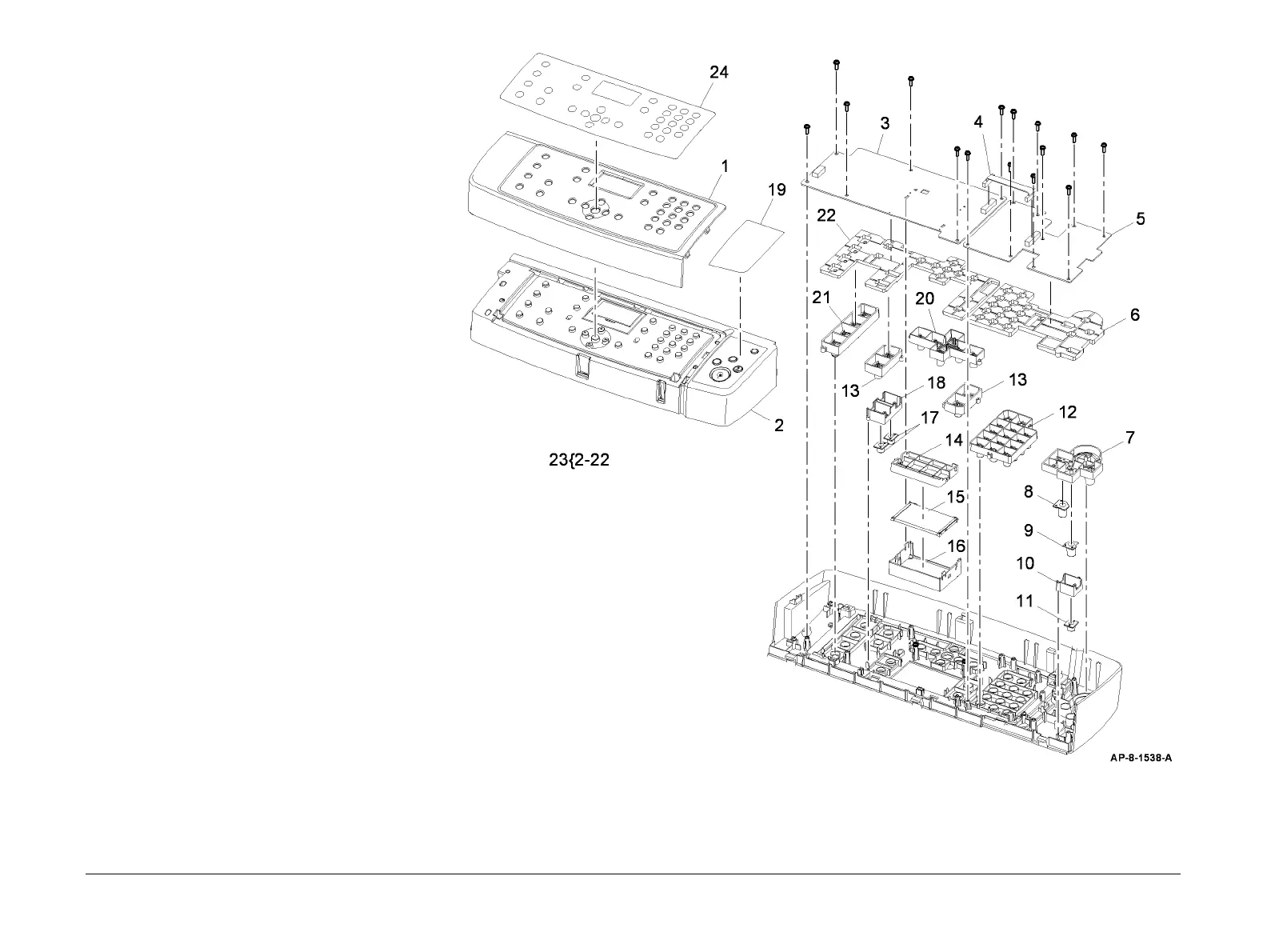

PL 2.11 User Interface (3550)
Item Part Description
1 – Front cover panel (Not Spared)
2 – Housing (P/O PL 2.11 Item 23)
3 140N63455 UI PWB
4 – Key harness (P/O PL 2.11 Item 23)
5 140N63454 Right keys PWB
6 029N00413 Rubber key mat (right hand sid)e
7 029N00411 Start key
8 029N00408 Job interrupt key
9 029N00416 Clear all key
10 029N00407 Power saver key housing
11 029N00406 Power saver key
12 029N00405 Numerical keys
13 029N00409 Address book, Manual Dial key,
Paper Supply, 2 Sided keys
14 – LCD screen housing (P/O PL 2.11
Item 23)
15 – LCD screen (P/O PL 2.11 Item 23)
16 – LCD screen cover (P/O PL 2.11
Item 23)
17 029N00415 Job Status, Machine Status keys
18 – Job Status, Machine Status keys
holder (P/O
PL 2.11 Item 23)
19 700N00205 Label (French)
– 700N00213 Label (Spanish)
20 029N00410 Navigation keys
21 029N00414 Copy, E-mail, FAX, Scan keys
22 029N00412 Rubber key mat (left hand sid)e
23 123N00255 UI assembly (Complet)e (110V)
(
REP 2.3)
– 123N00256 UI assembly (Complet)e (220V)
(
REP 2.3)
24 – Label (French) (Not Spared)
– – Label (Symbol) (Not Spared)
