Xerox WorkCentre 3550 - PL 7.10 Bypass Feed Assembly (1 of 2)

April 2010
5-17
Phaser 3635MFP/WorkCentre 3550
PL 7.10
Parts Lists

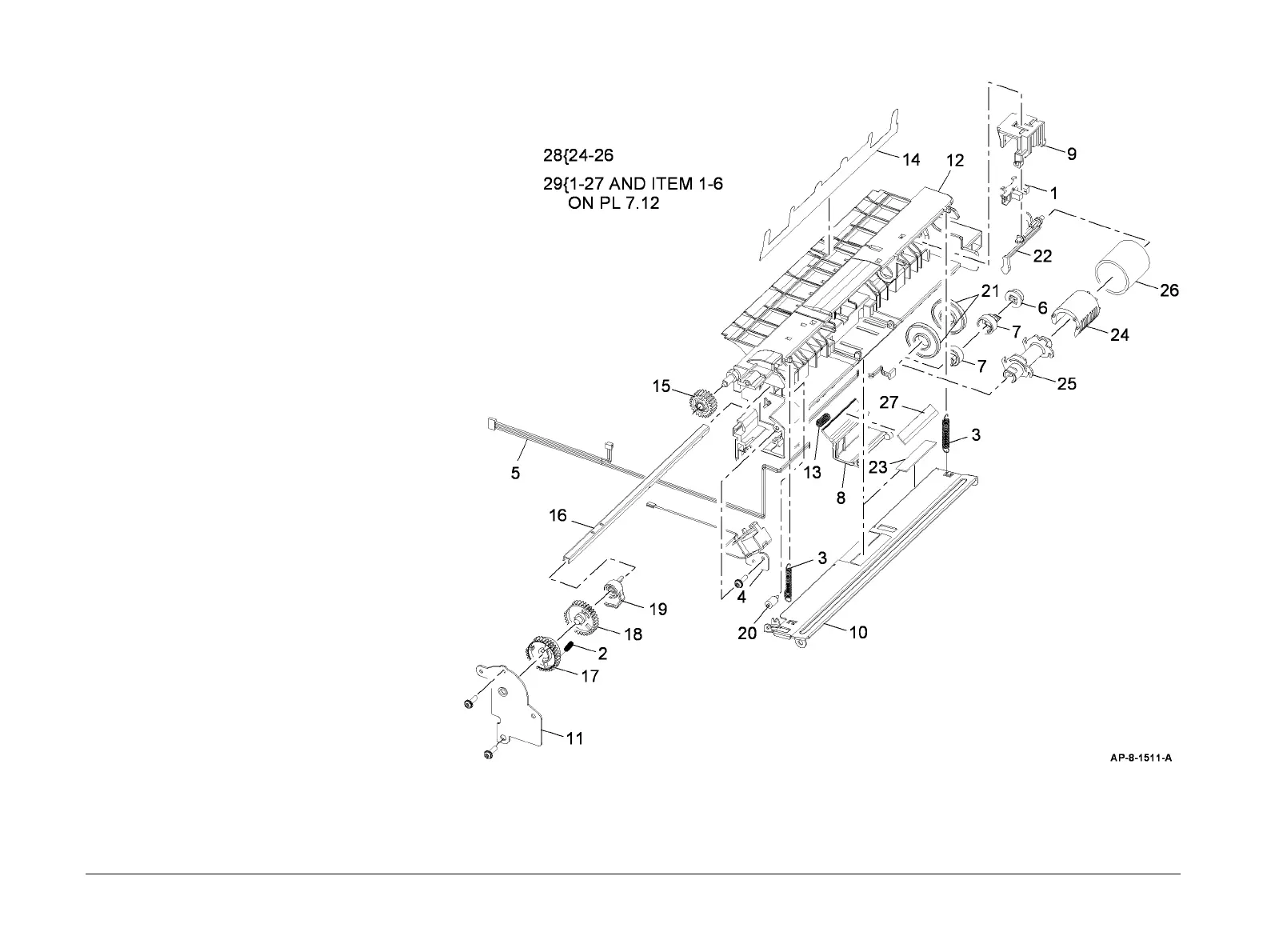

PL 7.10 Bypass Feed Assembly (1 of
2)
Item Part Description
1 130N01601 Bypass paper empty sensor (Q07-
510) (
REP 7.5)
2 – Clutch spring (Not Spared)
3 – Baffle lift spring (Not Spared)
4 – Bypass feed solenoid (SOL08-800)
(Not Spared)
5 – Bypass paper empty sensor
harness (Not Spared) (
REP 7.1)
6 – Bush (Not Spared)
7 – Locking collar (Not Spared)
8 – Retard pad holder (Not Spared)
9 – Sensor bracket (Not Spared)
10 – Baffle (Not Spared)
11 – Pickup bracket (Not Spared)
12 – Frame (Not Spared)
13 – Spring (Not Spared)
14 – Guide mylar (Not Spared)
15 – Idler gear (Not Spared)
16 – Pickup shaft (Not Spared)
17 – Clutch (rear) (Not Spared)
18 – Clutch (front) (Not Spared)
19 – Pickup cam (Not Spared)
20 – Cam roll (Not Spared)
21 – Pickup idler (Not Spared)
22 – Bypass paper empty sensor
actuator (Not Spared)
23 – Lower retard pad (Not Spared)
24 – Pickup rubber outer shaft (Not
Spared)
25 – Pickup rubber inner shaft (Not
Spared)
26 130N01534 Pickup rubber (NOTE) (REP 7.3)
27 – Retard pad (Not Spared)
28 – Bypass pickup roll assembly (Not
Spared) (
REP 7.3)
29 050N00520 Bypass feed assembly (Complet)e
(
REP 7.1)
NOTE: HFSI. Refer to GP 16 High Frequency Service Items.
