Phaser 3635MFP/WorkCentre 3550
PL 10.22
Parts Lists

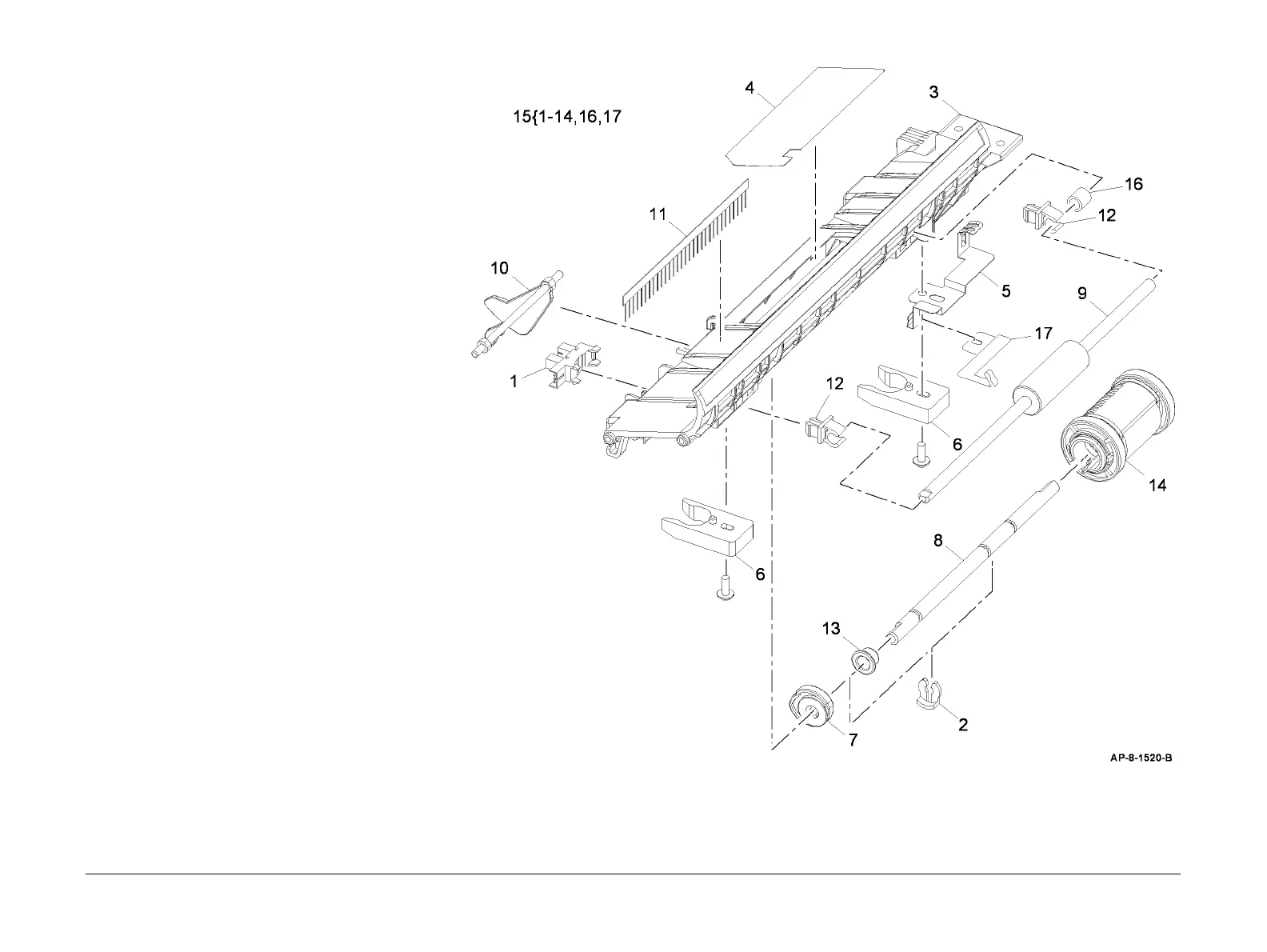

PL 10.22 Front Duplex Guide
Assembly
Item Part Description
1 130N01601 Tray 1 paper empty sensor (Q07-
110)
2 –KL-clip (P/O PL 10.22 Item 15)
3 – Front duplex guide (P/O PL 10.22
Item 15)
4 – Sheet guide (P/O PL 10.22 Item 15)
5 – Static eliminator (P/O PL 10.22 Item
15) (3550)
6 – Duplex assembly clamp (P/O PL
10.22 Item 15)
7 –Cam (P/O PL 10.22 Item 15)
8 – Pickup shaft (P/O PL 10.22 Item
15)
9 – Feed roll (P/O PL 10.22 Item 15)
10 120N00531 Tray 1 paper empty sensor actuator
11 – Static eliminator (P/O PL 10.22 Item
15)
12 – Feed roll holder (P/O PL 10.22 Item
15)
13 – Bearing (P/O PL 10.22 Item 15)
14 022N02413 Tray 1 pickup roll assembly (NOTE)
15 032N00490 Front duplex guide assembly
(Complet)e (3635) (
REP 10.3)
– – Front duplex guide assembly
(Complet)e (3635) (
REP 10.3)
16 – Bush (P/O PL 10.22 Item 15)
(3550)
17 – Static eliminator (P/O PL 10.22 Item
15) (3550)
NOTE: HFSI. Refer to GP 16 High Frequency Service Items.
