7. Remove the registration solenoid, pickup solenoid or scan motor as required, Figure 2.

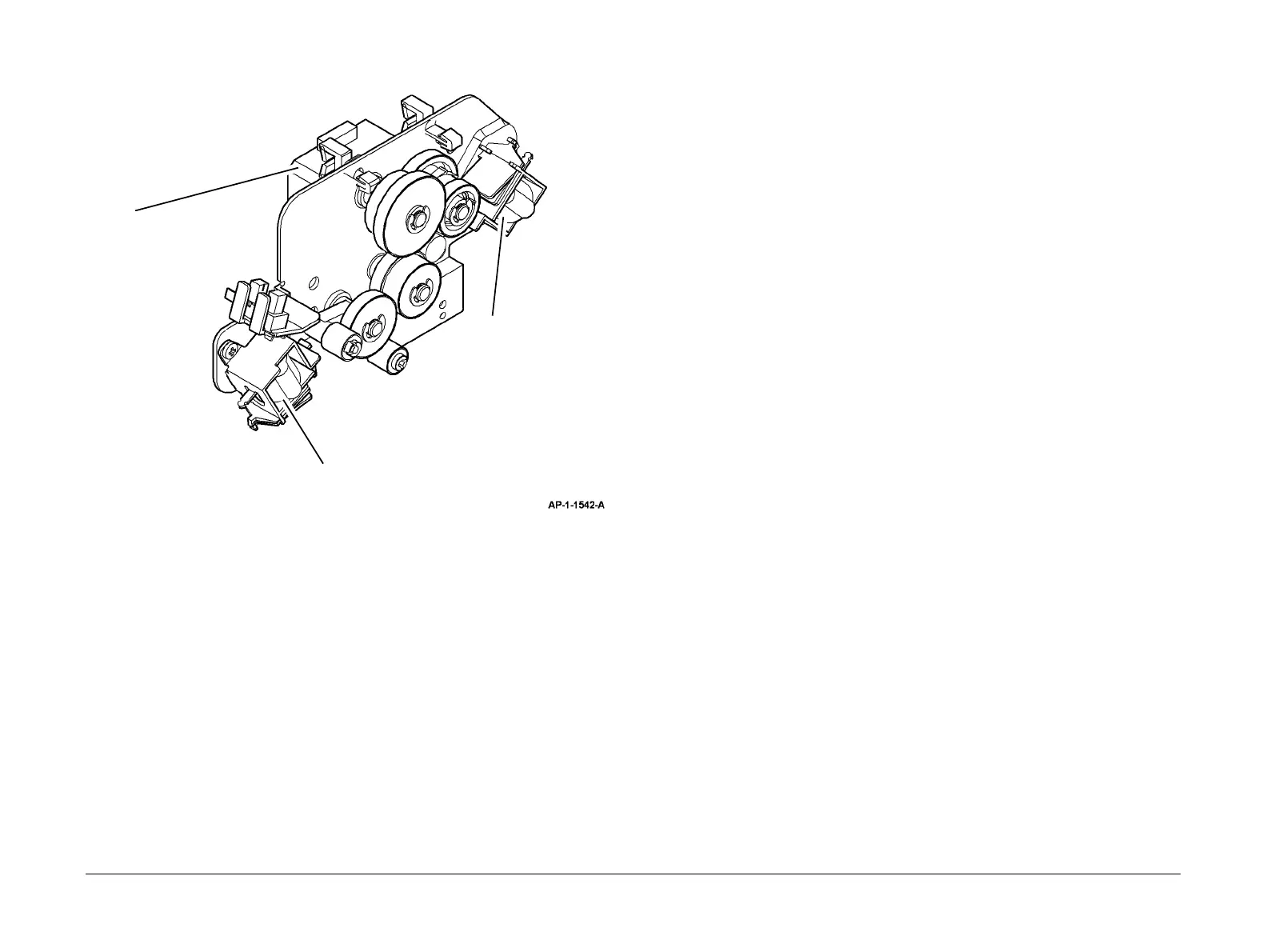

Figure 2 Solenoid and motor removal
Replacement
1. Replacement is the reverse of the removal procedure.
REP 5.6 DADF Paper Length Sensor
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to GP 10 General Disassembly Precautions.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the DADF rear cover, PL 5.10 Item 9.
3. Remove the DADF front cover, PL 5.10 Item 10.
4. Remove 3 screws to remove the input tray, PL 5.20 Item 1.
5. Disconnect CN10 from the DADF PWB.
6. Remove the sensor assembly cover, PL 5.20 Item 12.
7. Remove the DADF paper length sensor, PL 5.20 Item 11.
Replacement
1. Replacement is the reverse of the removal procedure.
DADF pickup
solenoid
DADF registration
solenoid
DADF scan motor
