April 2010
4-18
Phaser 3635MFP/WorkCentre 3550
REP 5.7
Repairs and Adjustments
REP 5.7 Pickup Assembly
Parts List on PL 5.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to GP 10 General Disassembly Precautions.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the DADF door assembly, PL 5.10 Item 3.
3. Release the pickup spring PL 5.25 Item 7.
4. Remove the pickup assembly, Figure 1.

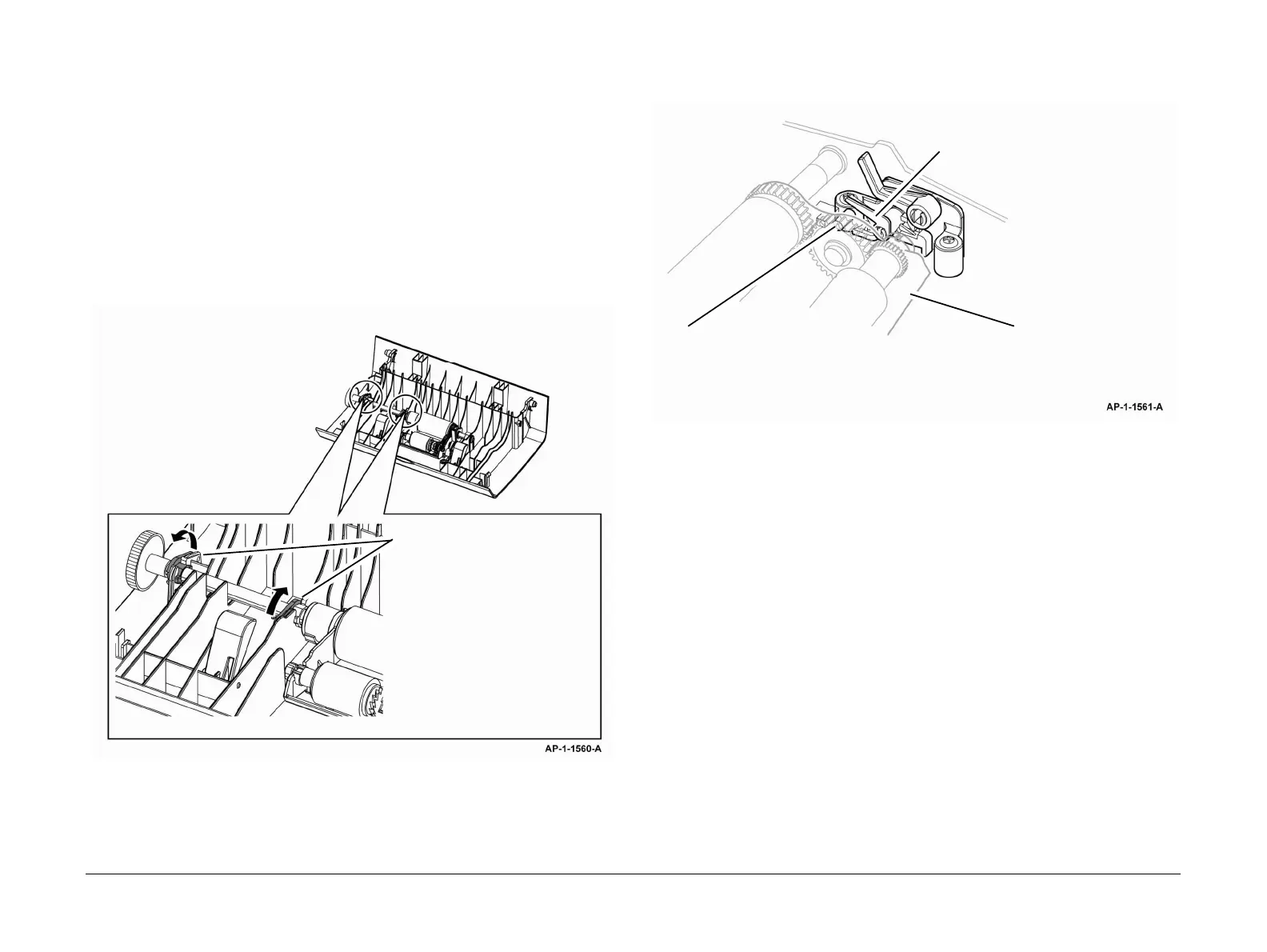

Figure 1 Pickup assembly removal
Replacement
1. Ensure that the pickup assembly is correctly installed into the DADF door assembly, Fig-
ure 2.
Figure 2 Correct installation
2. Replacement is the reverse of the removal procedure.
1
Rotate the locking collars into the
vertical position
2
Carefully unclip the pickup assem-
bly from the DADF door assembly
1
When installing the pickup assembly
ensure that the peg is correctly located
under the lever
Pickup assembly
Lever attached to document gate
