Xerox WorkCentre 3550 - PL 8.25 Registration Rolls

April 2010
5-24
Phaser 3635MFP/WorkCentre 3550
PL 8.25
Parts Lists

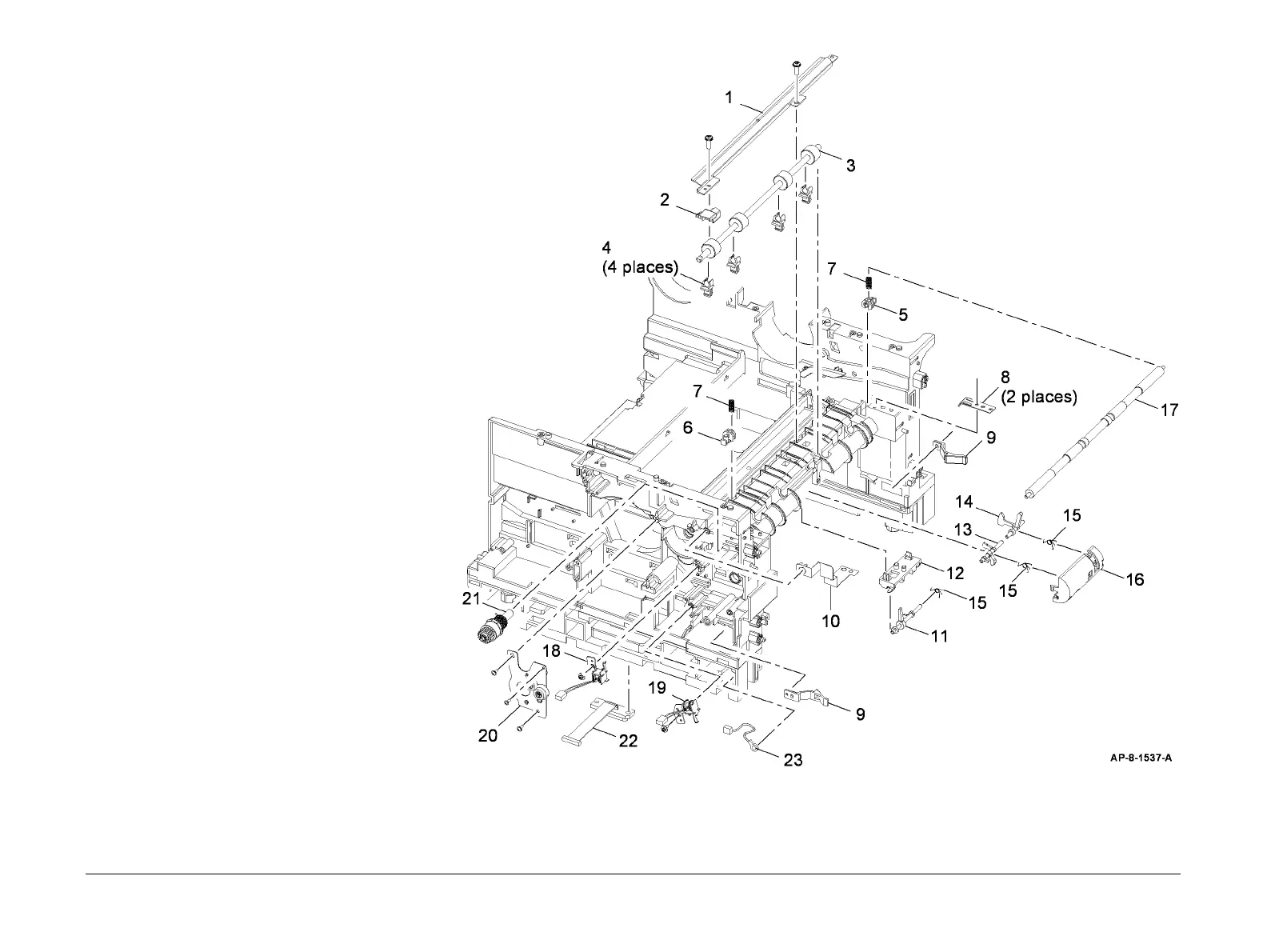

PL 8.25 Registration Rolls
Item Part Description
1 – Grounding plate (Not Spared)
2 – Grounding plate block (Not Spared)
3 – Registration roll (Not Spared)
4 – Feed roll holder (Not Spared)
5 – Rear feed roll holder (Not Spared)
6 – Front feed roll holder (Not Spared)
7 – Feed roll spring (Not Spared)
8 – Idler roll securing bracket (Not
Spared)
9 – Release latch (Not Spared)
10 – Ground strip (Not Spared)
11 – Feed sensor actuator (Not Spared)
12 – Feed sensor actuator housing (Not
Spared)
13 – Duplex jam 1 sensor actuator (Not
Spared)
14 – Registration sensor actuator (Not
Spared)
15 – Actuator spring (Not Spared)
16 – Actuator housing (Not Spared)
17 – Registration roll idler (Not Spared)
18 121N01162 Registration solenoid (SOL08-850)
(
REP 7.2)
19 121N01163 Tray 1 pickup solenoid (SOL08-
810) (
REP 7.2)
20 – Feed bracket (Not Spared)
21 005N01031 Registration roll clutch (REP 8.1)
22 – Tray 2 connector (Not Spared)
23 130N01531 Thermistor 2
