Xerox WorkCentre 3550 - PL 10.15 Fuser Assembly (3 of 3)

April 2010
5-28
Phaser 3635MFP/WorkCentre 3550
PL 10.15
Parts Lists

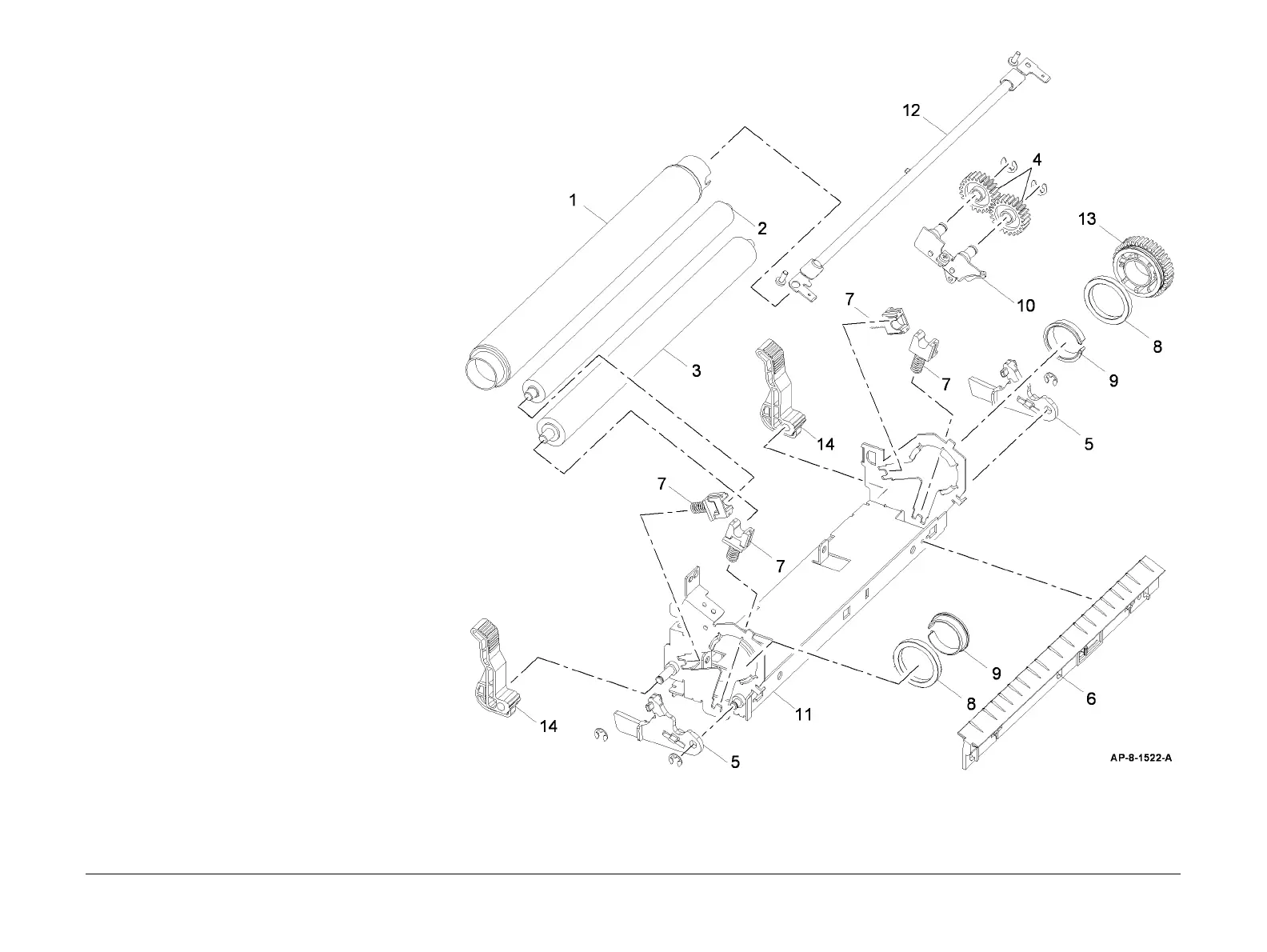

PL 10.15 Fuser Assembly (3 of 3)
Item Part Description
1 – Heat roll (P/O PL 10.10 Item 1)
2 – Pressure roll 1 (P/O PL 10.10 Item
1)
3 – Pressure roll 2 (P/O PL 10.10 Item
1)
4 – Fuser idler gear (P/O PL 10.10 Item
1)
5 – Link jam lever (P/O PL 10.10 Item
1)
6 – Input guide (P/O PL 10.10 Item 1)
7 – Pressure roll securing block (P/O
PL 10.10 Item 1)
8 – Outer bearing (P/O PL 10.10 Item
1)
9 – Inner bearing (P/O PL 10.10 Item 1)
10 – Pressure roll gear bracket (P/O PL
10.10 Item 1)
11 – Fuser frame (P/O PL 10.10 Item 1)
12 122N00260 Heat lamp (110V) (REP 10.6)
– 122N00261 Heat lamp (220V) (REP 10.6)
13 – Fuser gear (P/O PL 10.10 Item 1)
14 – Fuser nip release handle (P/O PL
10.10 Item 1)
