Xerox WorkCentre 3550 - PL 14.11 Scanner Assembly (3550)

April 2010
5-36
Phaser 3635MFP/WorkCentre 3550
PL 14.11
Parts Lists

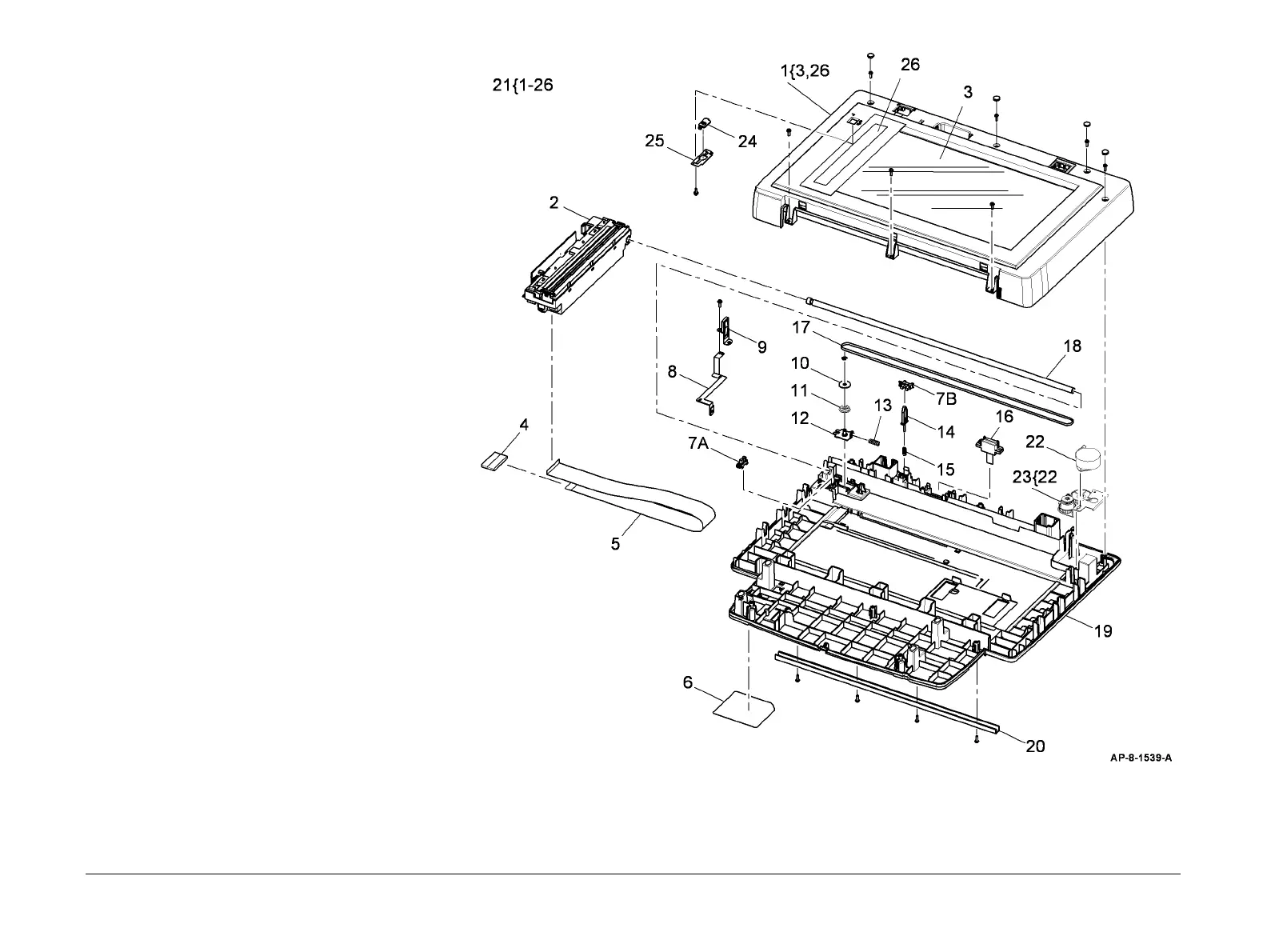

PL 14.11 Scanner Assembly (3550)
Item Part Description
1 002N02972 Scanner cover (REP 14.3)
2 133N23242 CCD module (REP 14.3)
3 – Document glass (P/O PL 14.11
Item 1)
4 – Ferrite (P/O PL 14.11 Item 21)
5 117N01901 CCD module cable
6 – Base plate (P/O PL 14.11 Item 21)
7 130N01601 CCD home sensor (A), Platen
cover sensor (B) (
REP 14.3)
8 – Ground strip (P/O PL 14.11 Item
21)
9 – Ground strip (P/O PL 14.11 Item
21)
10 – Pulley (upper) (P/O PL 14.11 Item
21)
11 – Pulley (lower) (P/O PL 14.11 Item
21)
12 – Pulley shaft plate (P/O PL 14.11
Item 21)
13 – Drive belt spring (P/O PL 14.11
Item 21)
14 – Platen cover sensor actuator (P/O
PL 14.11 Item 21)
15 – Actuator spring (P/O PL 14.11 Item
21)
16 152N11750 DADF connector
17 023N00954 CCD module belt
18 – CCD module guide rail (P/O PL
14.11 Item 21)
19 – Scanner base (P/O PL 14.11 Item
21)
20 – Base support (P/O PL 14.11 Item
21)
21 109N00708 Scanner assembly (Complet)e
(
REP 14.1)
22 127N07586 Scan motor
23 002N02976 Scan motor drive assembly
24 – Scanner lock (P/O PL 14.11 Item
21)
25 – Scanner lock bracket (P/O PL 14.11
Item 21)
26 – CVT glass (P/O PL 14.11 Item 1)
