Xerox WorkCentre 3550 - PL 5.20 DADF (3 of 7)

April 2010
5-11
Phaser 3635MFP/WorkCentre 3550
PL 5.20
Parts Lists

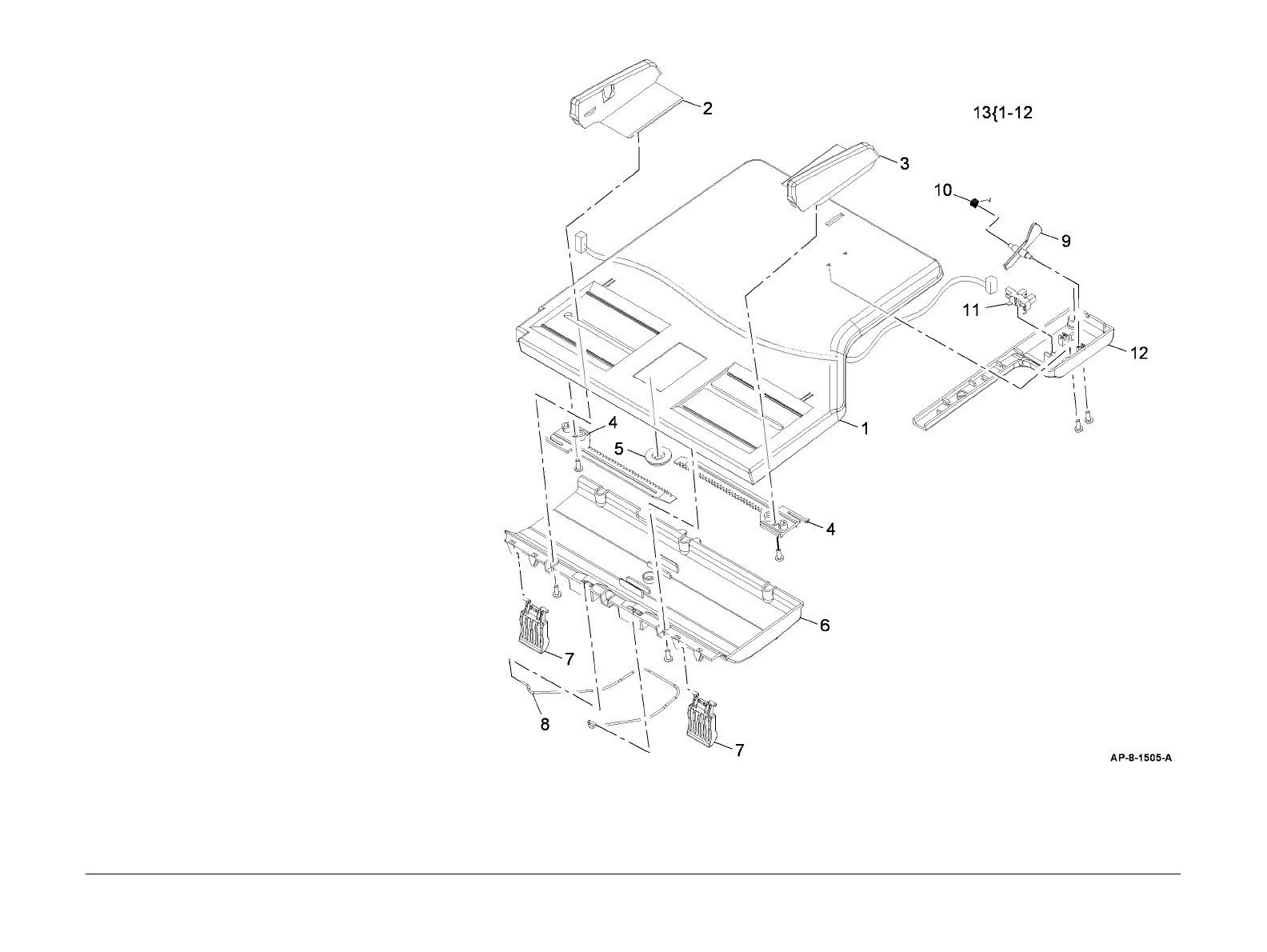

PL 5.20 DADF (3 of 7)
Item Part Description
1 – Input tray (P/O PL 5.10 Item 1)
2 – Document guide (rear) (P/O PL
5.10 Item 1)
3 – Document guide (front) (P/O PL
5.10 Item 1)
4 – Document guide rack (P/O PL 5.10
Item 1)
5 – Pinion gear (P/O PL 5.10 Item 1)
6 – Guide rack cover (P/O PL 5.10 Item
1)
7 – Document guide (P/O PL 5.10 Item
1)
8 – Document guide wire (P/O PL 5.10
Item 1)
9 – DADF paper length sensor actuator
(P/O
PL 5.10 Item 1)
10 – DADF paper length sensor spring
(P/O
PL 5.10 Item 1)
11 130N01601 DADF paper length sensor (Q05-
120) (
REP 5.6)
12 – Sensor assembly cover (P/O PL
5.10 Item 1)
13 002N02741 Input tray assembly (Complet)e
