Xerox WorkCentre 3550 - PL 5.15 DADF (2 of 7)

April 2010
5-10
Phaser 3635MFP/WorkCentre 3550
PL 5.15
Parts Lists

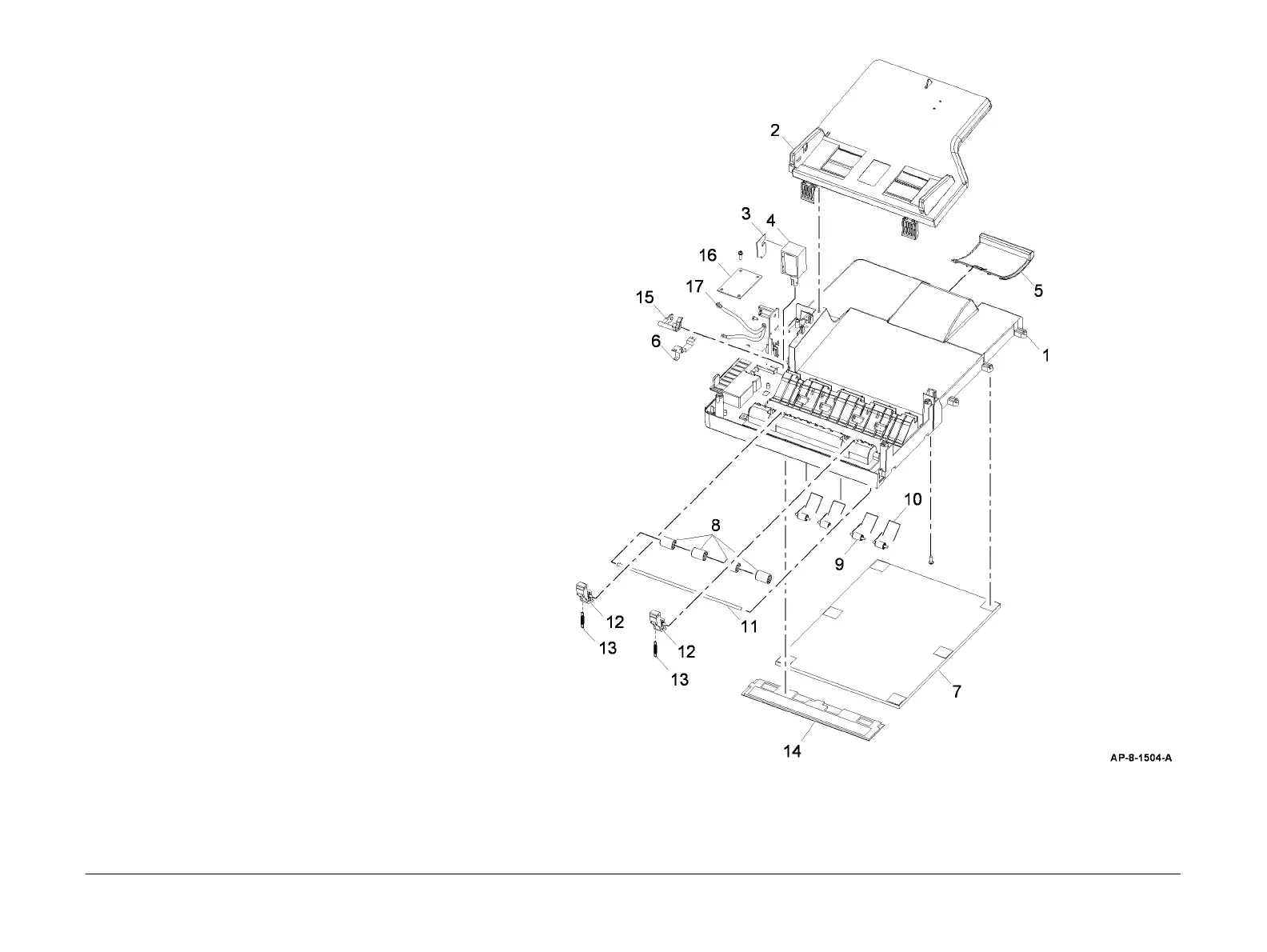

PL 5.15 DADF (2 of 7)
Item Part Description
1 – Lower cover (P/O PL 5.10 Item 1)
2 – Input tray assembly (P/O PL 5.10
Item 1)
3 – Solenoid damper (P/O PL 5.10 Item
1)
4 121N01160 DADF lift solenoid (SOL05-320)
(
REP 5.2)
5 – Tray extension (P/O PL 5.10 Item
1)
6 – Ground strip (P/O PL 5.10 Item 1)
7 019N00810 Document pad (3635)
– 025N00081 Document pad (3550)
8 – Registration roll idler (P/O PL 5.10
Item 1)
9 – Scan idler (P/O PL 5.10 Item 1)
10 – Scan idler spring (P/O PL 5.10 Item
1)
11 – Registration roll shaft (P/O PL 5.10
Item 1)
12 – Nip release lever (P/O PL 5.10 Item
1)
13 – Nip release lever spring (P/O PL
5.10 Item 1)
14 – CVT pad (P/O PL 5.10 Item 1)
15 – Lifting exit lever (P/O PL 5.10 Item
1)
16 140N63301 DADF PWB
17 – DADF PWB harness (P/O PL 5.10
Item 1)
