Xerox WorkCentre 3550 - PL 9.10 Print Cartridge

April 2010
5-25
Phaser 3635MFP/WorkCentre 3550
PL 9.10
Parts Lists

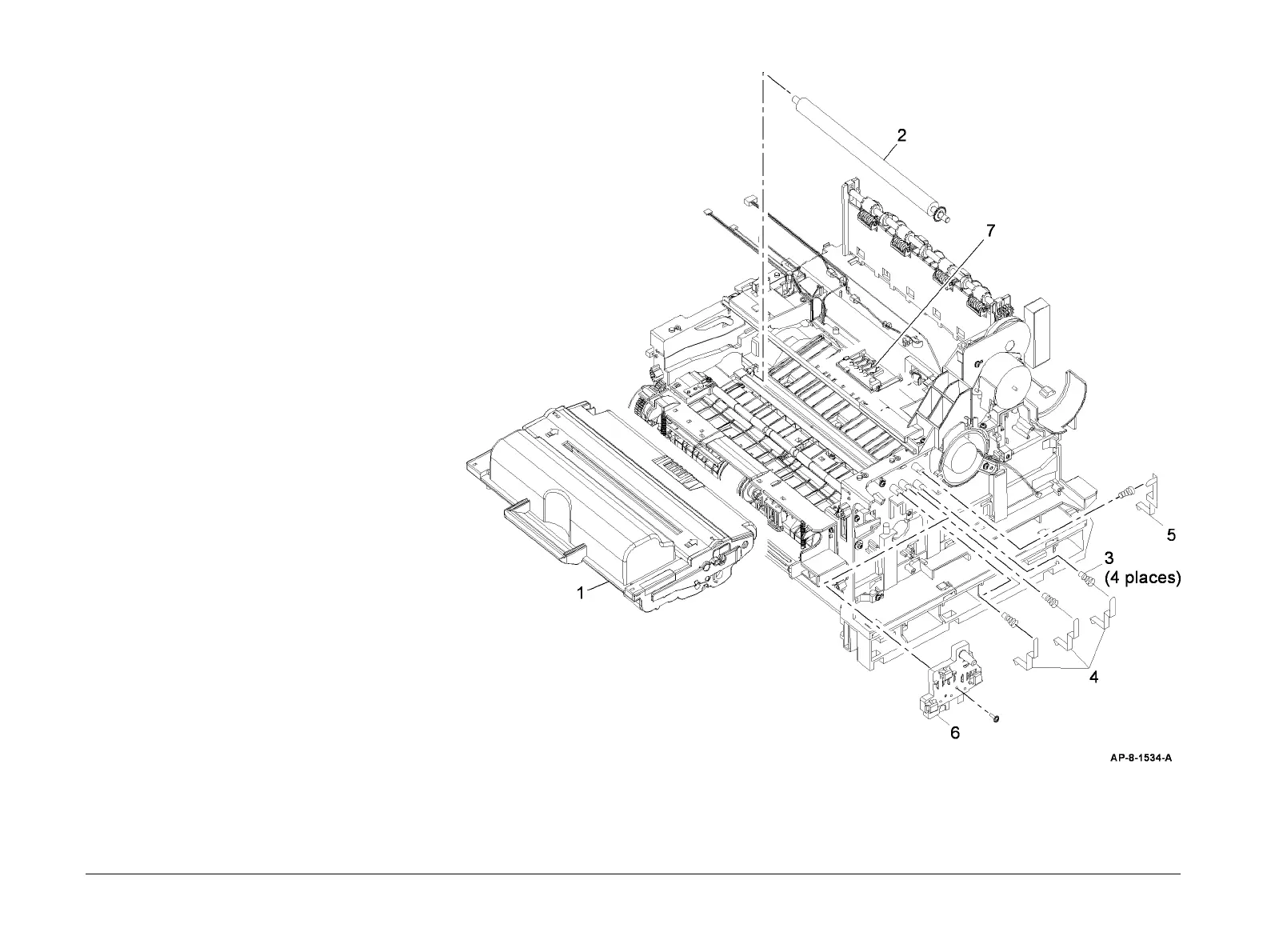

PL 9.10 Print Cartridge
Item Part Description
1 – Print cartridge (See below for
variants)
– – Metered page print (Not Spared)
(3635)
– – Metered page print (Not Spared)
(3550)
– – 5K Print (USSG/XE) (Not Spared)
(3635)
– – 5K Print (USSG/XE) (Not Spared)
(3550)
– – 10K print (USSG/XE) (Not Spared)
(3635)
– – 11K print (USSG/XE) (Not Spared)
(3550)
– – 5K Print (DMO) (Not Spared)
(3635)
– – 5K Print (DMO) (Not Spared)
(3550)
– – 10K print (DMO) (Not Spared)
(3635)
– – 11K print (DMO) (Not Spared)
(3550)
2 002N02788 Transfer roll (NOTE)
3 – Spring contacts (Not Spared)
4 – Print cartridge power strip (Supply,
DEV, OPC) (Not Spared)
5 – Print cartridge power strip (MHV)
(Not Spared)
6 – Terminal cover (Not Spared) (REP
9.1)
7 140N63302 CRUM PWB
NOTE: HFSI. Refer to GP 16 High Frequency Service Items.
