Xerox WorkCentre 3550 - Machine Status and Setups

April 2010
5-3
Phaser 3635MFP/WorkCentre 3550
PL 1.10
Parts Lists

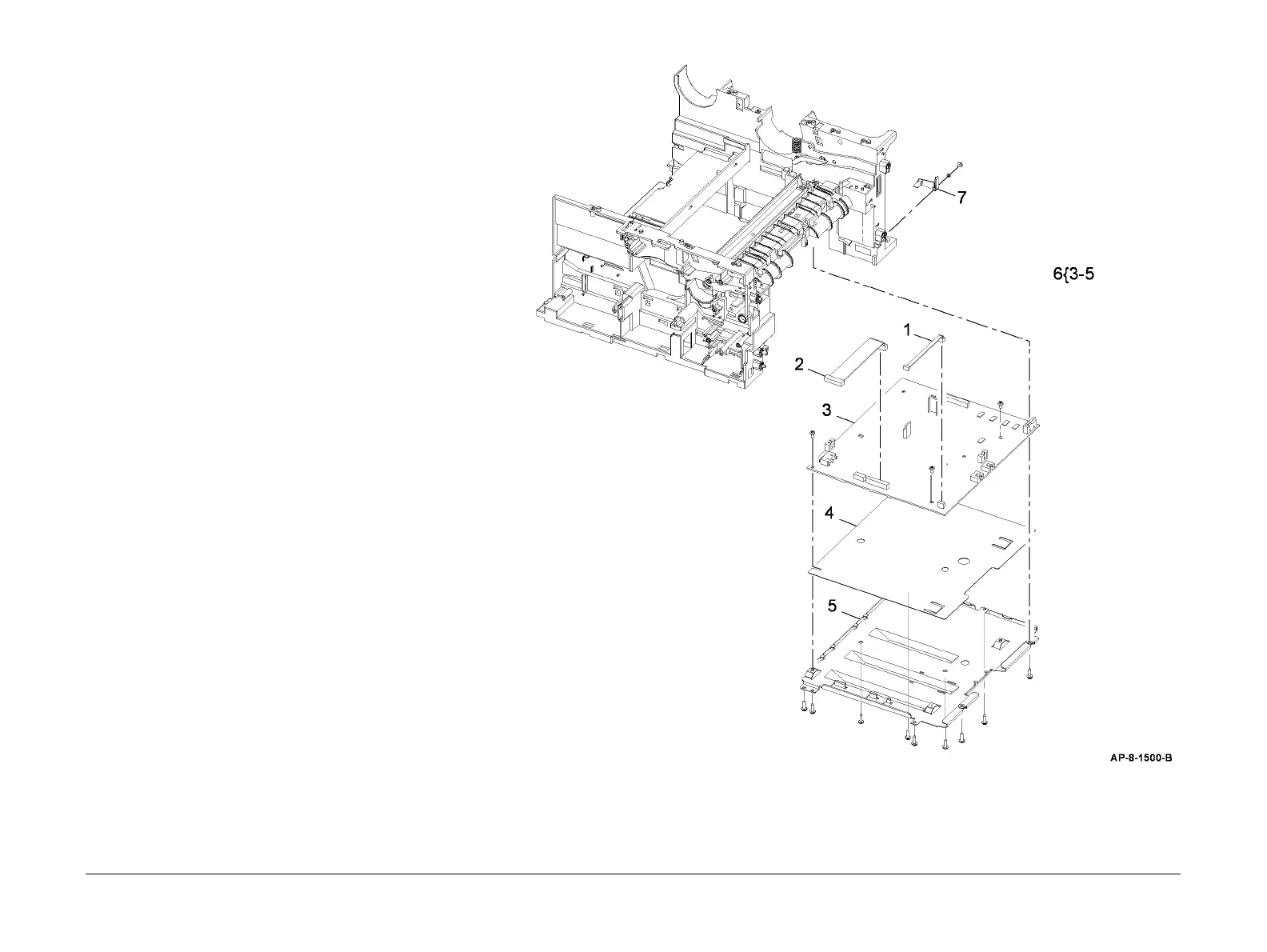

PL 1.10 HVPS
Item Part Description
1 – Tray 1 paper empty sensor harness
(Not Spared)
2 – HVPS harness (Not Spared)
3 105N02141 HVPS (REP 1.2)
4 – HVPS insulation sheet (Not
Spared)
5 – HVPS shield (Not Spared)
6 – HVPS assembly (Not Spared)
7 – Intermediate actuator (Not Spared)
