Xerox WorkCentre 3550 - PL 3.10 Main PWB and Main Drive Assembly

April 2010
5-7
Phaser 3635MFP/WorkCentre 3550
PL 3.10
Parts Lists

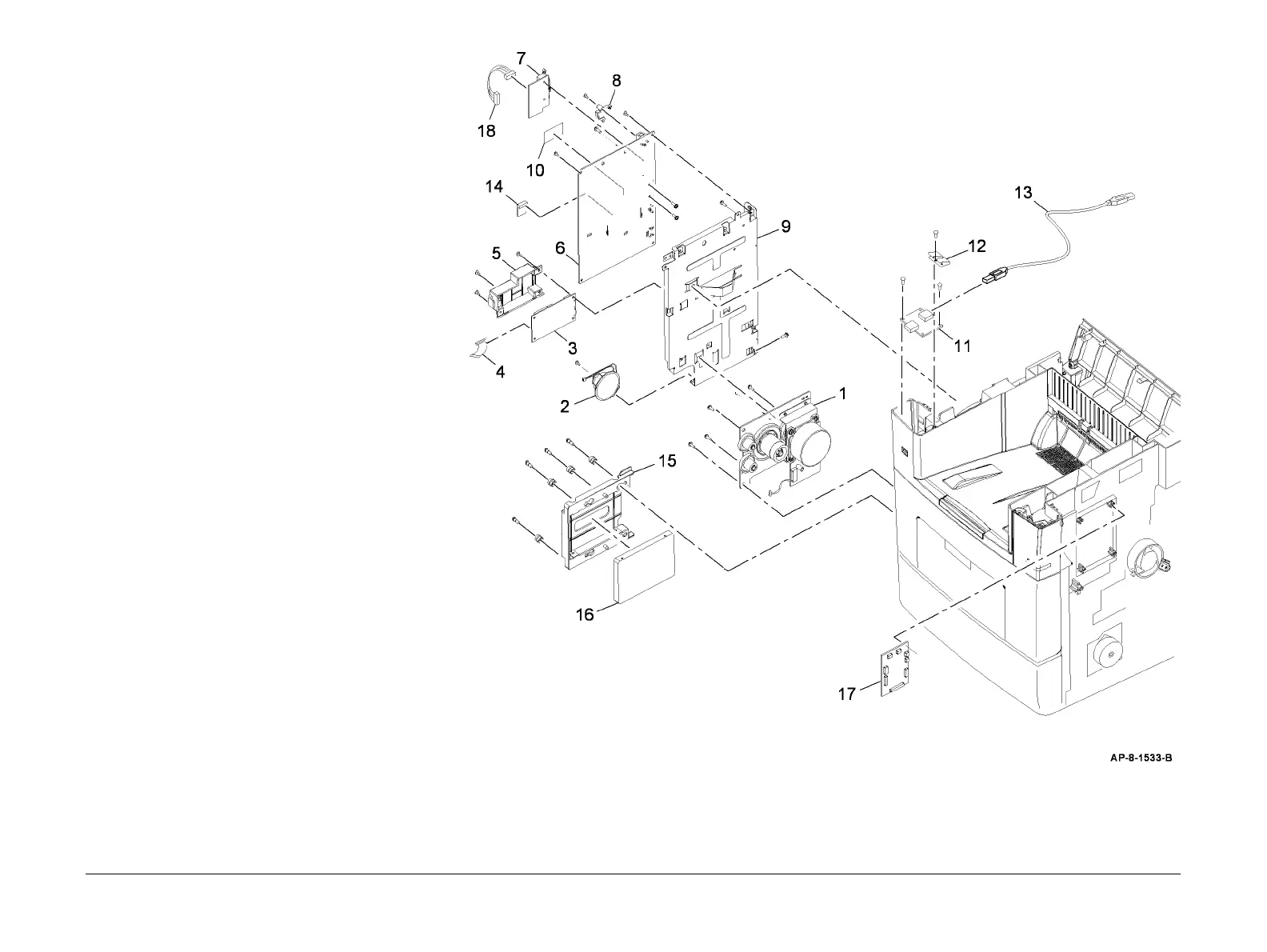

PL 3.10 Main PWB and Main Drive
Assembly
Item Part Description
1 – Main drive assembly (REF: PL 4.10
Item 7)
2 130N01532 Speaker
3 140N63305 FAX PWB (Serial) (3635)
– 140N63458 FAX PWB (Serial) (3550)
– 140N63304 FAX PWB (Parallel) (3635)
– 140N63457 FAX PWB (Parallel) (3550)
4 – FAX harness (Not Spared)
5 – FAX cover (Not Spared)
6 140N63297 Main PWB (3635) (REP 3.1)
– 140N63459 Main PWB (3550) (REP 3.1)
7 140N63346 Foreign device interface PWB
8 113N01312 SIM card holder
9 – Main PWB bracket (Not Spared)
10 140N63298 Memory DIMM
11 140N63299 USB host PWB (REP 3.2)
12 – Ground strip (Not Spared)
13 117N01789 USB harness (REP 3.2)
14 – MSOK (Not Spared)
15 – Hard drive cover (Not Spared)
16 007N01651 Hard disk drive (3635)
17 140N63303 Connection PWB (3635)
– 140N63456 Connection PWB (3550)
18 152N11762 Foreign device interface PWB
harness
