Xerox WorkCentre 3550 - PL 7.12 Bypass Feed Assembly (2 of 2)

April 2010
5-18
Phaser 3635MFP/WorkCentre 3550
PL 7.12
Parts Lists

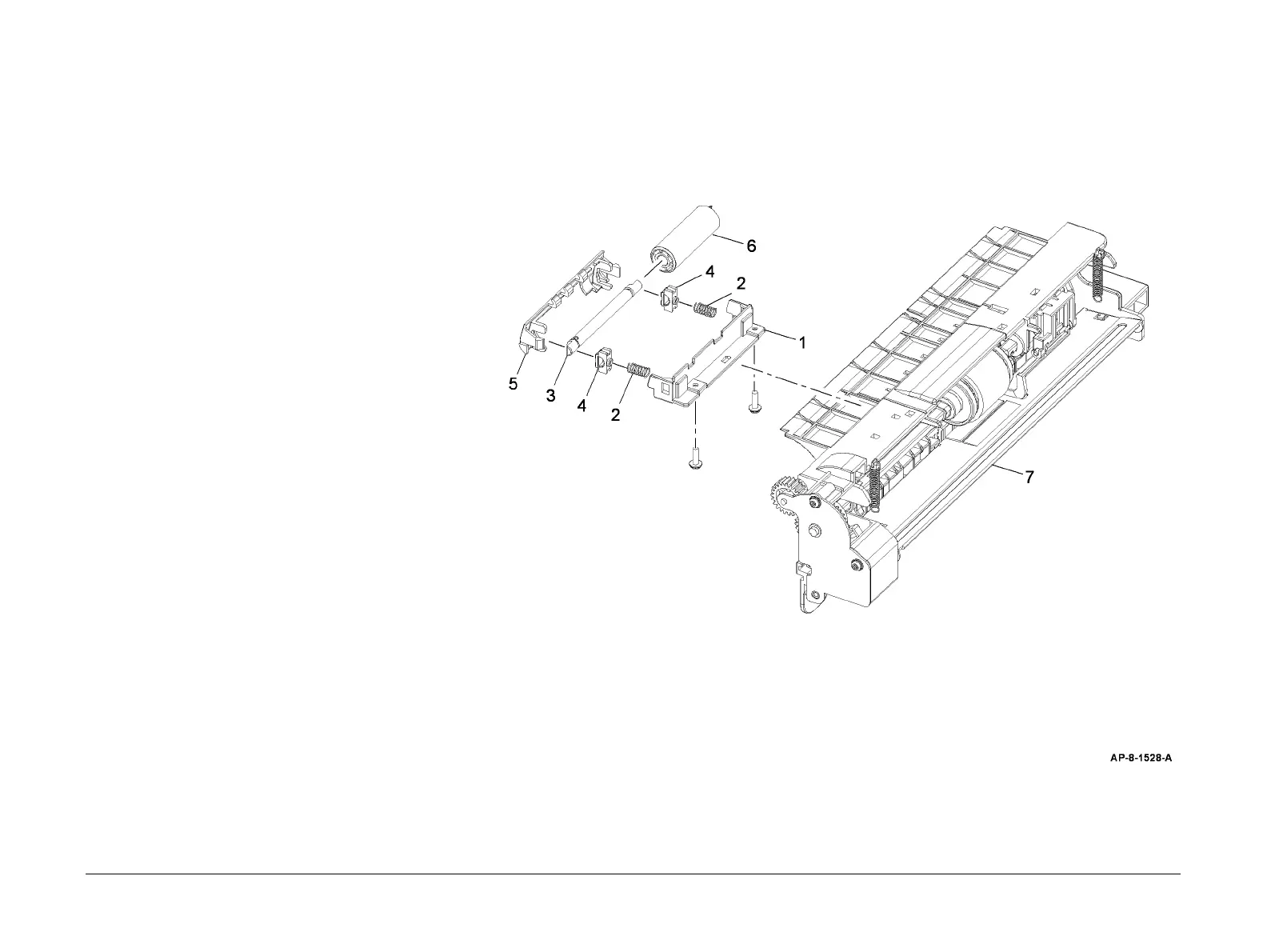

PL 7.12 Bypass Feed Assembly (2 of
2)
Item Part Description
1 – Feed idler holder (Not Spared)
2 – Lower exit idler spring (Not Spared)
3 – Feed idler shaft (Not Spared)
4 – Feed idler shaft holder (Not Spared)
5 – Feed idler cover (Not Spared)
6 – Feed roll idler (Not Spared)
7 – Bypass feed assembly (REF: PL
7.10)
