Xerox WorkCentre 3550 - PL 4.10 Main Drive Assembly

April 2010
5-8
Phaser 3635MFP/WorkCentre 3550
PL 4.10
Parts Lists

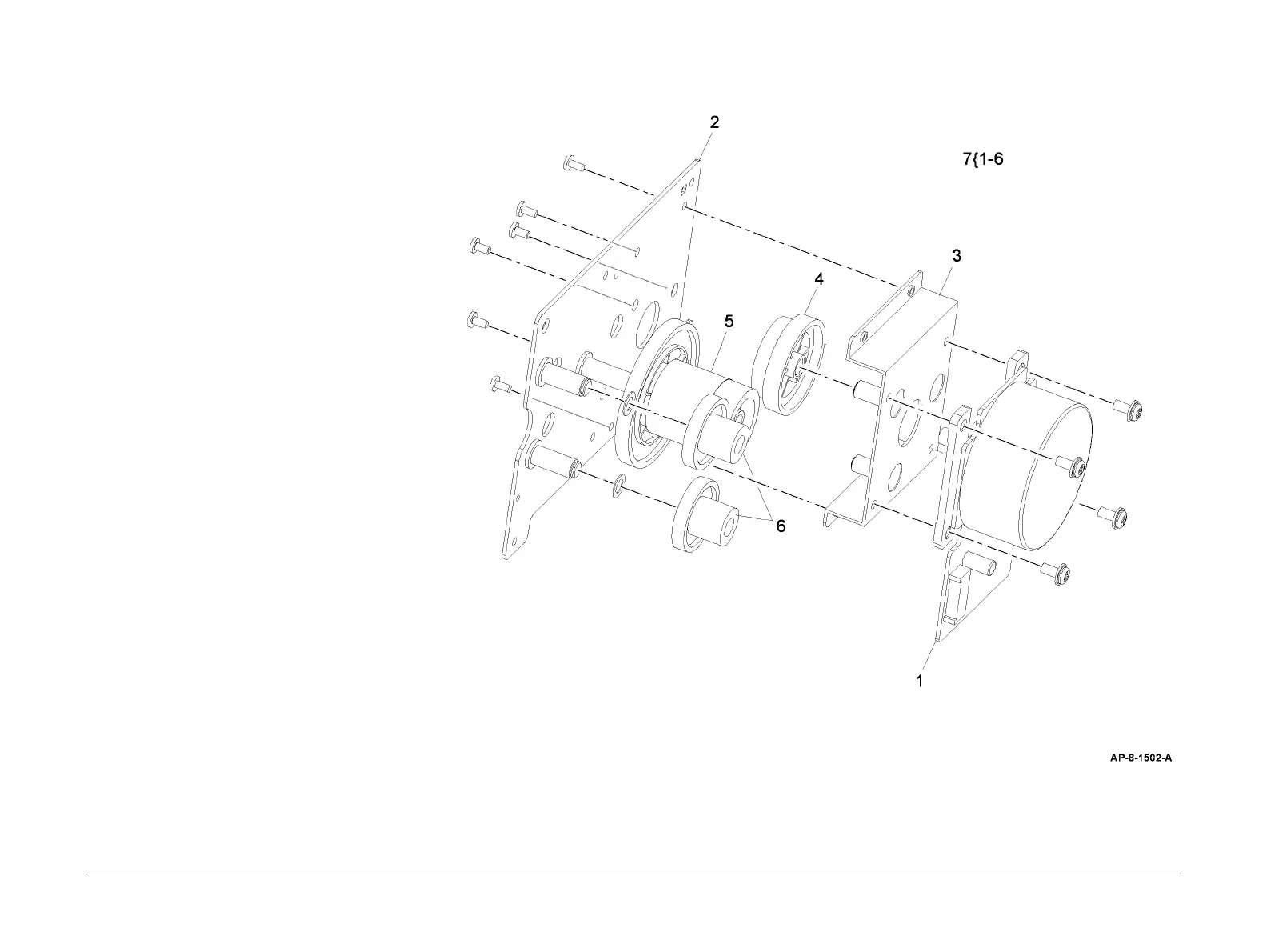

PL 4.10 Main Drive Assembly
Item Part Description
1 127N07557 Main BLDC motor (MOT04-100)
(
REP 4.1)
2 – Gear bracket (P/O PL 4.10 Item 7)
3 – Motor bracket (P/O PL 4.10 Item 7)
4 – Gear (92/61) (P/O PL 4.10 Item 7)
5 – Gear (113/33) (P/O PL 4.10 Item 7)
6 – Gear (55/18) (P/O PL 4.10 Item 7)
7 007N01591 Main drive assembly (REP 4.1)
