Phaser 3635MFP/WorkCentre 3550
PL 10.23
Parts Lists

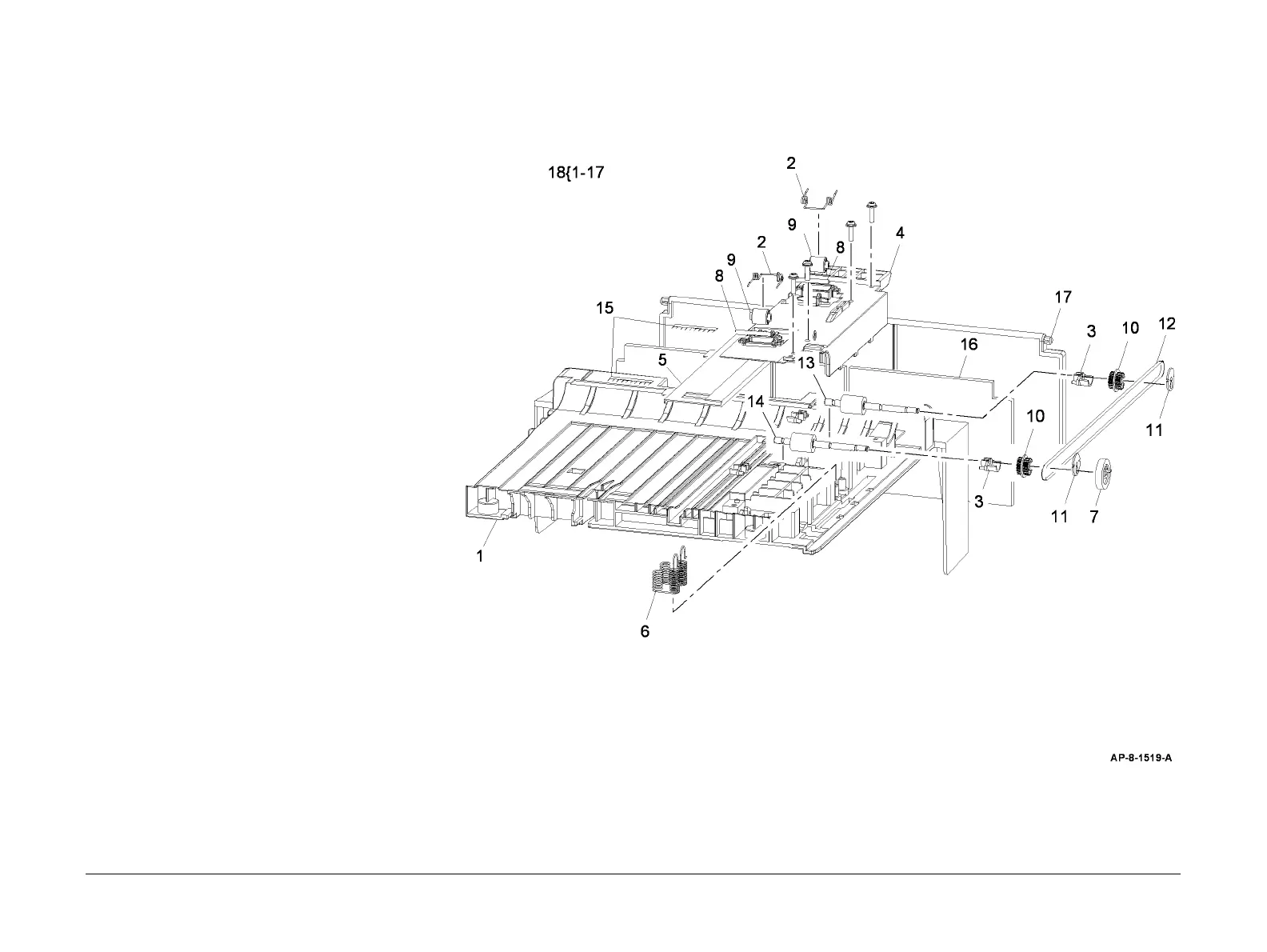

PL 10.23 Duplex Assembly (1 of 3)
Item Part Description
1 – Duplex frame (P/O PL 10.23 Item
18)
2 – Idler spring (P/O PL 10.23 Item 18)
3 – Bush (P/O PL 10.23 Item 18)
4 – Upper guide (P/O PL 10.23 Item
18)
5 – Alignment bracket (P/O PL 10.23
Item 18)
6 – Spring assembly (P/O PL 10.23
Item 18)
7 – Exit gear (P/O PL 10.23 Item 18)
8 – Idler shaft (P/O PL 10.23 Item 18)
9 – Duplex roll idler (P/O PL 10.23 Item
18)
10 – Pulley (P/O PL 10.23 Item 18)
11 – Snap on washer (P/O PL 10.23
Item 18)
12 – Duplex drive belt (P/O PL 10.23
Item 18)
13 – Rear duplex roll (P/O PL 10.23 Item
18)
14 – Front duplex roll (P/O PL 10.23
Item 18)
15 – Static eliminator (P/O PL 10.23 Item
18)
16 – Noise insulation (P/O PL 10.23 Item
18)
17 – Noise insulation cover (P/O PL
10.23 Item 18)
18 101N01420 Duplex assembly (Complet)e
