Xerox WorkCentre 3550 - PL 5.30 DADF (5 of 7)

April 2010
5-13
Phaser 3635MFP/WorkCentre 3550
PL 5.30
Parts Lists

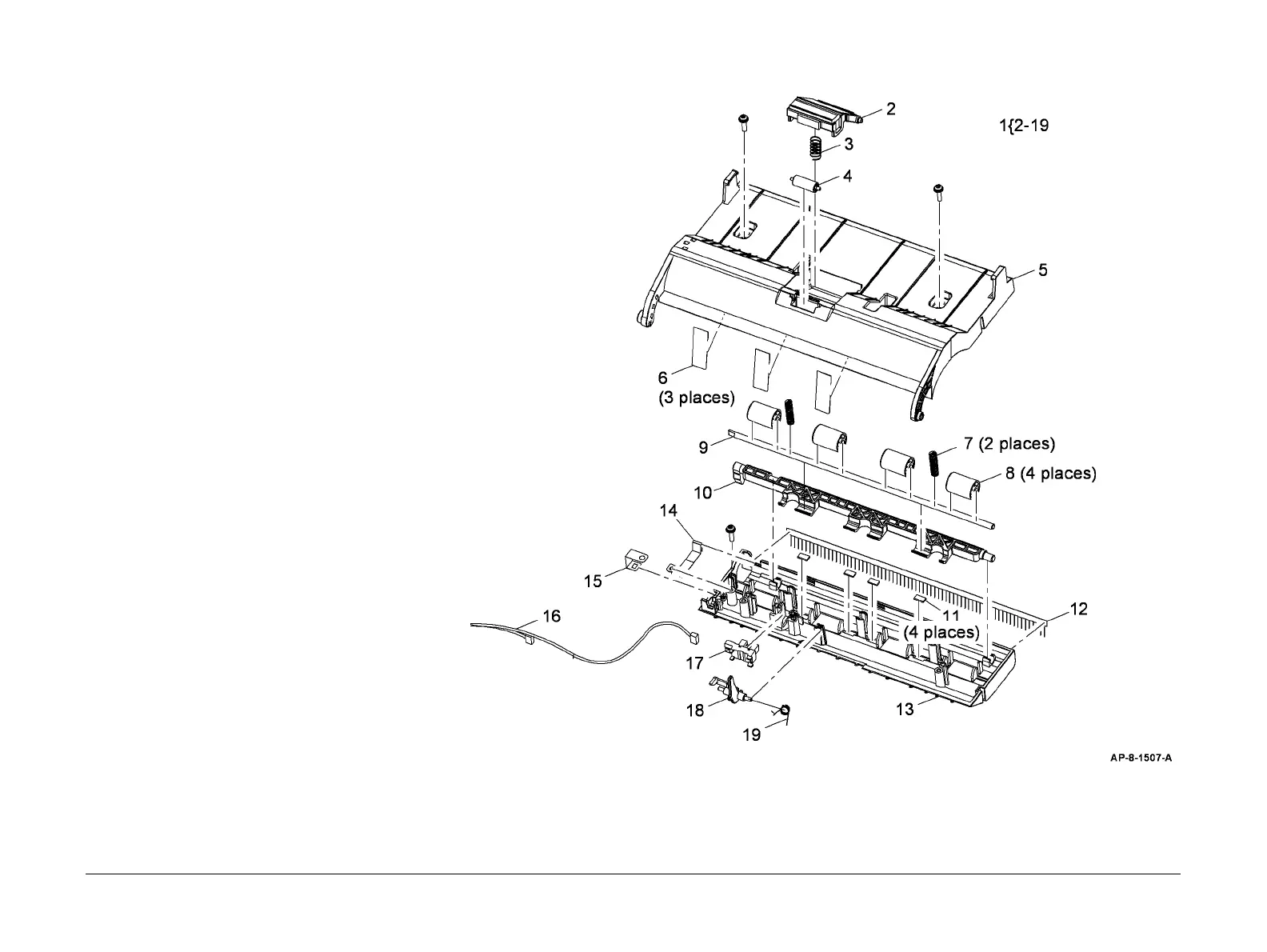

PL 5.30 DADF (5 of 7)
Item Part Description
1 022N02359 Feed assembly (Complet)e (REP
5.4)
2 003N01042 Retard pad assembly (NOTE)
3 – Retard pad spring (P/O PL 5.10
Item 1)
4 – Feed roll idler (P/O PL 5.10 Item 1)
5 – Upper cover (P/O PL 5.10 Item 1)
6 – Mylar (P/O PL 5.10 Item 1)
7 – Exit idler spring (P/O PL 5.10 Item
1)
8 – Exit idler (P/O PL 5.10 Item 1)
9 – Exit idler shaft (P/O PL 5.10 Item 1)
10 – Exit idler lifting bracket (P/O PL
5.10 Item 1)
11 – Upper damper (P/O PL 5.10 Item 1)
12 – Static eliminator (P/O PL 5.10 Item
1)
13 – Lower cover (P/O PL 5.10 Item 1)
14 – Ground strip (P/O PL 5.10 Item 1)
15 – Ground strip (P/O PL 5.10 Item 1)
16 – Document detect sensor harness
(P/O
PL 5.10 Item 1)
17 130N01601 Document detect sensor (Q05-100)
18 – Document detect sensor actuator
(P/O
PL 5.10 Item 1)
19 – Document detect sensor actuator
spring (P/O
PL 5.10 Item 1)
NOTE: HFSI. Refer to GP 16 High Frequency Service Items.
