Xerox WorkCentre 3550 Service Manual

April 2010
6-21
Phaser 3635MFP/WorkCentre 3550
GP 13
General Procedures/Information
GP 13 Installation Space Requirements
Purpose
To outline the general space requirements to enable safe use and adequate access for service.
WARNING
Do not work in a confined space. 1 m (39 inches) space is needed for safe working.
WARNING
USA and Canada. Do not install this machine in a hallway or exit route that does not
have 1.12 m (44 inches) of space additional to the normal space requirements in front of
the machine. To conform with fire regulations this additional 1.12 m (44 inches) of space
is needed in front of the machine in hallway and exit routes.
Procedure
Refer to the following:
• Machine Height
• Machine Weight
• Machine Dimensions and Installation Space Requirements
Machine Height
Basic Machine
• Machine with the DADF lowered = 535mm (21 inches)
• Machine with the DADF raised = 765mm (30.1 inches)
Machine with Two Trays
• Machine with the DADF lowered = 662mm (26 inches)
• Machine with the DADF raised = 892mm (35.1 inches)
Machine with Two Trays and Stand
• Machine with the DADF lowered = 1103mm
• Machine with the DADF raised = 1333mm
Machine Weight
• Basic machine = 28.9Kg (63.5lb)
• Tray 2 = 7Kg (15.4lb)
• Stand = 14.8Kg (32.6lb)
Machine Dimensions and Installation Space Requirements
Table 1 shows the dimension of the machine and the installation space required for safe oper-
ation.
NOTE: The dimensions shown in Table 1 allow for a 1 metre (39.4 inches) minimum safety
workspace around the machine. To acquire the minimum safety workspace it may be neces-
sary to move the machine within the area specified.

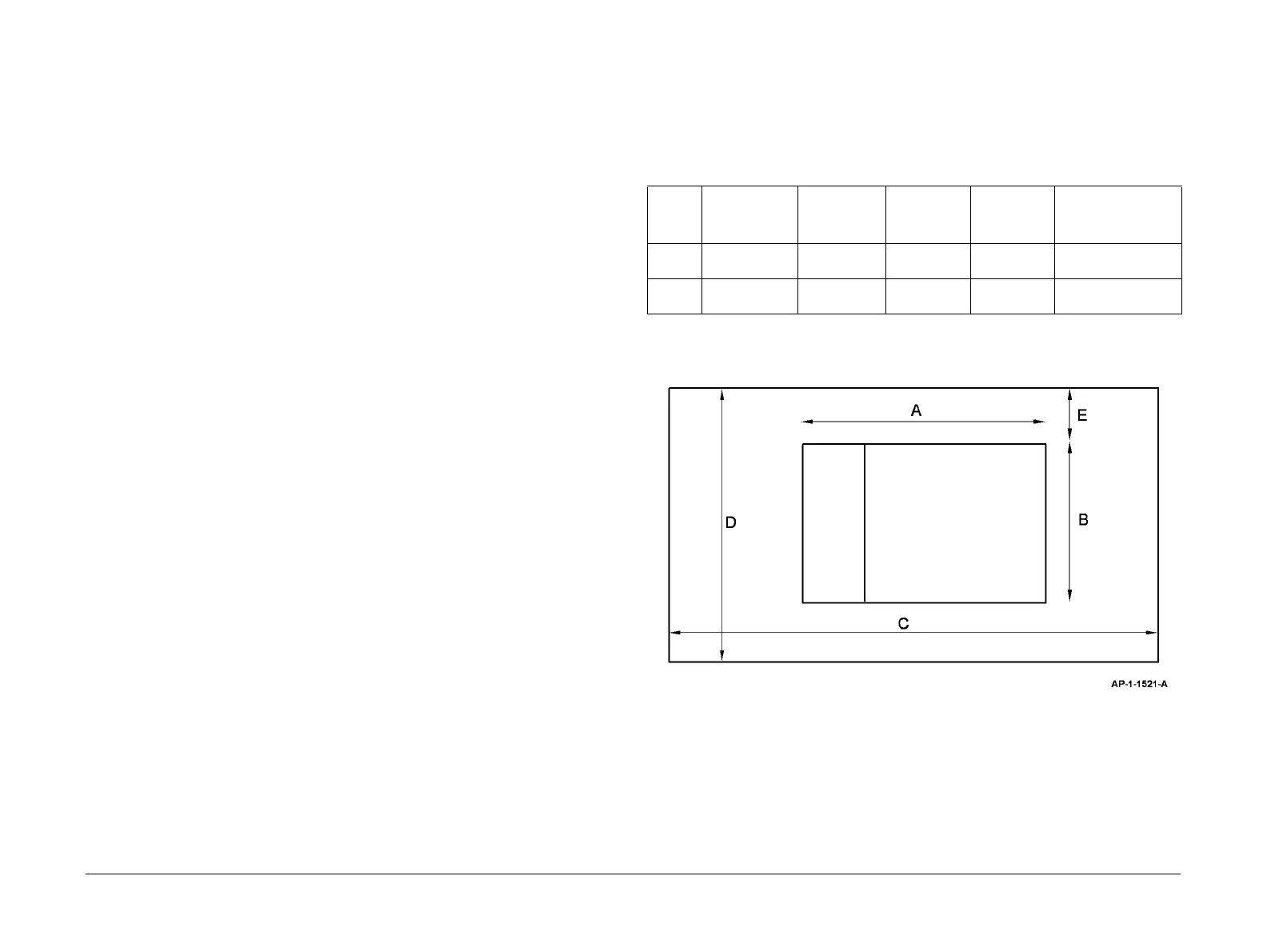

Figure 1 represents a plan view of a machine installation and is to be read in conjunction with
Table 1. The dimensions A and B outline a footprint of the machine within the boundary of safe
operation, dimensions C and D. The dimension E indicates the area required for airflow / work-
space at the rear of the machine.
NOTE: The machine depth dimension does not include the stand stabilizing feet.
Figure 1 Installation plan
Table 1 Working space requirements
Machine width
(A)
Machine
depth
(B)
Install width
required
(C)
Install depth
required
(D)
Install airflow/
service workspace
(E)
3635 472mm
(18.7inches)
488mm
(19.1 inches)
1472mm
(58.4 inches)
1488mm
(58.4 inches)
178mm
(7 inches)
3550 582mm
(23 inches)
488mm
(19.2 inches)
1582mm
(58 inches)
1488mm
(58.5 inches)
178mm
(7 inches)
Front

Xerox WorkCentre 3550 Specifications

General

Print technology	-
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Duplex printing mode	Auto
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Total number of input trays	1
Maximum number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	60 sheets
Custom media width	148 - 210 mm
Custom media length	216 - 356 mm
Paper tray media types	Heavy paper, Lightweight paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Letterhead, Plain paper, Recycled paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Paper tray media weight (imperial)	16 - 28 lbs
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Multi-Purpose Tray media weight (imperial)	16 - 43 lbs
Auto Document Feeder (ADF) media weight (imperial)	12 - 28 lbs
Internal memory	256 MB
Maximum internal memory	512 MB
Sound power level (standby)	39 dB
Sound pressure level (printing)	55 dB
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Security algorithms	802.1x RADIUS
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional x64
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Faxing	Mono faxing
Fax memory	7 MB
Modem speed	33.6 Kbit/s
Fax forwarding to	E-mail, FTP, Fax, PC, SMB
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Product color	Blue, Grey
Market positioning	Business
Scan to	E-mail, FTP, OCR, PC, SMB, USB
Scanner type	ADF scanner
Maximum scan area	216 x 356 mm
Scan speed (black)	26 ppm
Scan speed (color)	8 ppm
Image formats supported	JPG
Document formats supported	PDF
Optical scanning resolution	300 x 300 DPI
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	60 W
Power consumption (printing)	600 W
Power consumption (PowerSave)	20 W
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	619 mm
Package width	676 mm
Package height	696 mm
Package weight	29700 g
Certification	UL, CE, FCC

Weight and Dimensions

Depth	488 mm
Width	582 mm
Height	553 mm
