Xerox WorkCentre 3550 - PL 5.10 DADF (1 of 7)

April 2010
5-9
Phaser 3635MFP/WorkCentre 3550
PL 5.10
Parts Lists

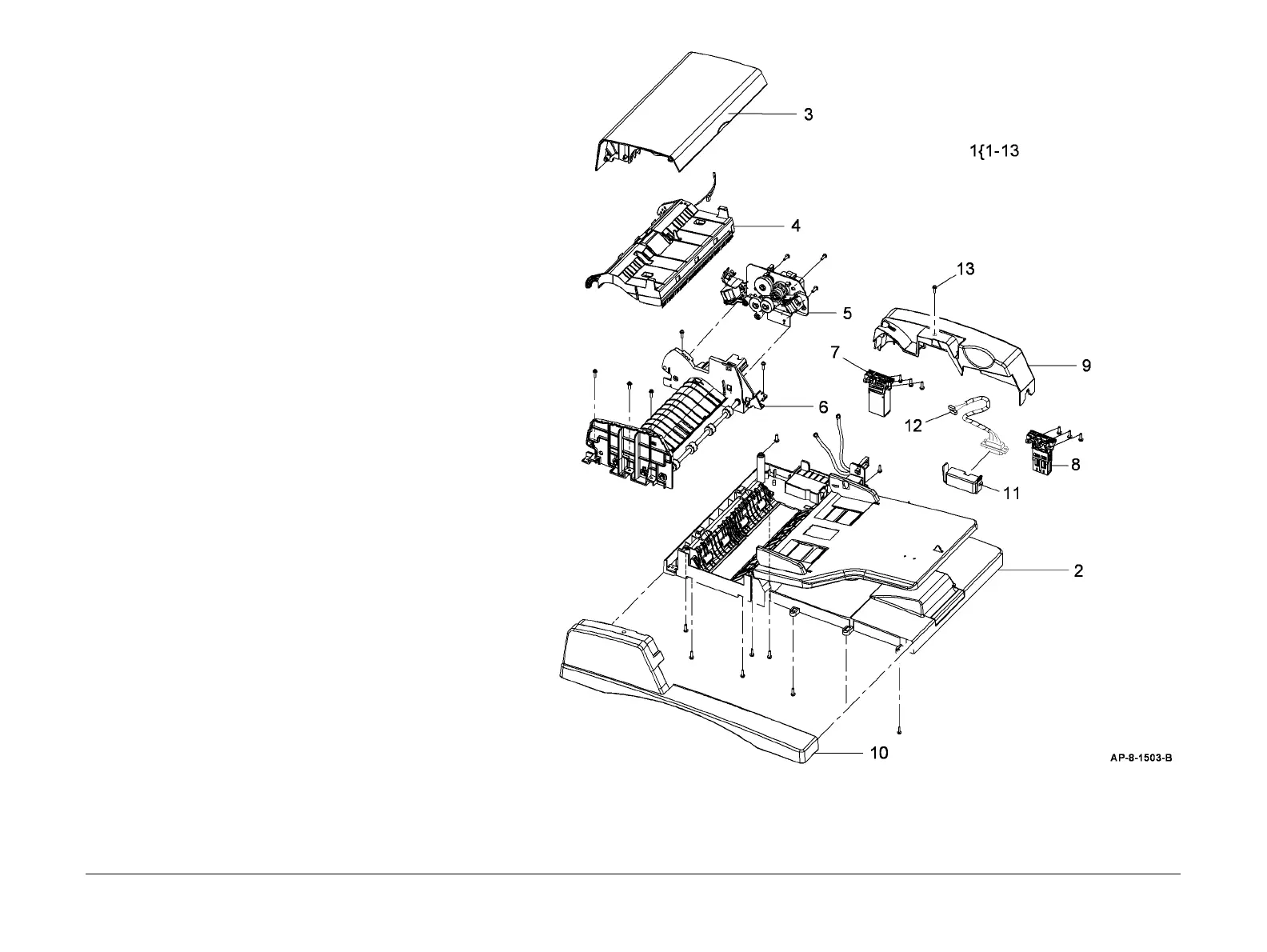

PL 5.10 DADF (1 of 7)
Item Part Description
1 101N01421 DADF (Complet)e (3635)
– 101N01451 DADF (Complet)e (3550)
2 – DADF lower cover assembly (P/O
PL 5.10 Item 1)
3 – DADF door assembly (REF: PL
5.25 Item 1)
4 – Feed assembly (REF: PL 5.30 Item
1)
5 – Drive assembly (REF: PL 5.40 Item
1)
6 – Transport assembly (REF: PL 5.35
Item 14)
7 003N01031 Left counterbalance
8 003N00967 Right counterbalance (3550)
– 003N01018 Right counterbalance (3635)
9 – Rear cover (P/O PL 5.10 Item 1)
10 – Front cover (P/O PL 5.10 Item 1)
11 002N02720 Connector cover
12 152N11751 DADF harness
13 – Screw (Not Spared) (3550)
