Phaser 3635MFP/WorkCentre 3550
PL 8.15
Parts Lists

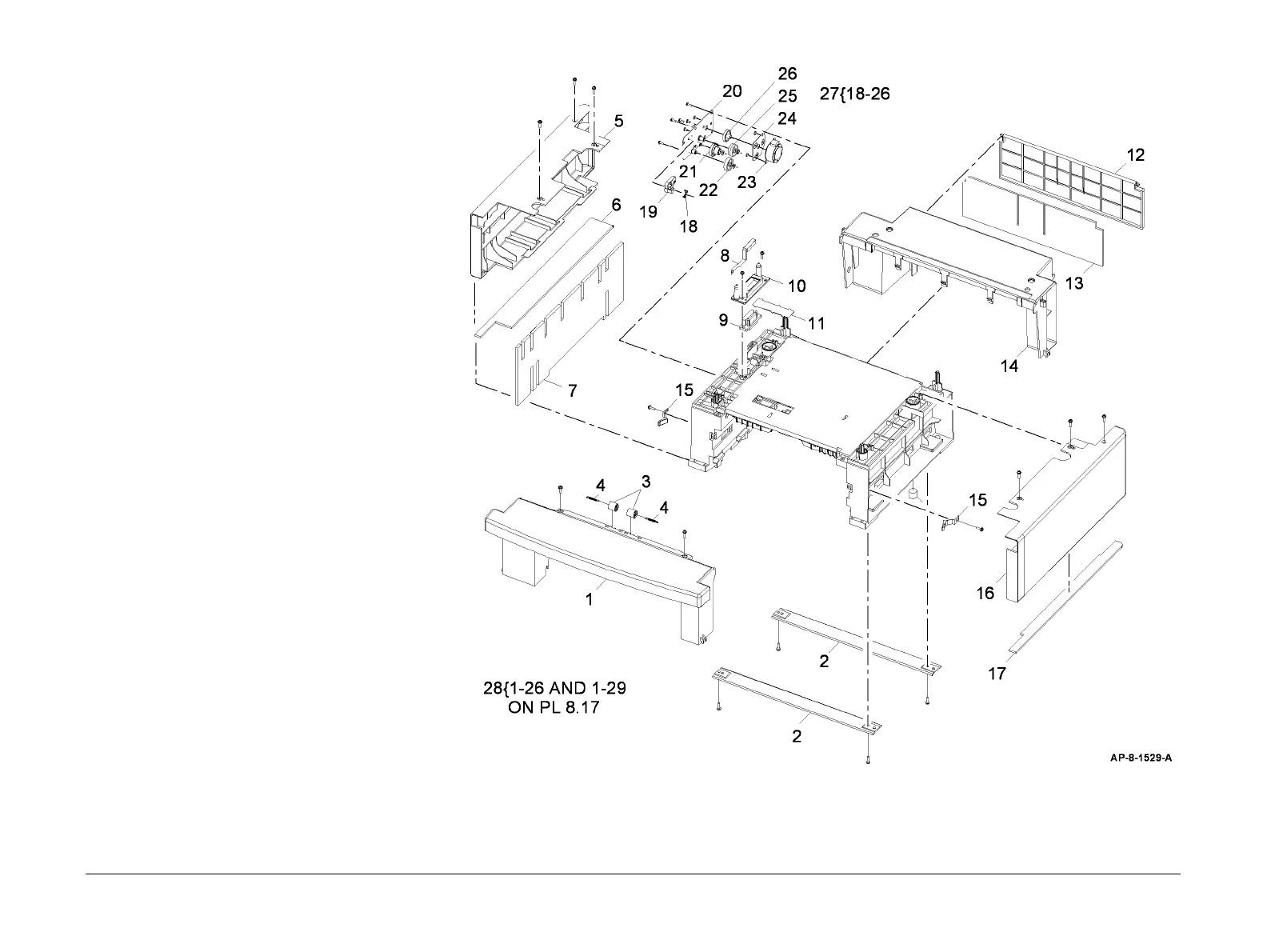

PL 8.15 Tray 2 Assembly (1 of 2)
Item Part Description
1 – Front cover (P/O PL 8.15 Item 28)
2 – Bottom cross bar (P/O PL 8.15 Item
28)
3 – Feed roll idler (P/O PL 8.15 Item
28)
4 – Feed roll idler spring (P/O PL 8.15
Item 28)
5 – Left cover (P/O PL 8.15 Item 28)
6 – Left lower noise insulation (P/O PL
8.15 Item 28)
7 – Left cover noise insulation (P/O PL
8.15 Item 28)
8 – Ground strip (P/O PL 8.15 Item 28)
9 – Tray 2 connector (P/O PL 8.15 Item
28)
10 – Tray 2 connector holder (P/O PL
8.15 Item 28)
11 – Tray 2 paper empty sensor cover
(P/O
PL 8.15 Item 28)
12 – Rear noise insulation cover (P/O PL
8.15 Item 28)
13 – Rear noise insulation (P/O PL 8.15
Item 28)
14 – Rear cover (P/O PL 8.15 Item 28)
15 –Catch (P/O PL 8.15 Item 28)
16 – Right cover (P/O PL 8.15 Item 28)
17 – Right lower noise insulation (P/O
PL 8.15 Item 28)
18 – Idler gear 1 (P/O PL 8.15 Item 27)
19 – Idler gear clip (P/O PL 8.15 Item
27)
20 – Drive assembly bracket (P/O PL
8.15 Item 27)
21 – Idler gear 2 (P/O PL 8.15 Item 27)
22 – Idler gear 3 (P/O PL 8.15 Item 27)
23 – Tray 2 feed motor (MOT07-210) (P/
O
PL 8.15 Item 27) (REP 7.4)
24 – Tray 2 feed motor bracket (P/O PL
8.15 Item 27)
25 – Idler gear 4 (P/O PL 8.15 Item 27)
26 – Idler gear 5 (P/O PL 8.15 Item 27)
27 127N07563 Tray 2 drive assembly
28 050N00537 Tray 2 assembly (Complet)e
