April 2010
5-14
Phaser 3635MFP/WorkCentre 3550
PL 5.35
Parts Lists

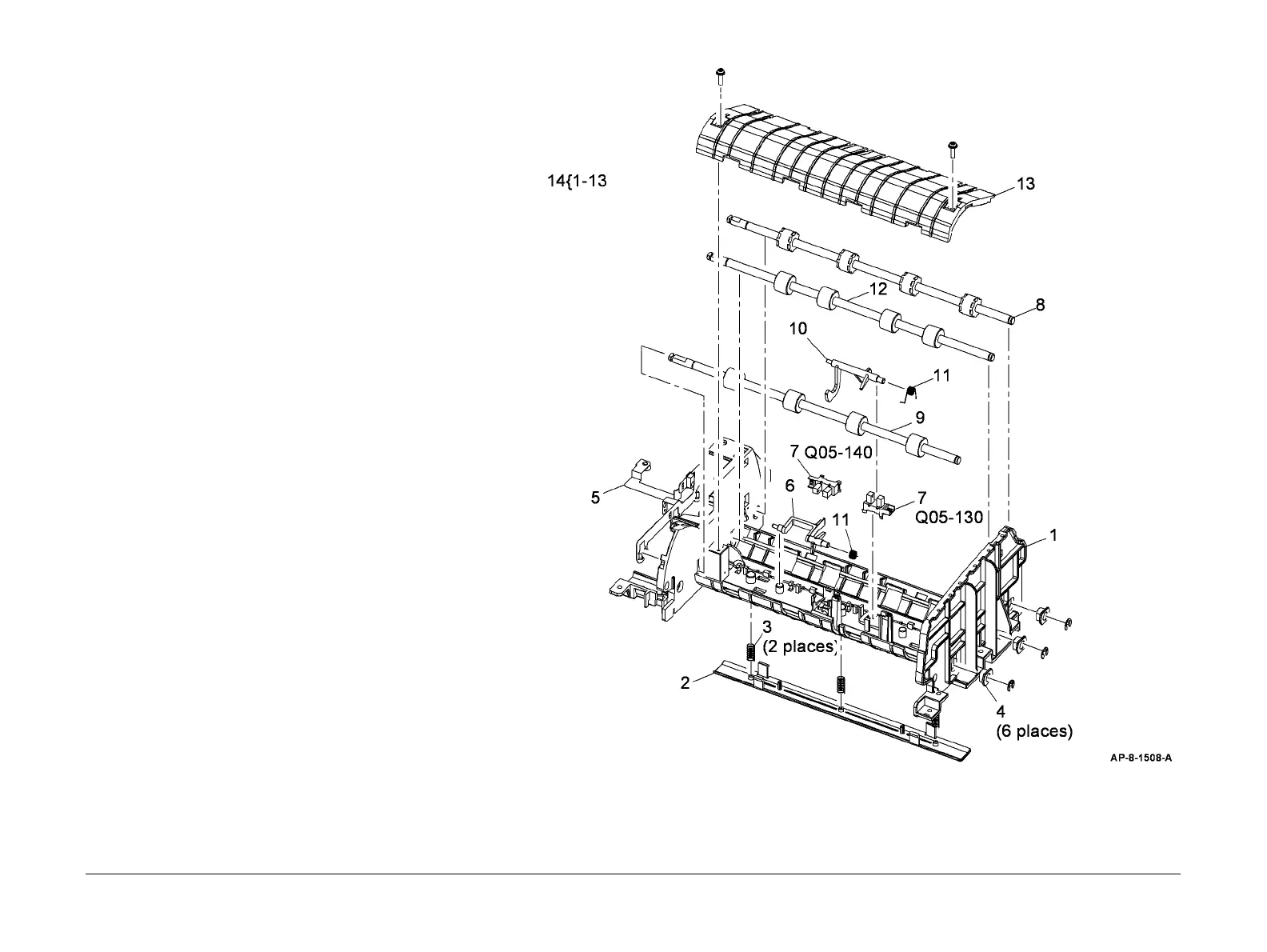

PL 5.35 DADF (6 of 7)
Item Part Description
1 – Transport assembly frame (P/O PL
5.10 Item 1)
2 – White bar plate (P/O PL 5.10 Item
1)
3 – White bar plate spring (P/O PL 5.10
Item 1)
4 – Bearing (P/O PL 5.10 Item 1)
5 – Ground strip (P/O PL 5.10 Item 1)
6 – Scan sensor actuator (P/O PL 5.10
Item 1)
7 130N01601 Registration sensor (Q05-130)
(
REP 5.3), Scan sensor (Q05-140)
(REP 5.3)
8 – Exit roll (P/O PL 5.10 Item 1)
9 – Registration roll (P/O PL 5.10 Item
1)
10 – Registration sensor actuator (P/O
PL 5.10 Item 1)
11 – Registration sensor actuator spring
(P/O
PL 5.10 Item 1)
12 – Scan roll (P/O PL 5.10 Item 1)
13 – Upper cover (P/O PL 5.10 Item 1)
14 022N02360 Document transport assembly
(Complet)e (3635) (
REP 5.4)
– 022N02475 Document transport assembly
(Complet)e (3550) (
REP 5.4)
