Xerox WorkCentre 3550 - PL 5.40 DADF (7 of 7)

April 2010
5-15
Phaser 3635MFP/WorkCentre 3550
PL 5.40
Parts Lists

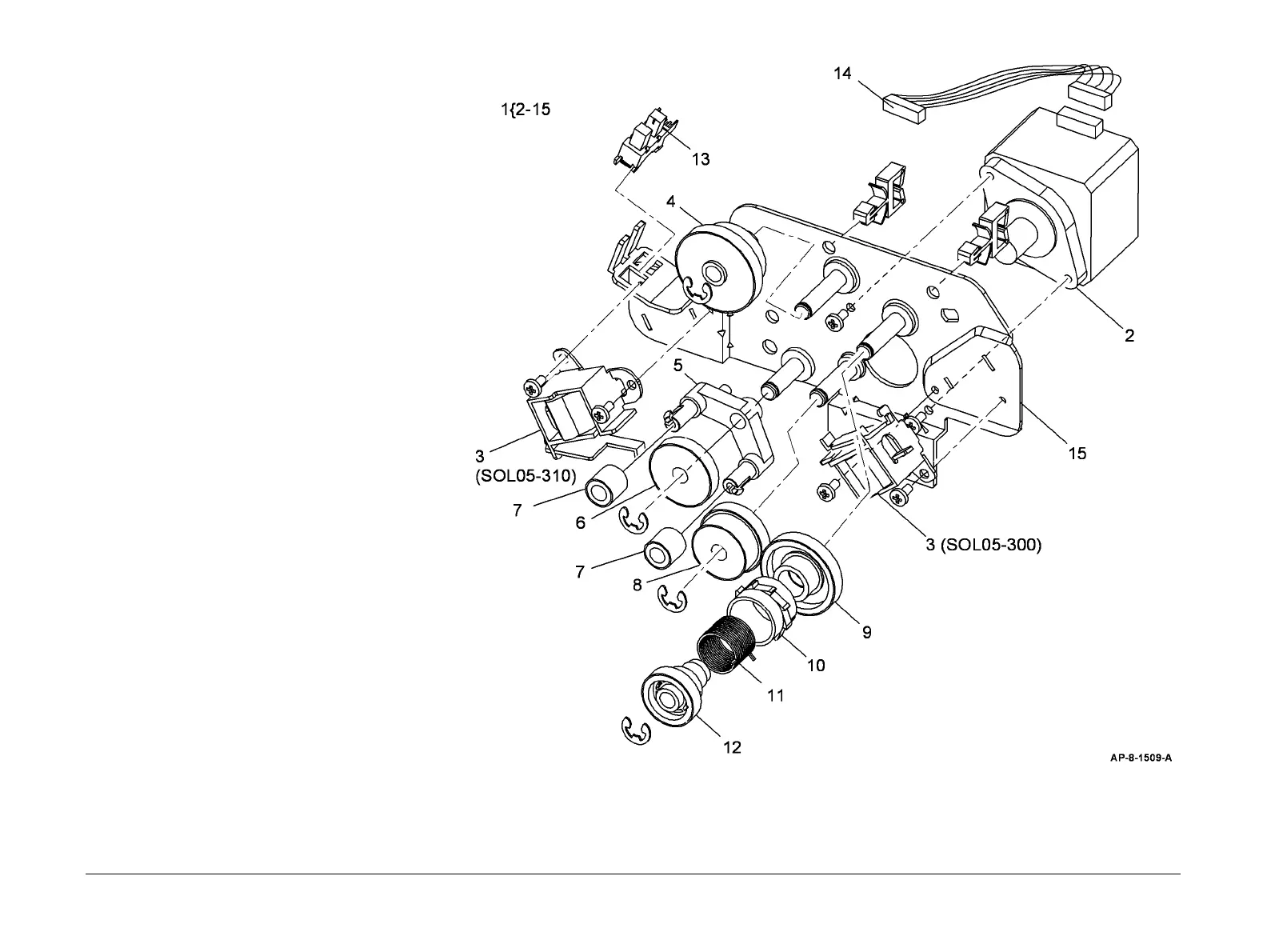

PL 5.40 DADF (7 of 7)
Item Part Description
1 007N01595 Drive assembly (Complet)e (REP
5.5)
2 127N07562 Scan motor (MOT05-200) (REP
5.5)
3 121N01161 Registration solenoid (SOL05-310)
(
REP 5.5), Pickup solenoid
(SOL05-300) (REP 5.5)
4 – Pickup idler gear (P/O PL 5.40 Item
1)
5 – Swing bracket (P/O PL 5.40 Item 1)
6 – Swing bracket feed gear idler (P/O
PL 5.40 Item 1)
7 – Swing bracket pickup gear idler (P/
O
PL 5.40 Item 1)
8 – Feed gear idler (P/O PL 5.40 Item
1)
9 – Lower pickup gear idler (P/O PL
5.40 Item 1)
10 – Pickup collar (P/O PL 5.40 Item 1)
11 – Spring (P/O PL 5.40 Item 1)
12 – Upper pickup gear idler (P/O PL
5.40 Item 1)
13 – DADF door open sensor (Q05-160)
(P/O
PL 5.40 Item 1) (REP 5.1)
14 – Motor harness (P/O PL 5.40 Item 1)
15 – Drive bracket (P/O PL 5.40 Item 1)
