Xerox WorkCentre 3550 - PL 10.12 Fuser Assembly (2 of 3)

April 2010
5-27
Phaser 3635MFP/WorkCentre 3550
PL 10.12
Parts Lists

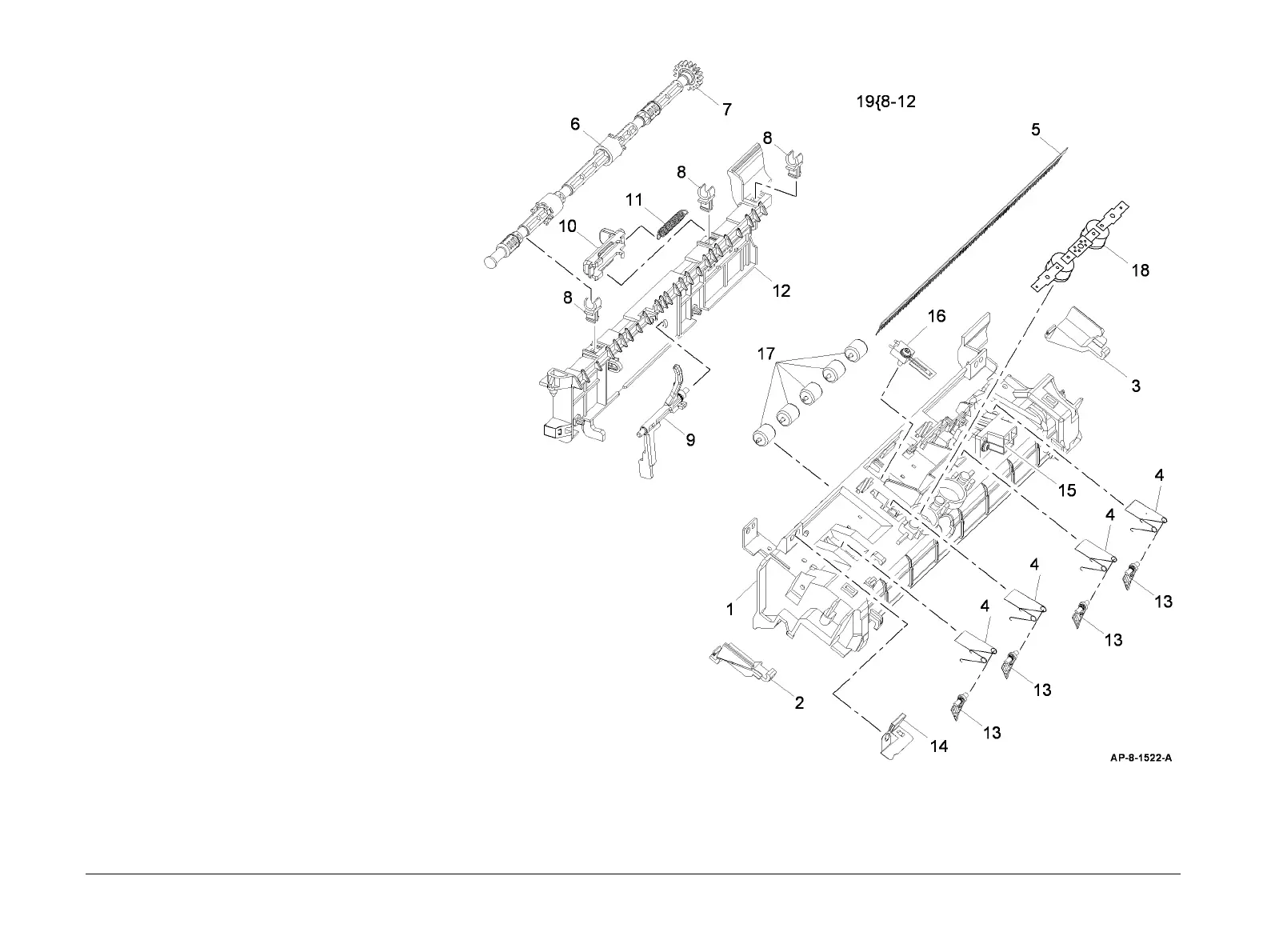

PL 10.12 Fuser Assembly (2 of 3)
Item Part Description
1 – Upper cover (P/O PL 10.10 Item 1)
2 – Left lamp cap (P/O PL 10.10 Item
1)
3 – Right lamp cap (P/O PL 10.10 Item
1)
4 – Stripper finger spring (P/O PL 10.10
Item 1)
5 – Static eliminator (P/O PL 10.10 Item
1)
6 – Fuser exit roll (P/O PL 10.10 Item
1)
7 – Exit gear (P/O PL 10.10 Item 1)
8 – Exit roll holder (P/O PL 10.12 Item
19)
9 – Fuser exit sensor actuator (P/O PL
10.12 Item 19)
10 – Release latch (P/O PL 10.12 Item
19)
11 – Release latch spring (P/O PL 10.12
Item 19)
12 – Fuser door (P/O PL 10.12 Item 19)
13 – Stripper finger (P/O PL 10.10 Item
1)
14 – Ground strip (P/O PL 10.10 Item 1)
15 – Fuser connector (P/O PL 10.10
Item 1)
16 130N01489 Thermistor
17 – Idler (P/O PL 10.10 Item 1)
18 130N01490 Thermostat
19 126N00292 Fuser door (Complet)e
