Phaser 3635MFP/WorkCentre 3550
PL 10.25
Parts Lists

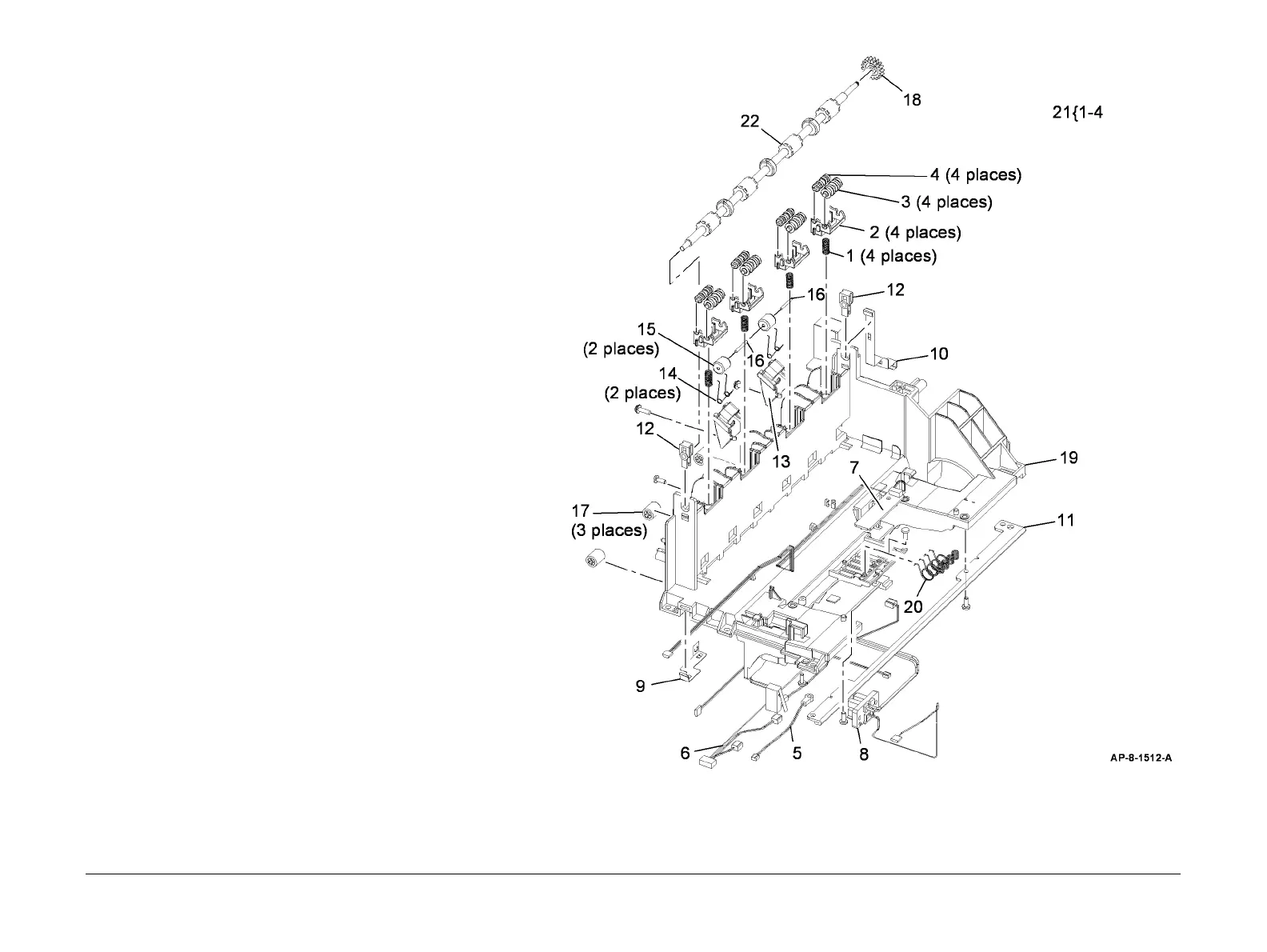

PL 10.25 Exit Feed Assembly
Item Part Description
1 – Exit idler spring (P/O PL 10.25 Item
21)
2 – Exit idler holder (P/O PL 10.25 Item
21)
3 – Primary exit idler (P/O PL 10.25
Item 21)
4 – Secondary exit idler (P/O PL 10.25
Item 21)
5 130N01531 Thermistor 1
6 – Thermistor harness (Not Spared)
7 – CRUM PWB (REF: PL 9.10 Item 7)
8 152N11754 Fuser terminal (REP 10.5)
9 – Ground strip (Not Spared)
10 – Ground strip (Not Spared)
11 – LSU support plate (Not Spared)
12 – Exit roll holder (Not Spared)
13 – Transport roll idler holder (Not
Spared)
14 – Transport roll idler spring (Not
Spared)
15 – Transport roll idler (Not Spared)
16 – Transport roll idler shaft (Not
Spared)
17 – Document path idler roll (Not
Spared)
18 – Exit roll gear (Not Spared)
19 – Main housing (Not Spared)
20 – Housing spring (Not Spared)
21 022N02344 Idler assembly (REP 10.4)
22 –Exit roll
