Xerox WorkCentre 3550 - PL 14.10 Scanner Assembly (3635)

April 2010
5-35
Phaser 3635MFP/WorkCentre 3550
PL 14.10
Parts Lists

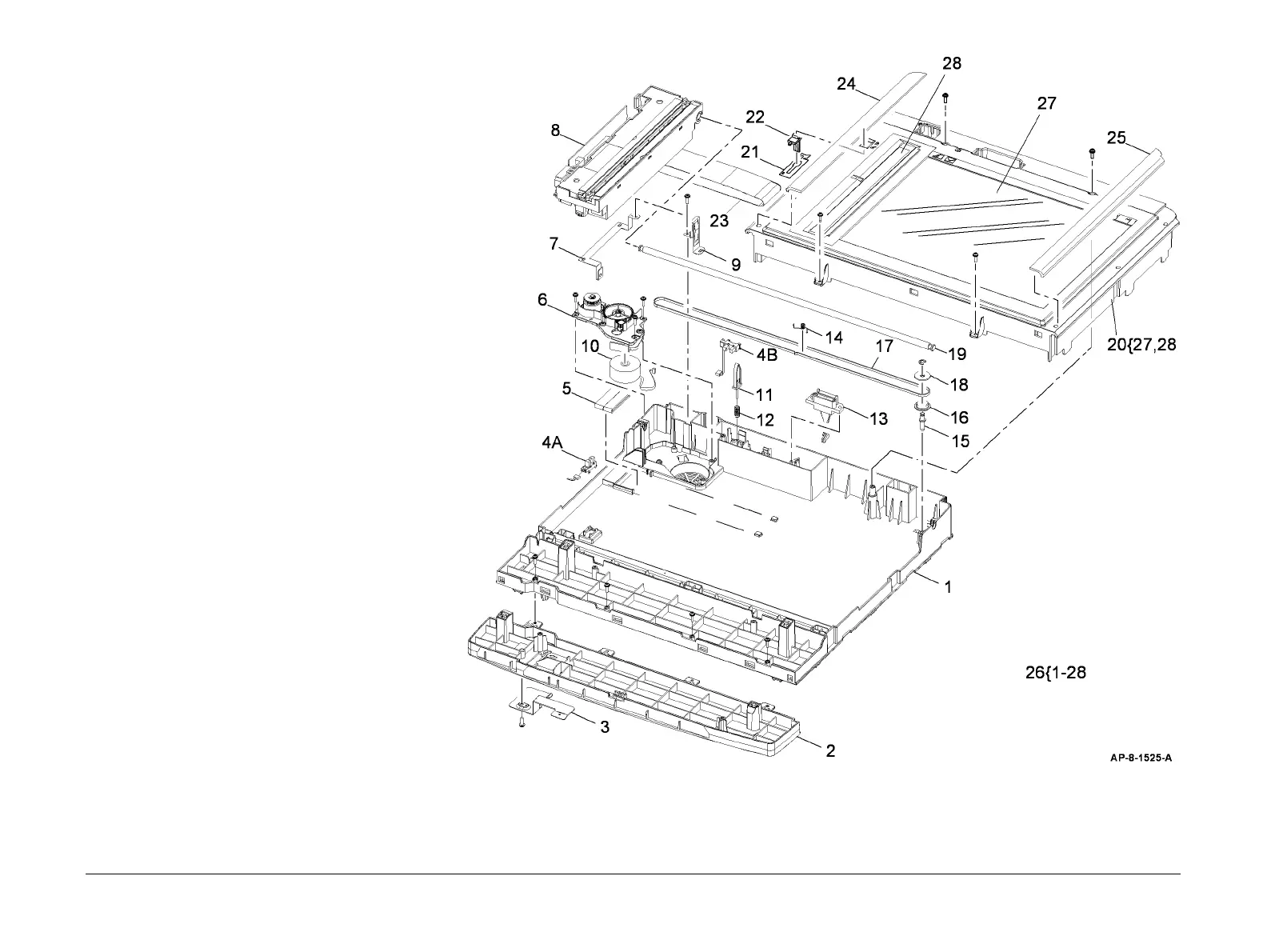

PL 14.10 Scanner Assembly (3635)
Item Part Description
1 – Scanner base (P/O PL 14.10 Item
26)
2 – UI base (P/O PL 14.10 Item 26)
3 – LCD support (P/O PL 14.10 Item
26)
4 130N01601 CCD home sensor (A), Platen
cover sensor (B) (
REP 14.2)
5 – Ferrite (P/O PL 14.10 Item 26)
6 127N07564 Scan motor drive assembly
7 – Ground strip (P/O PL 14.10 Item
26)
8 133N23230 CCD module (REP 14.2)
9 – Ground strip (P/O PL 14.10 Item
26)
10 127N07561 Scan motor
11 – Platen cover sensor actuator (P/O
PL 14.10 Item 26)
12 – Platen cover sensor actuator spring
(P/O
PL 14.10 Item 26)
13 152N11750 DADF connector
14 – Drive belt spring (P/O PL 14.10
Item 26)
15 – Pulley shaft (P/O PL 14.10 Item 26)
16 – Pulley (lower) (P/O PL 14.10 Item
26)
17 109N00542 CCD module belt
18 – Pulley (upper) (P/O PL 14.10 Item
26)
19 – CCD module guide rail (P/O PL
14.10 Item 26)
20 002N02719 Scanner cover (REP 14.2)
21 – Scanner lock bracket (P/O PL
14.10 Item 26)
22 – Scanner lock (P/O PL 14.10 Item
26)
23 117N01788 CCD module cable
24 – Left trim (P/O PL 14.10 Item 26)
25 – Right trim (P/O PL 14.10 Item 26)
26 109N00688 Scanner assembly (Complet)e
(
REP 14.1)
27 – Document glass (P/O PL 14.10
Item 20)
28 – CVT glass (P/O PL 14.10 Item 20)
