Xerox WorkCentre 3550 - PL 8.10 Paper Tray

April 2010
5-20
Phaser 3635MFP/WorkCentre 3550
PL 8.10
Parts Lists

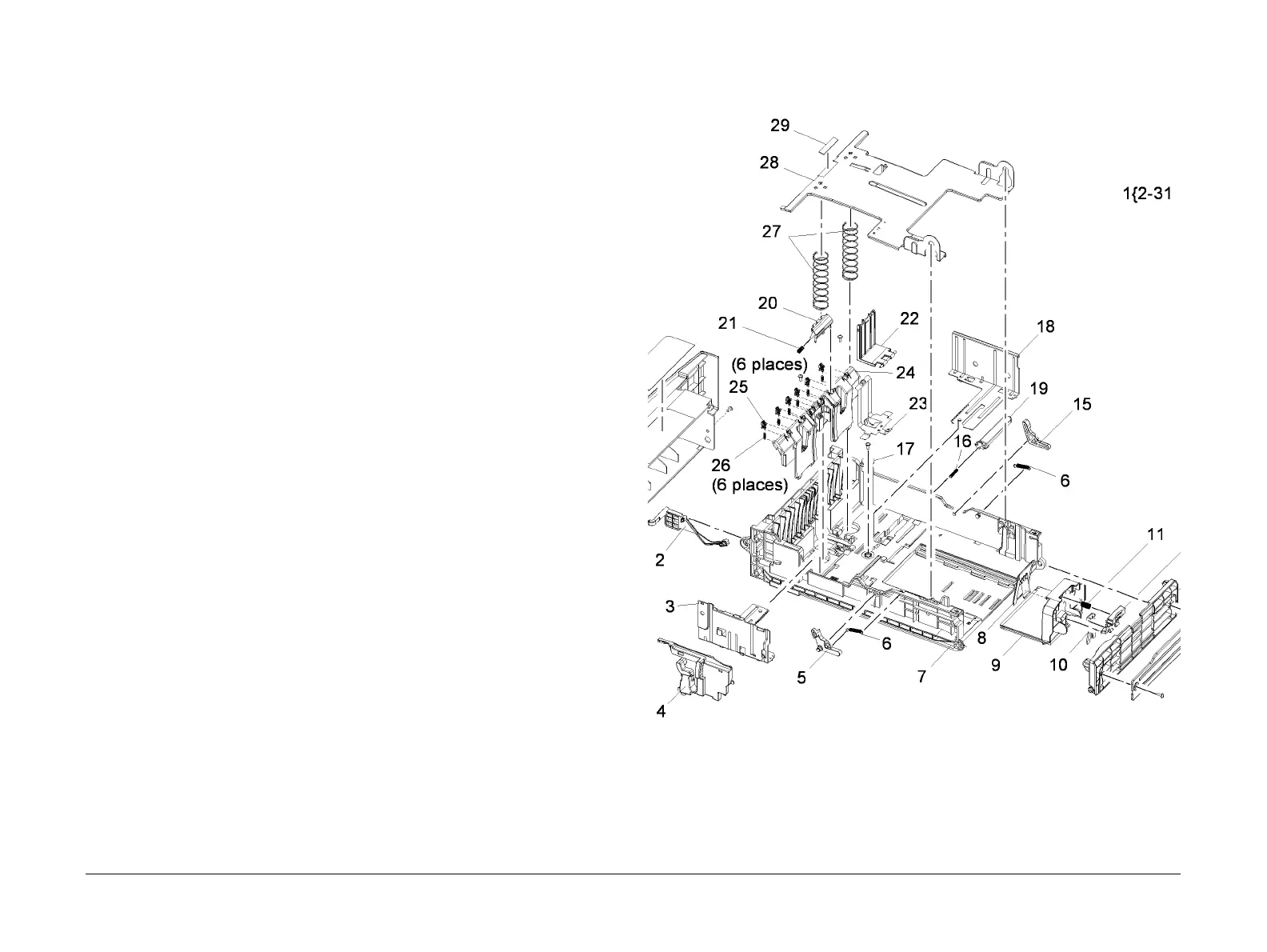

PL 8.10 Paper Tray
Item Part Description
1 050N00518 Paper tray (Complet)e
2 – Tray empty indicator (P/O PL 8.10 Item 1)
3 – Right width paper guide (P/O PL 8.10 Item 1)
4 – Right width paper guide lock assembly (P/O PL 8.10 Item 1)
5 – Right tray down lever (P/O PL 8.10 Item 1)
6 – Tray down lever spring (P/O PL 8.10 Item 1)
7 – Tray frame (P/O PL 8.10 Item 1)
8 – Paper length guide spring (P/O PL 8.10 Item 1)
9 – Paper length guide (P/O PL 8.10 Item 1)
10 – Paper length guide lower lock (P/O PL 8.10 Item 1)
11 – Paper length guide spring (P/O PL 8.10 Item 1)
12 – Paper length guide upper lock (P/O PL 8.10 Item 1)
13 – Tray extension (P/O PL 8.10 Item 1)
14 – Tray extension bracket (P/O PL 8.10 Item 1)
15 – Left tray down lever spring (P/O PL 8.10 Item 1)
16 – Lift plate actuator spring (P/O PL 8.10 Item 1)
17 – Pinion gear (P/O PL 8.10 Item 1)
18 – Left width paper guide (P/O PL 8.10 Item 1)
19 – Lift plate actuator (P/O PL 8.10 Item 1)
20 019N00947 Retard pad assembly
21 – Retard pad holder spring (P/O PL 8.10 Item 1)
22 – Retard pad holder housing (P/O PL 8.10 Item 1)
23 – Ground strip (P/O PL 8.10 Item 1)
24 – Paper exit frame (P/O PL 8.10 Item 1)
25 055N00297 Lead edge guide
26 009N01604 Lead edge guide spring
27 – Lift plate spring (P/O PL 8.10 Item 1)
28 – Lift plate (P/O PL 8.10 Item 1)
29 – Pad (P/O PL 8.10 Item 1)
30 – Label (P/O PL 8.10 Item 1)
31 – Front cover (P/O PL 8.10 Item 1)
