Xerox WorkCentre 3550 - PL 10.20 Duplex Drive Assembly

April 2010
5-29
Phaser 3635MFP/WorkCentre 3550
PL 10.20
Parts Lists

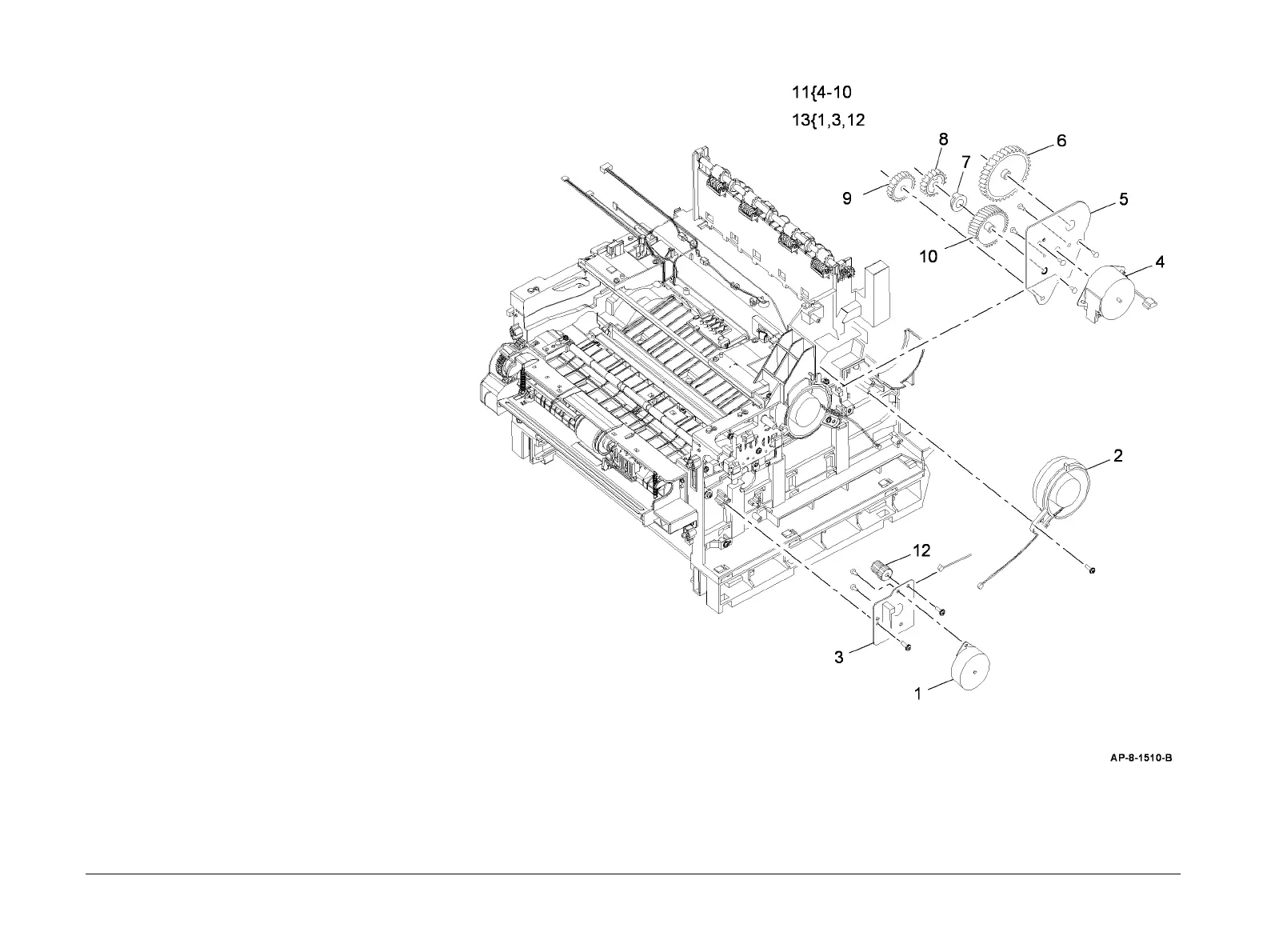

PL 10.20 Duplex Drive Assembly
Item Part Description
1 127N07558 Duplex motor (MOT04-300) (REP
10.1)
2 127N07583 Fuser fan
3 – Duplex motor bracket (P/O PL
10.20 Item 13)
4 127N07560 Exit motor (MOT04-200) (REP
10.2)
5 – Exit motor bracket (P/O PL 10.20
Item 11)
6 – Exit motor gear idler (P/O PL 10.20
Item 11)
7 – Exit motor clutch (P/O PL 10.20
Item 11)
8 – Exit motor clutch gear (P/O PL
10.20 Item 11)
9 – Fuser connection gear (P/O PL
10.20 Item 11)
10 – Exit motor intermediate gear (P/O
PL 10.20 Item 11)
11 007N01594 Exit drive assembly (REP 10.2)
12 – Duplex drive gear (P/O PL 10.20
Item 13)
13 007N01592 Duplex drive assembly (REP 10.1)
