April 2010
6-34
Phaser 3635MFP/WorkCentre 3550
dC109
General Procedures/Information

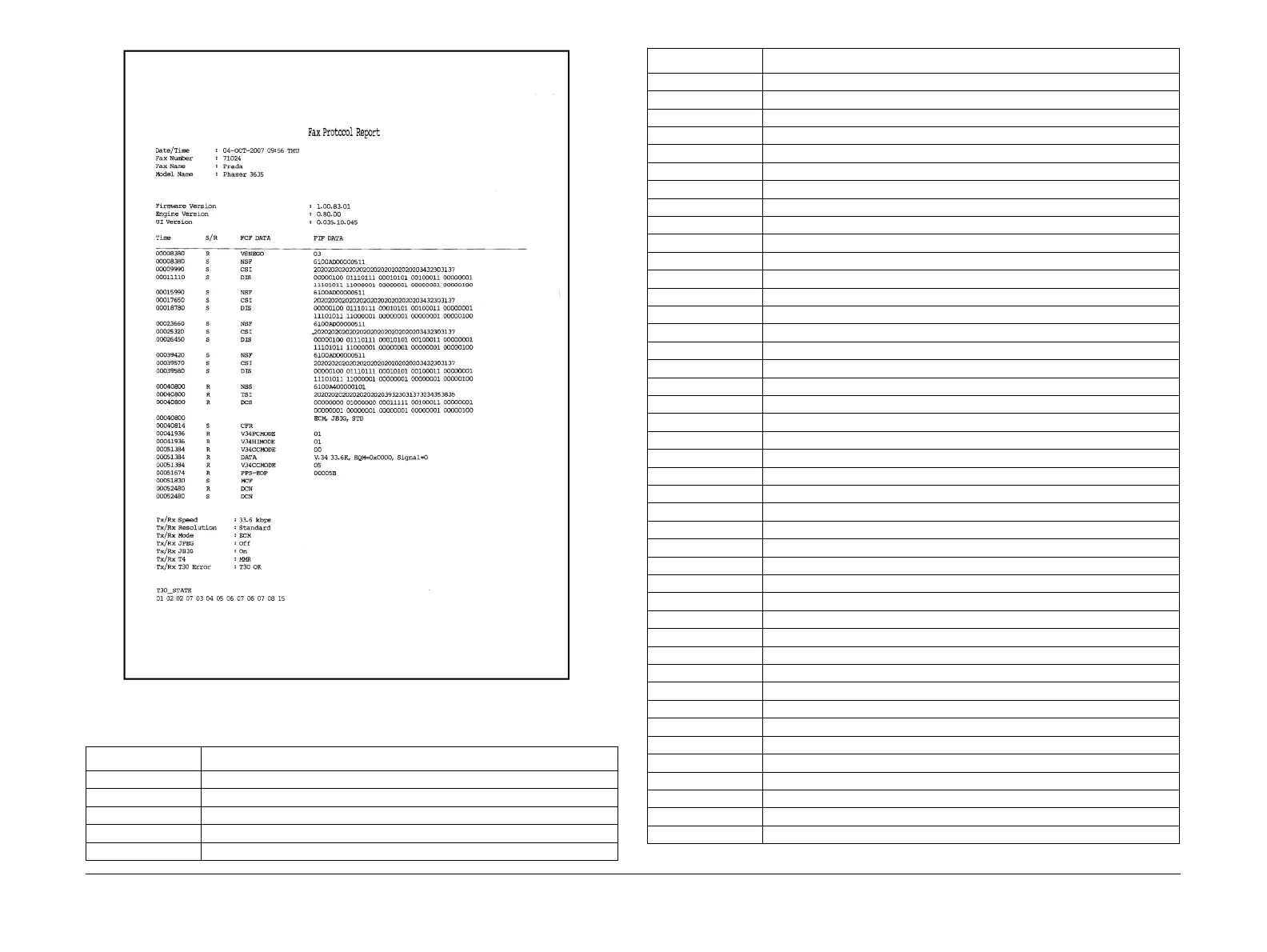

Figure 1 Fax protocol report
Table 1 Abbreviations
Term Description
ANSam Modulated answer tone
CED Called terminal identification
CFR Confirmation to receive
CI Call indicator
CIG Calling subscriber indentation
CJ CM terminator
CM Call menu
CNG Calling tone
CRP Command repeat
CSI Called subscriber identified
CTC Continue to correct
CTR Response for continue to correct
DCN Disconnect
DCS Digital command signal
DIS Digital identification signal
DTC Digital transmit command
EOM End of message
EOP End of procedure
EOR End of retransmission
ERR Response for end of transmission
FCF Facsimile control field
FIF Facsimile information field
FTT Failure to train
JM Joint menu
MCF Message confirmation
MPS Multi page signal
NSC Non to standard facilities command
NSF Non to standard facilities
NSS Non to standard setup
PID Procedure interrupt
PIN Procedure interrupt negative
PIP Procedure interrupt positive
PPS Partial page signal
PPR Partial page request
PRI-EOM Procedure interrupt to EOM
PRI-EOP Procedure interrupt to EOP
PRI-MPS Procedure interrupt to MPS
PWD Password for (polling)
PWD Password for (transmission)
RCP Return to control for partial page
RNR Receive not ready
RR Receive ready
RTN Retrain negative
RTP Retrain positive
SEP Selective polling
SUB Subaddress
TCF Training check
TSI Transmitting subscriber identification
Table 1 Abbreviations
