4-23
E
FUEL
FUEL INJECTION SYSTEM
c. Turn synchronizing screw #1
3
clock-
wise approximately 7 times until it starts
to contact the lever.
NOTE:
• Butterfly valve #1 should be fully closed.
Butterfly valves #2 and #3 open if the
screw is turned more than 7 times.
• If butterfly valves #1, #2, and #3 are not
fully closed, close the valves by adjusting
synchronizing screw #1
3
.
d. Turn synchronizing screw #3
5
clock-
wise approximately 7 times until it starts
to contact the lever.
NOTE:
• Butterfly valve #4 should be fully closed.
Butterfly valves #1, #2, and #3 open if the
screw is turned more than 7 times.
• If all butterfly valves are not fully closed,
close the valves by adjusting synchroniz-
ing screw #3
5
.
e. Check that all butterfly valves are fully
closed and that they open simulta-
neously.
NOTE:
If all butterfly valves are not fully closed,
close the valves by repeating steps a–d.
f. Turn the throttle stop screw
2
clockwise
approximately 1.5 times until it starts to
contact the throttle lever.

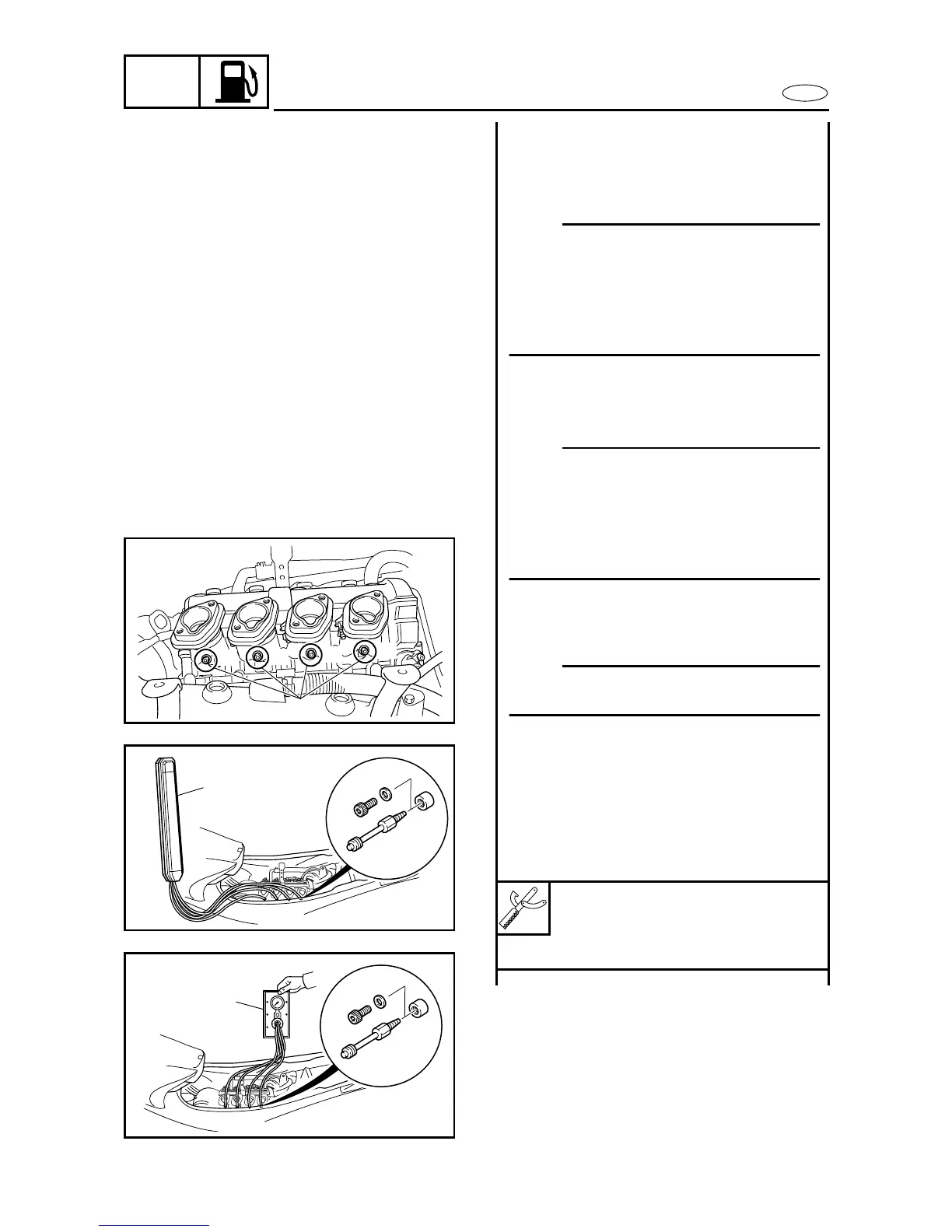

g. Remove the plugs
6
.
h. Install the carburetor synchronizer
7
or
vacuum gauge
8
.
È
For USA and Canada
É
For worldwide
Carburetor synchronizer:
YU-08030
Vacuum gauge:
90890-03094
6
#1
#2
#3
#4
7
È
8
É
