OIL PUMP

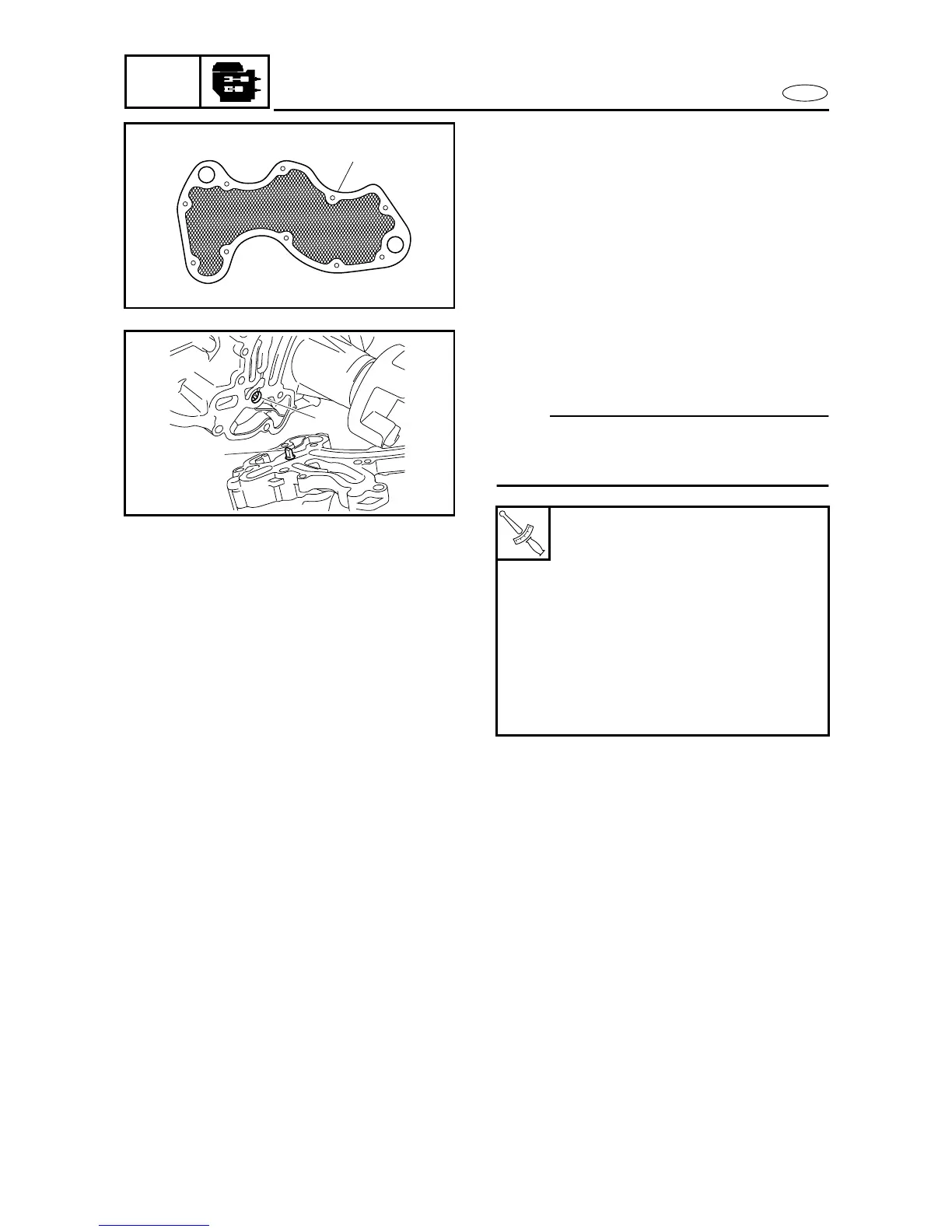

Oil strainer inspection
1. Check:
• Oil strainer
1
Damage
→
Replace.
Contaminants
→
Clean.
1
Oil pump installation
1. Install:
• Oil pump assembly
NOTE:
Align the projection
a on the oil pump shaft
with the slit b on the oil pump driven gear
shaft.
T
R
.
Oil pump assembly bolt:
M6:
10 N • m (1.0 kgf • m, 7.2 ft • lb)
LOCTITE 572
M8:
1st:
15 N • m
(1.5 kgf • m, 11 ft • lb)
2nd:
28 N • m
(2.8 kgf • m, 20 ft • lb)
LOCTITE 572
a
b
