STARTING SYSTEM
BATTERY
Refer to “ELECTRICAL” in Chapter 3.
WIRING CONNECTIONS
1. Check:
• Wiring connections
Poor connections
→
Properly connect.

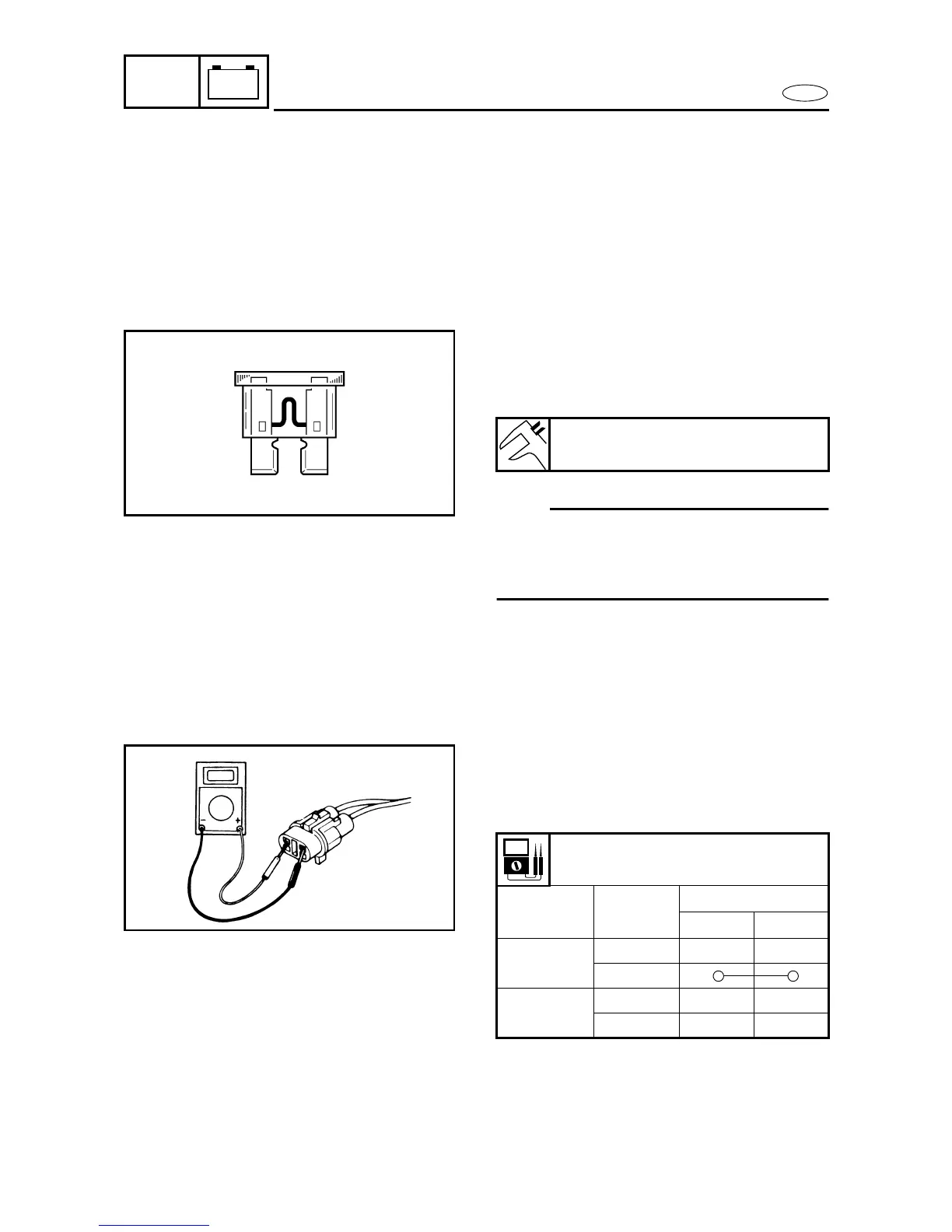

FUSE
1. Check:
• Fuse broken
Broken
→
Replace.
NOTE:
20A fuse is for main relay, engine shut-off
switch and rectifier/regulator.
3A fuse is for multifunction meter, electric bilge
pump, and remote control unit.
Fuse rating:
3A, 20A
START SWITCH
1. Check:
• Continuity
Out of specification
→
Replace.
Start continuity
(natural color coupler)
Clip Position
Leads
Red Brown
Installed
Free
Push
Removed
Free
Push
