IMPELLER DUCT AND IMPELLER HOUSING 1
IMPELLER DUCT AND IMPELLER HOUSING 1

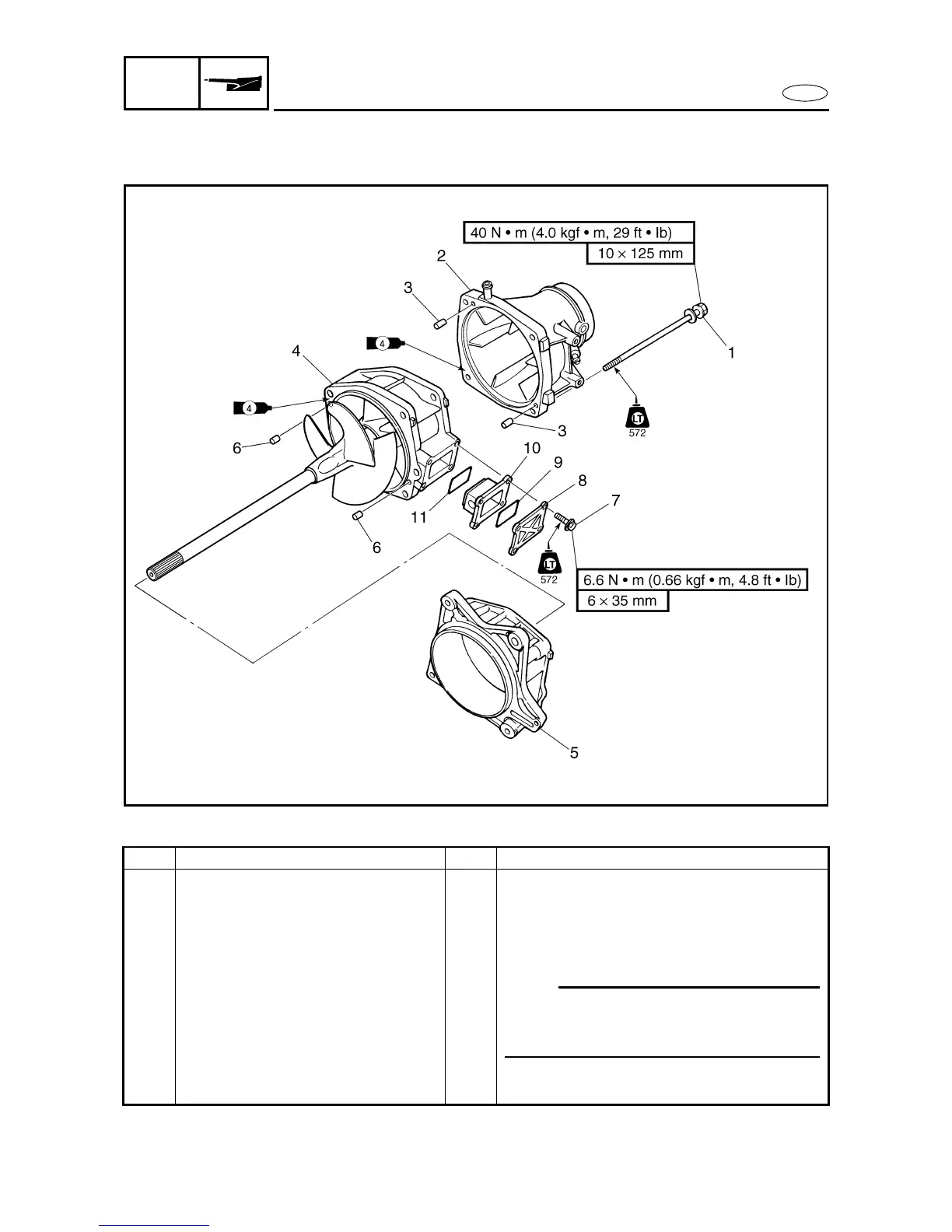

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
IMPELLER DUCT AND IMPELLER
HOUSING 1 REMOVAL
Follow the left “Step” for removal.
Nozzle ring Refer to “JET THRUST NOZZLE AND
NOZZLE RING”.
1Bolt 4
2Nozzle 1
NOTE:
Clean the contacting surfaces before apply-
ing the Yamabond #4 (Yamaha bond num-
ber 4).
3Pin 2
4 Impeller duct assembly 1
5 Impeller housing 1 1
6Pin 2
7Bolt 4
To Next Page
