Yamaha WaveRunner - Connecting Rods and Pistons

5-90
E
POWR
CONNECTING RODS AND PISTONS
CONNECTING RODS AND PISTONS

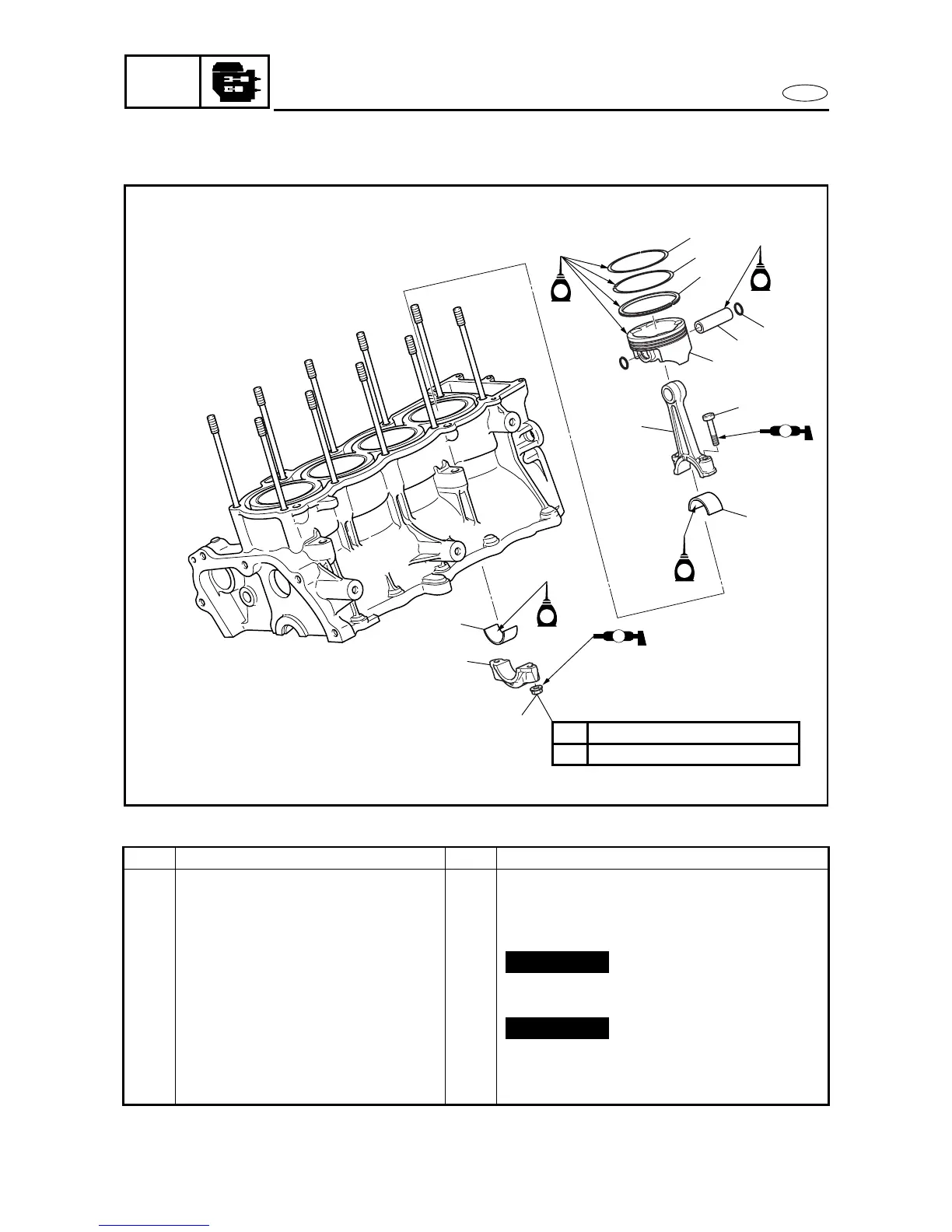

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CONNECTING RODS AND
PISTONS REMOVAL
Follow the left “Step” for removal.
Crankcase Separate
Refer to “CRANKCASE”.
1Nut 8
2 Connecting rod cap 4
3 Big end lower bearing 4
4 Piston pin clip 8
5 Piston pin 4
6Piston 4
7 Connecting rod 4
E
E
E
E
1
2
3
10
11
12
4
5
6
8
7
9
2nd 120 ± 5˚
1st 20 N • m (2.0
kgf
•
m, 14 ft
•
Ib)
MM
MM
Not reusable
Not reusable
