7-31
E
– +
ELEC
STARTING SYSTEM
STARTER RELAY
1. Inspect:
• Brown lead terminal
• Black lead terminal
Loose
→
Tighten.
2. Check:
• Starter relay
Faulty
→
Replace.
Checking steps:

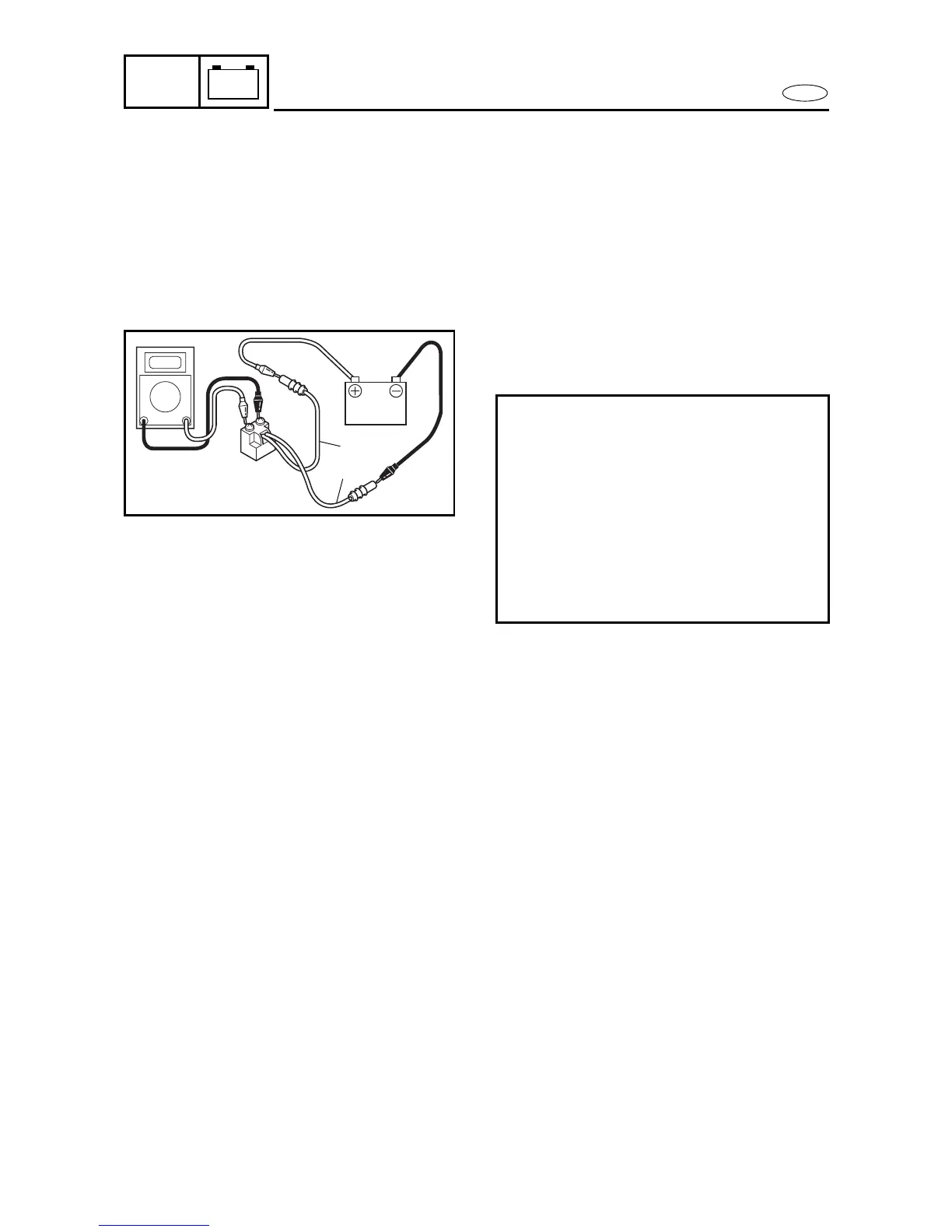

• Connect the tester leads between the
starter relay terminals as shown.
• Connect the brown lead terminal to the
positive battery terminal.
• Connect the black lead terminal to the
negative battery terminal.
• Check that there is continuity between
the starter relay terminals.
• Check that there is no continuity after the
brown or black lead is removed.
Br
B
REMOTE CONTROL UNIT
Refer to “REMOTE CONTROL SYS-
TEM”.
