49
E
– +
ELEC

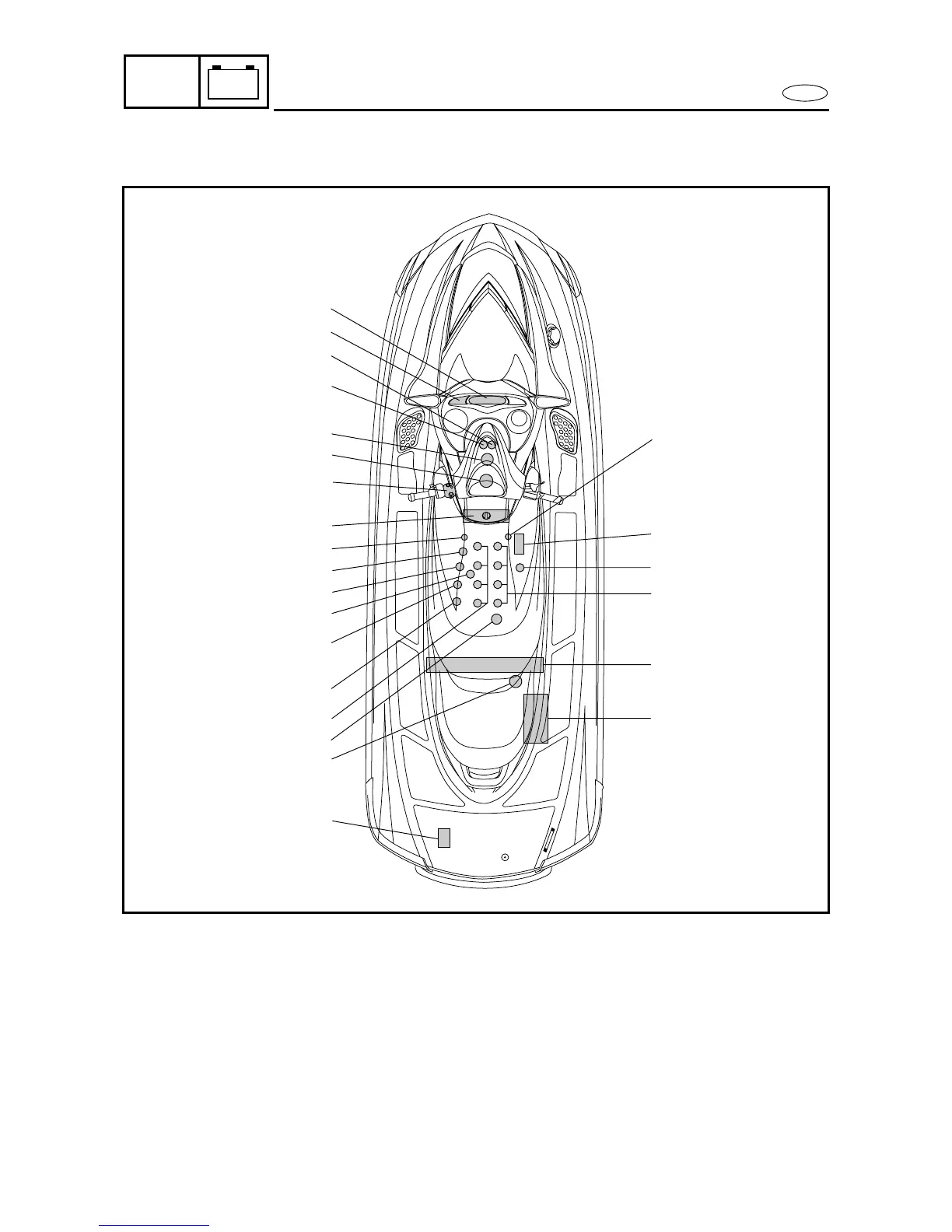

ELECTRICAL COMPONENTS (For FX/FX Cruiser)
ELECTRICAL COMPONENTS (For FX/FX Cruiser)
N
M
L
K
J
H
G
F
E
D
C
B
A
0
9
8
7
6
5
4
3
2
1
I
1 Thermoswitch (engine)
2 Starter motor
3 Engine temperature sensor
4 Spark plugs and ignition coils
5 Electrical box
6 Battery
7 Speed sensor
8 Electric bilge pump
9 Cam position sensor
0 Fuel injectors
A Thermoswitch (exhaust)
B Oil pressure switch
C Bypass valve motor
D Intake air pressure sensor
E Intake air temperature sensor
F Throttle position sensor
G Lighting coil and pickup coil
H Engine stop switch, engine
shut-off switch, and start
switch
I Steering sensor
J Buzzer
K Electric fuel pump
L Fuel level sensor
M Left operation button
N Multifunction meter
