Yamaha WaveRunner - Electrical Components (for FX High Output;Fx Cruiser High Output)

50
E
– +
ELEC
ELECTRICAL COMPONENTS (For FX High Output/
FX Cruiser High Output)

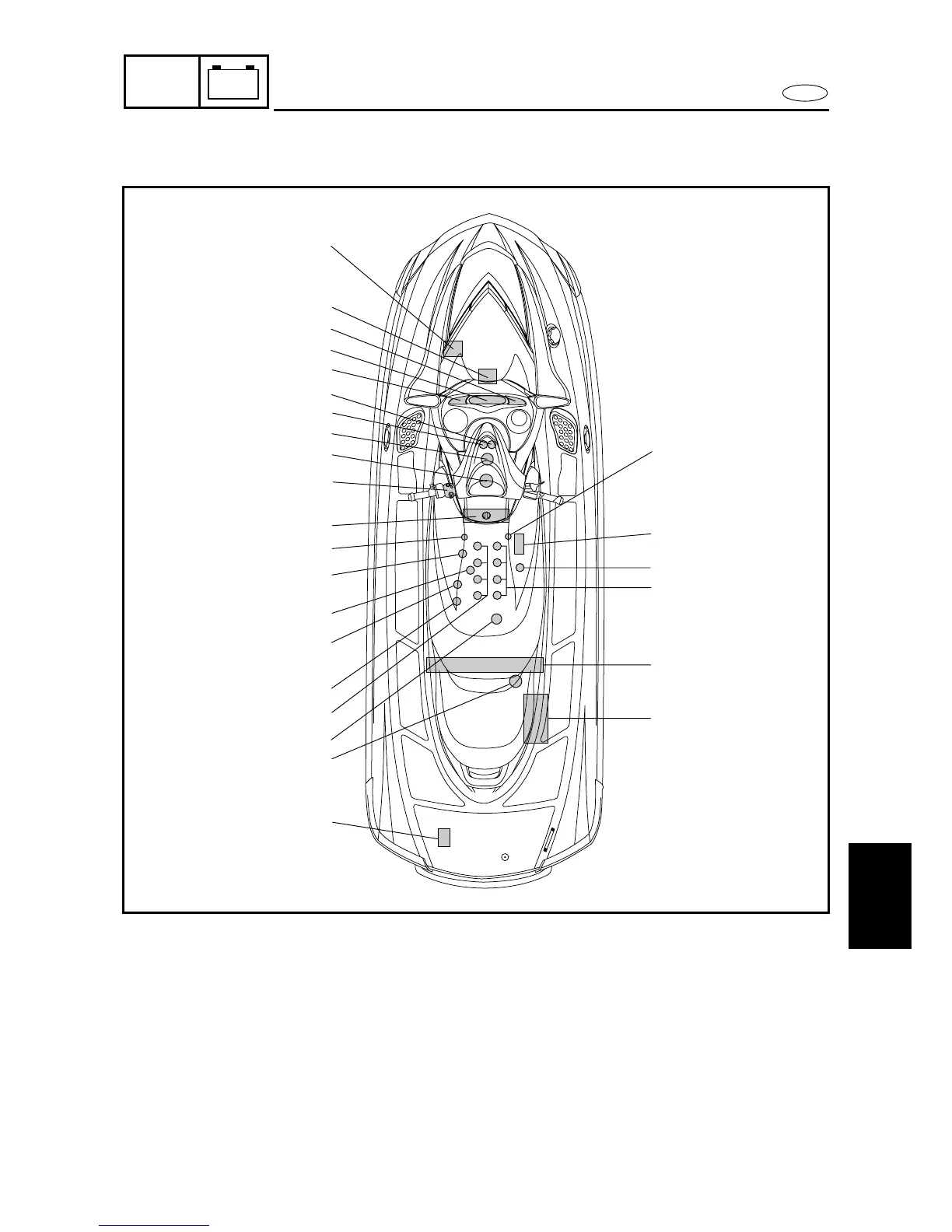

ELECTRICAL COMPONENTS
(For FX High Output/FX Cruiser High Output)
M
N
L
P
O
K
J
I
G
F
E
D
C
B
A
0
9
8
7
6
5
4
3
2
1
H
1 Thermoswitch (engine)
2 Starter motor
3 Engine temperature sensor
4 Spark plugs and ignition coils
5 Electrical box
6 Battery
7 Speed sensor and water tem-
perature sensor
(FX Cruiser High Output)
Speed sensor
(FX High Output)
8 Electric bilge pump
9 Cam position sensor
0 Fuel injectors
A Thermoswitch (exhaust)
B Oil pressure switch
C Sensor assembly (intake air
pressure and intake air tem-
perature sensor)
D Bypass valve motor
E Throttle position sensor
F Lighting coil and pickup coil
G Engine stop switch, engine
shut-off switch, and start
switch
H Steering sensor
I Buzzer
7
