5-40
E
POWR

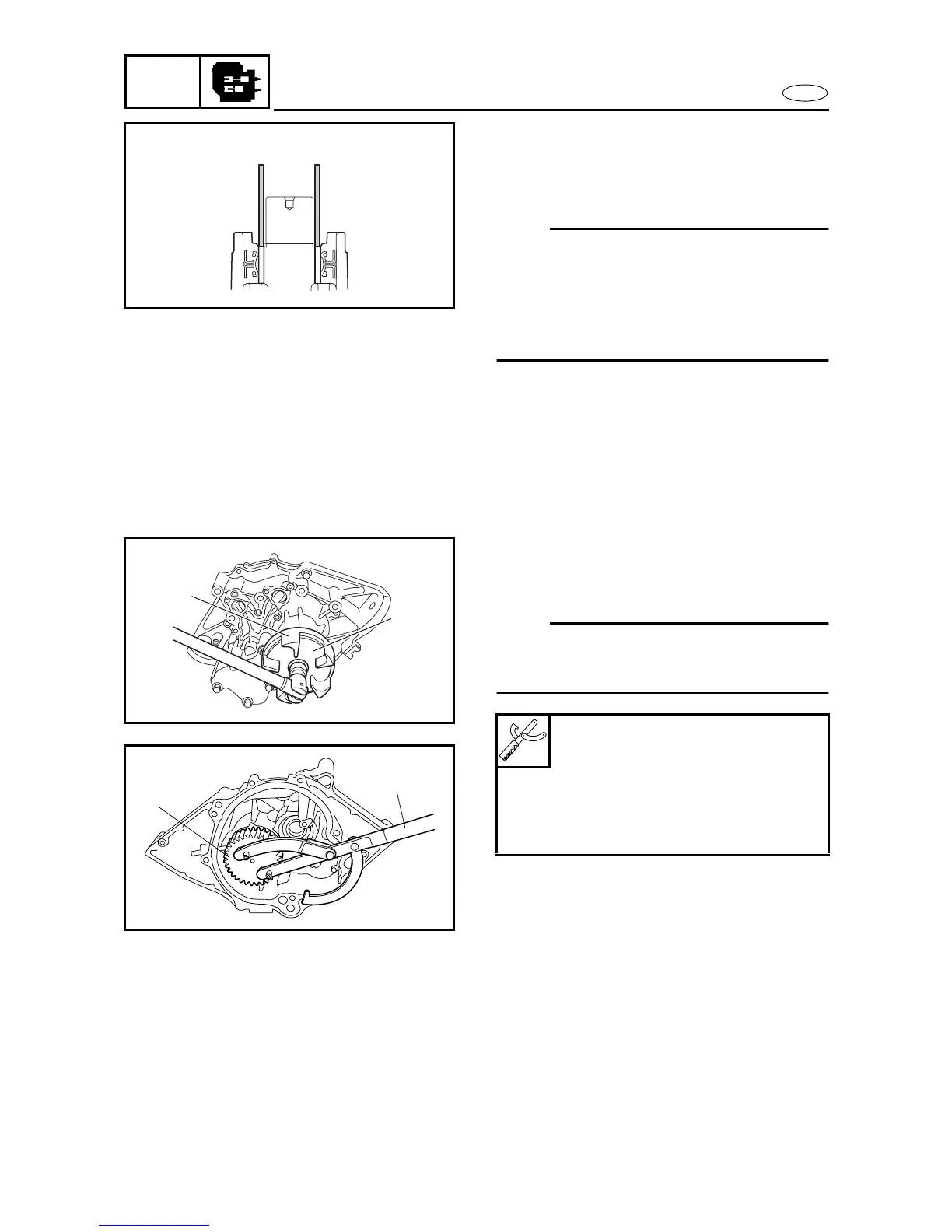

REDUCTION DRIVE GEAR
Drive shaft installation
1. Install:
• Drive shaft
• Collar
NOTE:
Press the into the reduction drive gear case
with a pipe that is more than 30 mm (1.18 in)
long, and which has an outer diameter of
approximately 35 mm (1.97 in) and an inner
diameter of approximately 28
±
0.5 mm (1.10
±
0.02 in).
Drive coupling installation
1. Install:
• Drive coupling
1
NOTE:
While holding the drive shaft
2
with the rotor
holder
3
, tighten the drive coupling with the
coupler wrench
4
.
2. Install:
• Reduction drive gear housing
Coupler wrench:
YW-06551/90890-06551
Universal magneto and rotor
holder:
YU-01235
Rotor holder:
90890-01235
1
4
2
3
