Yamaha WaveRunner - Hoses

8-33
E
HULL
HOOD
HOSES
HOSES

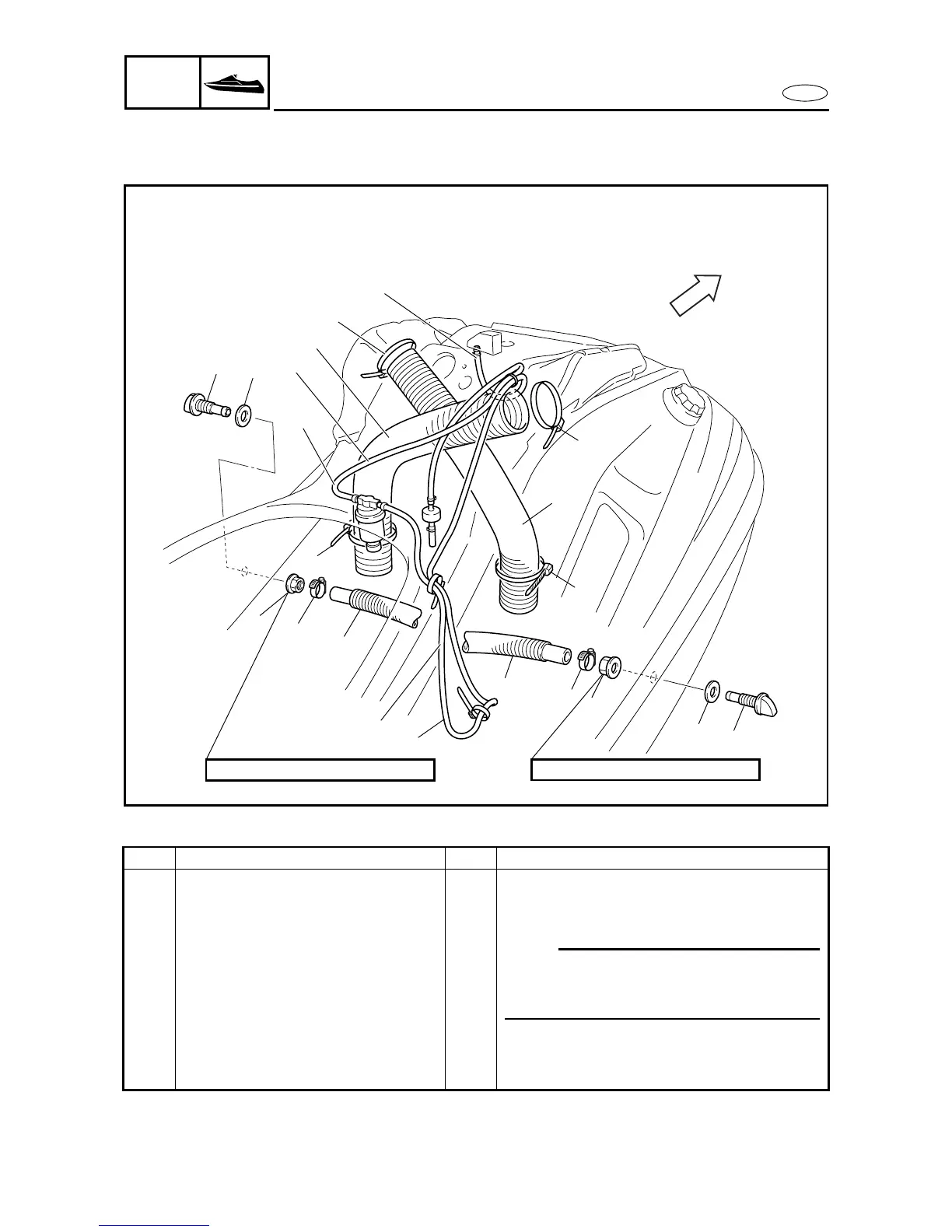

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
HOSES REMOVAL
Follow the left “Step” for removal.
Fuel tank Refer to “FUEL TANK AND FUEL PUMP
MODULE” in Chapter 4.
NOTE:
When removing the ventilation hose and
fuel tank breather hose, it is not necessary
to remove the fuel tank.
1 Band 4
2 Ventilation hose 2
3 Fuel tank breather hose 2
(VENT)
(VENT)
(VENT)
1
2
1
2
7
8
1
6
4
5
3
5
4
6
8
7
FWD
4.2 N • m (0.42 kgf • m, 3.0 ft • Ib)
4.2 N • m (0.42 kgf • m, 3.0 ft • Ib)
1
3
