98
E
HULL
HOOD
FRONT HOOD
SERVICE POINTS

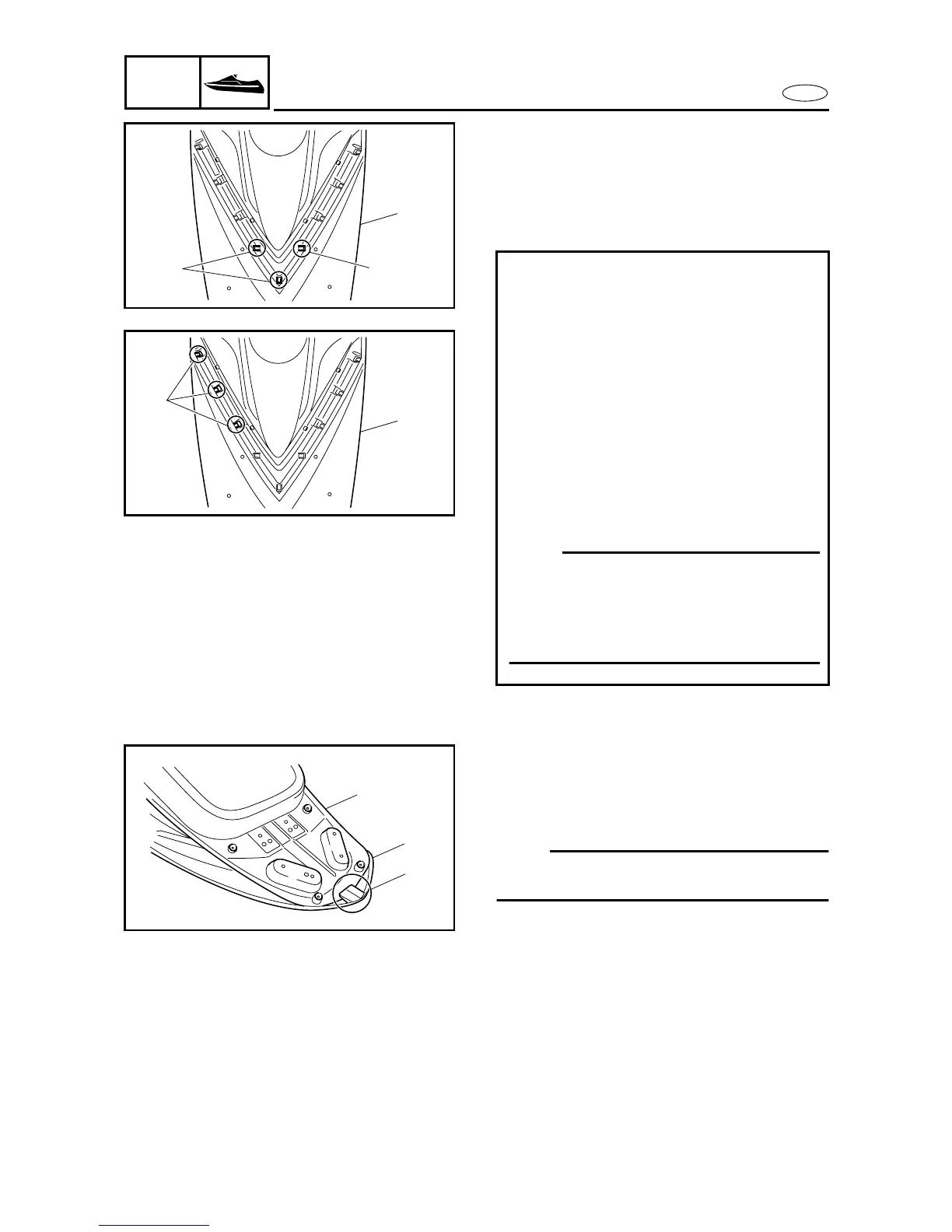

Ornament disassembly
1. Disassembly:
• Center ornament
• Left ornament
• Right ornament
Removal steps:
• From the bottom side of the front hood
1
, push the projections
2
on the center
ornament shown in the illustration and
remove the ornament from the double-
sided tape.
• From the bottom side of the front hood
1
, push the projections
3
on the left
ornament shown in the illustration and
remove the ornament from the double-
sided tape.
• Remove the right ornament in the same
way as the left ornament.
NOTE:
• When removing the ornaments, be sure to
remove the center ornament first.
• Be careful not to break the front hood pro-
jections and ornament projections when
removing the ornaments.
2
2
1
3
1
Front hood assembly
1. Install:
• Front hood
1
• Front hood
2
NOTE:
Fit the end of the front hood
1
under the pro-
jection
3
on the front hood
2
.
1
2
3
To Next Page
