VALVES AND VALVE SPRINGS

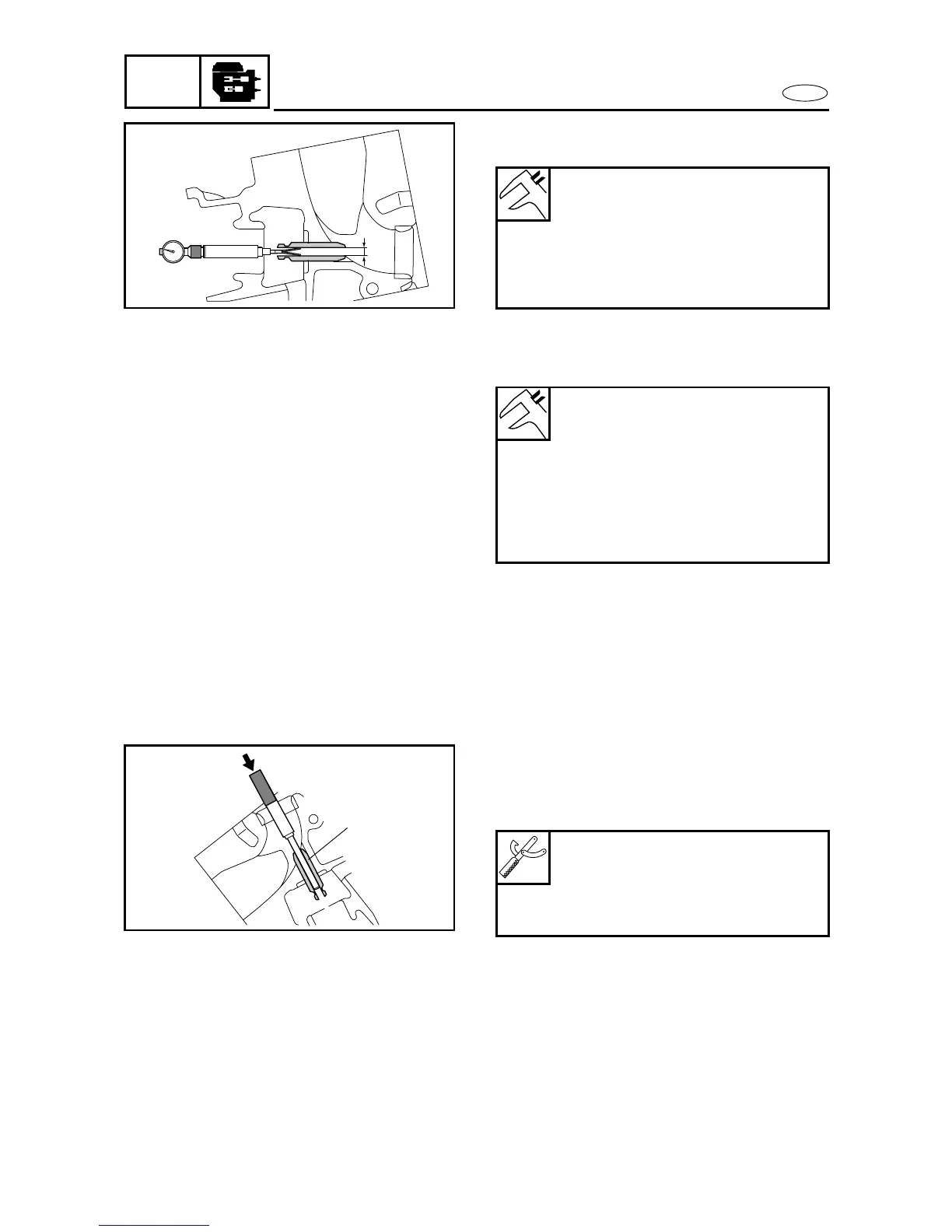

1. Measure:
• Valve guide inside diameter
a
2. Calculate the valve stem-to-valve guide
clearance as follows. Replace the valve
guide if out of specification.
Valve guide inside diameter:
Intake:
4.000–4.012 mm
(0.1575–0.1580 in)
Exhaust:
4.500–4.512 mm
(0.1772–0.1776 in)
Valve stem-to-valve guide
clearance = valve guide inside
diameter – valve stem diameter:
Intake:
0.010–0.037 mm
(0.0004–0.0015 in)
Exhaust:
0.020–0.047 mm
(0.0008–0.0019 in)
a
Valve guide replacement
1. Remove the valve guide
1
by striking the
special service tool from the combustion
chamber side.
Valve guide remover:
Intake (ø4.0 mm):
YM-04111/90890-04111
Exhaust (ø4.5 mm):
YM-04116/90890-04116
1
